ADSS Fittings Universal Pole Bracket/Attachment UPB

Fibre Optics
Availability:

7 in stock


  • Cable unrolling on pulley
  • Stay wire
  • Cross-arm fastening
  • Customer connection
  • Cable dead-ending
  • Double anchoring
  • Triple anchoring
  • Angled passageway



SKU: UPB

KSh 300.00 KSh 400.00

7 in stock

Detailed Images:

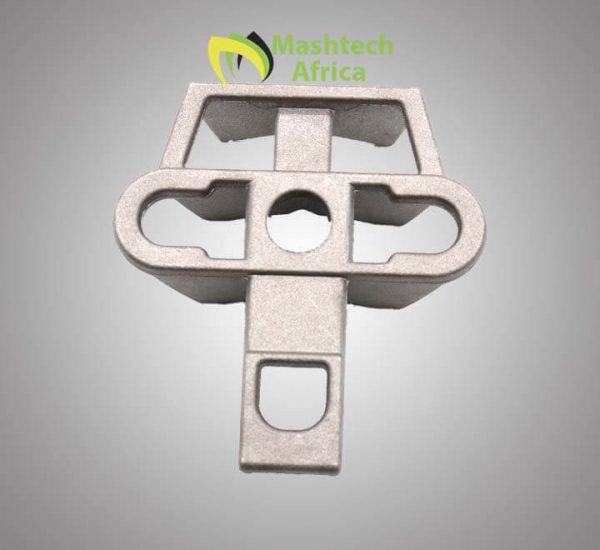

The UPB bracket is manufactured from aluminum alloy with correspondingly high mechanical strength. Its unique  patented design has been developed to propose a universal fitting covering all installation situations on wooden, metal or concrete poles.

Model Materials Working Load Weight
UPB Aluminum Alloy 5000N 0.2kg

Application:

With steel bands

The UPB bracket can be installed on any type of pole – drilled or undrilled – with two 20×0.7 mm stainless steel bands plus two buckles . Usually allow two bands of one meter each per bracket.

With bolts

If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16 mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness).

Brands

Fibre Optics

  • Product specifications

    UPB universal pole bracket is made of aluminum alloy and provides for high mechanical resistance. Its unique patented design offers an universal fitting covering all installation situations on wooden, metal or concrete poles.

    • Cable unrolling on pulley
    • Stay wire
    • Cross-arm fastening
    • Customer connection
    • Cable dead-ending
    • Double anchoring
    • Triple anchoring
    • Angled passageway
