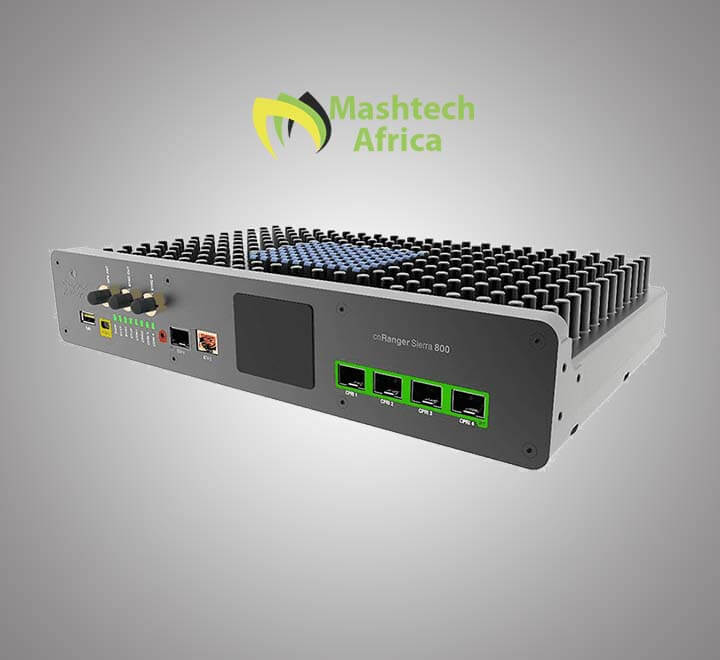

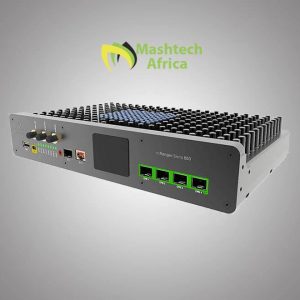

Cambium cnRanger 800 Baseband Unit (BBU)

Cambium Networks
Availability:

7 in stock


  • cnRanger Sierra 800 2.5GHz Baseband Unit Band 41 LTE
  • The cnRanger™ Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.

SKU: LTE-BBU-800

The cnRanger™ 800 BBU is an 8TX/8RX indoor (or cabinet installation) unit designed for installation at the base of cnRanger LTE sites. Along with CPRI (SFP+/Fiber) ports for each of the remote radio heads (up to 4), the BBU provides network Ethernet connectivity via copper or fiber interfaces as well as input for GPS receiver. The BBU is fully manageable via GUI interface as well as Cambium’s cnMaestro network management system. The BBU also houses the fully virtualized, embedded evolved packet core (EPC), negating the need to connect to an outside core.  Operators with existing access to an external core have the option to bypass the integrated core to utilize their existing EPC. Each BBU kit includes rack ears for standard 19” rack mount.

Features:

  • Simplified LTE with a Virtualized, Embedded core
  • LTE Optimized for Fixed Wireless Broadband
  • Zero touch configuration automatically recognizes and provisions elements on contact while prohibiting unauthorized devices
  • Avoid cost and complexity of the Evolved Packet Core (EPC). Eliminate dependency on cloud communication, provision infrastructure in minutes
Brands

Cambium Networks

Specifications LTE-BBU-800

INTERFACE
Model Name Sierra 800
Model Numbers LTE-BBU-800
RRH Interface Four SFP+ / CPRI v7.0
Ethernet Interface (Copper) 10/100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
Ethernet Interface (Optical) 1000Base-SX
Channel Spacing Configurable on 1 MHz increments
Frequency Range 2300 – 2700 MHz, Bands 38, 40, 41, software upgradeable to any TD-LTE band
Channel Width 5 MHz, 10Hz, 15 MHz, 20 MHz
Console Interface Mini USB Seriel
Display Interface 1.77 inch LCD Display
Protocols Used IPv4, UDP, TCP, IPv4, ICMP
Network Management HTTP, HTTPS, SSH, cnMaestro
MTU 1500 bytes
Encryption AES-128 and SNOW 3G
Performance
Subscriber per Sector 64(software upgradeable to 256)
PPS TBD
HARQ Yes
Maximum Deployment Range 32 km (20 mi)
Latency <30 ms typical
Throughput Config 1: 68 Mbps DL / 20 Mbps UL
Config 3: 95 Mbps DL/13 Mbps UL
GPS Synchronization On-board GPS and GPS antenna via SMA connector, 1PPS Synch IN via SMA connector, 1PPS SYNC OUT via SMA connector
Quality of Service QCI; DSCP classification
Physical
Surge Suppression Ethernet EN61000-4-5: 8us/20us, 2kW voltage waveform
DC Power Port EN61000-4-5: 10us/700us, 2kV vK voltage waveform
Temperature / Humidity -40°C to +60°C (-40°F to +140°F), 5-95% non-condensing
Weight 3.2Kg (7.1 lbs)
Dimensions (including mount) (WxHxD) 13″ (W) x 2 3/8″ (H) x 9″ (D) (330 mm x 60 mm x 229 mm)
Power Consumption 90 W nominal, 120 W peak
Recommended Power Supply P/N N000000L129A – SP Power 120 W PSU
Input Voltage ± 48V DC (36V to 60V)
Other
LTE Standard for EPC and eNB 3GPP Release 10, software upgradeable through release 13*
LTE Configurations Supported 1 and 3
Evolved Packet Core Fully embedded, virtualized EPC
Layer 2 Support Bridge Mode
Carrier Aggregation 2 Component Carrier
Frequency Re-Use N=1
