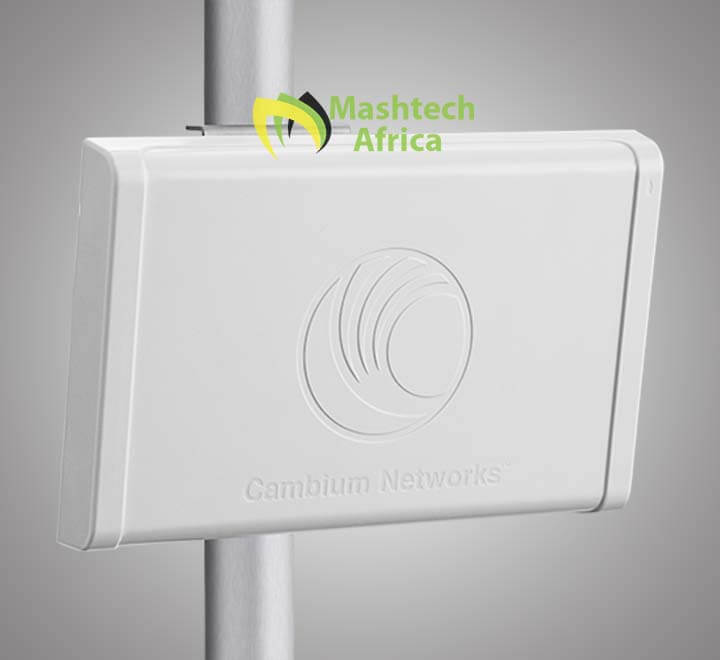

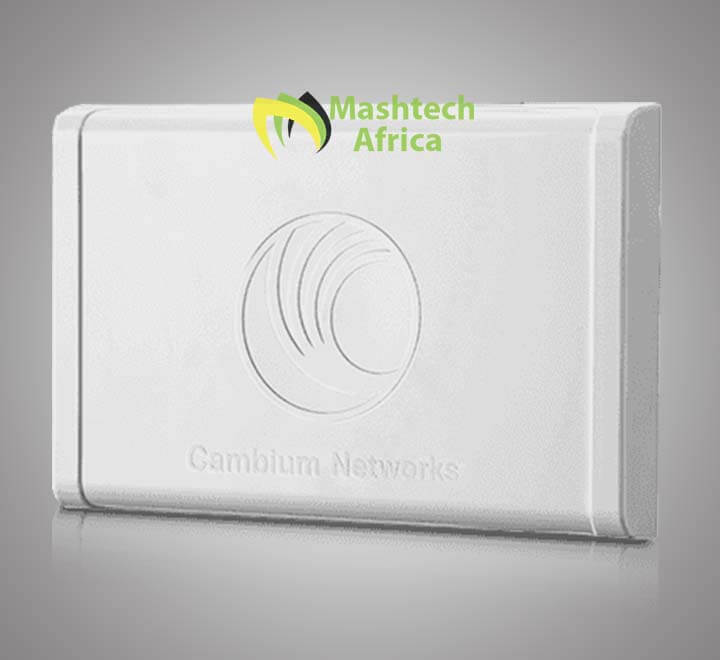

Cambium ePMP 2000 Smart Antenna

Cambium Networks
Availability:

8 in stock


  • 5 GHz Beam Forming Antenna
  • ePMP has set the standard for high performance, scalability, and reliability in harsh interference environments all at a compelling price. ePMP 2000 is the next generation Access Point bringing interference tolerance to a whole new level with unique Hypure technology which combines Intelligent Filtering and Smart Beamforming to deliver new levels of performance in the face of interference.
  • The ePMP 2000 System consists of a high-performance, GPS Synchronized Access Point Radio with Intelligent Filtering, a new compact high-performance Sector Antenna, and an optional Smart Antenna.
  • Intelligent Filtering improves both receive and transmit performance. It protects the network from off-channel interferers with a filter that dynamically moves around the channel. On the transmit side, it protects the RF environment by reducing off-channel transmission noise.

SKU: C050900D020A

KSh 44,000.00 KSh 45,000.00

8 in stock

KSh 82,500.00 for 2 item(s)

The ePMP™ Smart Antenna enables Smart Beamforming. A part of the innovative Hypure technology powering ePMP 2000 and 3000 designed from the ground up to help real-world networks overcome powerful interference and maintain excellent performance.

Smart Beamforming drastically reduces the effects of on-channel interference. The System learns the locations of each served Subscriber Module and forms a narrow beam towards the desired Subscriber Module while that radio is transmitting in the uplink. This reduces the gain on the uplink for on-channel interferers that are transmitting at an azimuth angle different than the Subscriber Module, delivering performance gains never before seen.

Key Advantage:

  • Eliminate Uplink Interference: Smart Beamforming delivers dramatic performance improvements when dealing with strong co-channel uplink interference, maximizing network performance.
  • Consistent Performance in High Interference: By mitigating significant sources of interference, packet loss and retransmissions are kept to a minimum, keeping your network applications working at their best.
  • Improvement in Uplink and Downlink Performance: By eliminating packet loss and retransmissions resulting from cochannel uplink interference, TCP retransmissions are greatly reduced. Other applications also show significant performance benefits.
Brands

Cambium Networks

Specifications:

ePMP 2000 Smart Antenna Specifications
Compatibility ePMP 2000 Access Point only
Spectrum
Channel Spacing 5150 – 5970 MHz (exact frequencies as allowed by local regulations)
Physical
Connectors to Access Point 2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna)
Mounting Hardware Included for mounting to ePMP 5 GHz Sector Antenna (C050900D021A) Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm) Up to +10 degree tilt
Physical Dimensions 13.1″ (L) x 8.4″ (W) x 1.8” (H) (33.3 cm x 21.3 cm x 4.6 cm)
Without Mounting Brackets
Weight 3.2 lbs. (1.5 kg)
Without Mounting Brackets
Environmental IP65
Radome Material UV Protected ABS
Operating Temperature -30° C to +55°C (-22° F to +131°F)
Power Consumption 2.5 W1 (provided by ePMP 2000 Access Point)
Environmental Cover Included Yes
Wind Loading Operational at ≤ 145km/hr, Survival at ≤ 209km/hr

ePMP 2000 Solutions:

So long, interference

Cambium Networks’ ePMP 2000 takes interferencetolerant, high performance, and reliable wireless broadband to a new level with innovative technology and proven, deployed-worldwide equipment, keeping you and your customers happy for an affordable price.

ePMP 2000 is built from the ground up to provide high performance, reliably, in real-world interference-heavy environments. Powered by innovative Hypure™ technology, ePMP 2000 incorporates Smart Beamforming and Intelligent Filtering to help you deliver the services your customers expect in the face of heavy interference.

With the feature-rich ePMP foundation including frequency reuse enabled by GPS Synchronization, eFortify, 120 active subscribers per access point and 200+ Mbps of real-world achievable throughput, ePMP 2000 is designed, built and tested to reliably connect people, places, and things.

Example Use Cases

Wireless Service Providers (WISPs)

  • Rural connectivity
  • Municipal connectivity
  • Enterprise and campus connectivity

Enterprise

  • Wireless video surveillance networks
  • Industrial and mining applications
  • LAN extension

End-to-End Performance

ePMP encompasses a comprehensive range of subscriber modules, access points, and sector antennas to make sure your network performs at its best, from end-to-end.

Top Line Specifications

  • Reliable, consistent performance in real-world conditions
  • 5, 10, 20, and 40 MHz channel bandwidths
  • 200+ Mbps of real-world throughput
  • Up to 120 active subscribers per access point
  • Secure over-the-air communications (128-bit AES encryption)
  • Industry leading frequency reuse via GPS Synchronization
  • Configurable QoS for voice, video, and data
  • Up to 64km deployment range
  • Point-to-point and point-to-multipoint options (software configurable)
  • End-to-end cloud management with cnMaestro™
