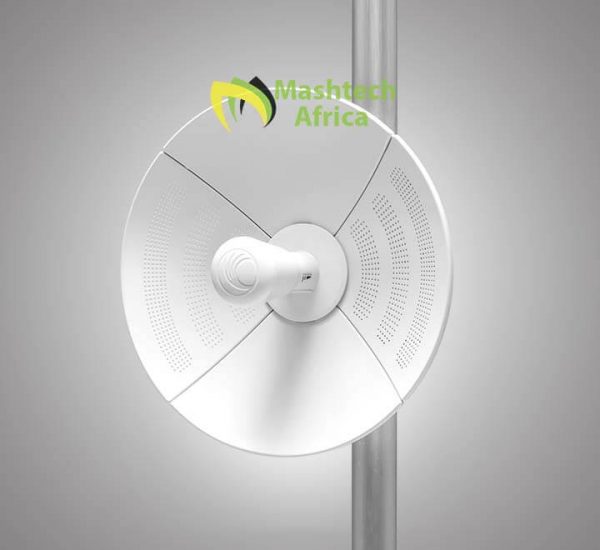

Cambium ePMP Force 180 Integrated Radio

Availability:

6 in stock


  • The ePMP Force 180 is the second generation of ePMP Integrated Radio Modules. It has the exceptional reliability and quality that users have come to expect from the ePMP Product line and adds some significant performance enhancements.
  • This radio comes in a small, sleek form factor but delivers high performance. The antenna gain is increased by 3dB to 16 dBi which will provide a 40% increase in range. It comes equipped with a Gigabit Ethernet port so that nothing will limit this product in delivering the maximum throughput. The radio module is powered by PoE and the Ethernet port has the unique capability of being powered from a PoE injector that conforms to standard pinouts or from a PoE injector that conforms to Cambium pinouts. This makes it possible to upgrade existing radio locations to Force 180 without changing the PoE injector. It also includes an adjustable mounting bracket that eases the task of installing and properly aligning the radio.

SKU: C050900C073A

KSh 11,000.00 KSh 12,000.00

6 in stock

KSh 25,000.00 for 2 item(s)

Cambium Networks has deployed more than five million radios around the world achieving unparalleled degrees of scalability. Continuing the tradition of designing and manufacturing industry-leading antenna solutions, the 4×4 ePMP 3000 Sector Antenna encompasses all the key diff orientations of the Cambium Antenna line and adds 4X4 Multi-User MIMO Capability. Designed to work in 5 GHz spectrum and 90-degree coverage, the antenna is an integral part of the ePMP 3000 Access Point and allows for Multi-User MIMO Operation.

Frequency Re-use: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has a minimum 30 dB front-to-back ratio over a wide rear-facing aperture.

Channel Flexibility: Consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance.

Consistent Coverage: Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector.

Designed for the Installer: Small, compact design, integrated ePMP radio mount, and GPS antenna integration.

Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth.

All the unique advantages of ePMP software such as eFortify and eCommand are available with the Force 180. eFortify enhances the performance of the ePMP 1000 in high noise environments. eCommand provides a suite of management features and tools to assist network operators in planning, provisioning, and monitoring of their network. The ePMP Force 180 Integrated Radio is a compact and powerful platform that can operate as an Access Point, Subscriber Module or PTP radio.

Main Differentiators:

  • Growth and Scalability – The ePMP 1000 delivers high capacity and reliable connectivity right from the start. As a provider’s business grows, it can expand its network while ensuring resiliency and increasing profitability.
  • Quality of Service (QOS) allows you to confidently offer triple play services –VoIP (Voice over IP), video and data. Providing your customers with excellent service quality ensures their continued loyalty and transforms them into advocates, helping WISPs and enterprises expand their business.
  • Proven Reliability has created an unsurpassed connectivity standard in many industries that depend on fixed wireless broadband. Our products undergo rigorous testing and are made from high-quality components.

Powerful Features:

  • The Cambium Networks ePMP Force 180 delivers provides more than 200 Mbps of the real user throughput. Using 2×2 MIMO-OFDM technologies, ePMP deployments achieve industry-leading data rates.
  • The ePMP Force 180 Integrated Radio can be configured as a Subscriber Module, an unsynchronized Access Point or a Backhaul radio. This radio will function as a client (slave) to an ePMP GPS Synchronized Radio in either a PMP or PTP deployment forming a GPS Synchronized solution.

Specifications:



ePMP Force 180 Specifications
Spectrum
Channel Spacing Configurable on 5 MHz increments
Frequency Range 5 GHz 4910 – 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width 5 | 10 | 20 | 40 MHz
Interface
MAC (Media Access Control) Layer Cambium proprietary
Physical Layer 2×2 MIMO/OFDM
Ethernet Interface 10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ =7&8,Return=4&5) and Standard PoE pinouts (V+ =4&5,Return=7&8)
Protocols Used IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
Performance
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of Service Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Link Budget
Transmit Power Range -17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Integrated Antenna Peak Gain 16 dBi
Maximum Transmit Power 30 dBm combine d (subject to regional regulator y restrictions)
Physical
Antenna Connection Integrated antenna
Surge Suppression 2 Joule Integrated
Environmental IP55
Temperature -30°C to +60°C (-22°F to +140°F)
Wind Survival 145 km/hour (90 mi/hour ) with antenna
Weight 0.50 kg (1.1 lb.) (includes mounting bracket)
Dimensions (H x W x D) 12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached
Pole Diameter Range 1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption 10 W Maximum, 5 W Typical
Input Voltage 10 to 30 V
Security
Encryption 128-bit AES (CCMP mode)
Certifications
FCCID Z8H89FT0015
Industry Canada Cert 109W-0015
CE 5 GHz EN 302 502 v1.2.1
5 GHz: EN 301 893 v1.7.1

Parameter

  • Frequency Range: 4910 – 5970 MHz
  • Antenna Type: Integrated
  • Typical Gain: 16 dBi
  • 3db Beamwidth-Azimuth: 15°
  • 3db Beamwidth-Elevation: 30°
  • Polarisation(s): Dual Linear, H/ V
  • Front-to-Back Isolation: >20 dB
  • Cross Polarisation: 15 dB
