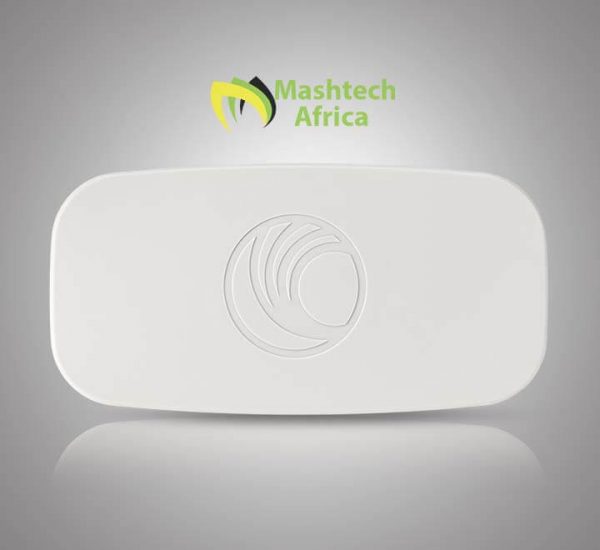

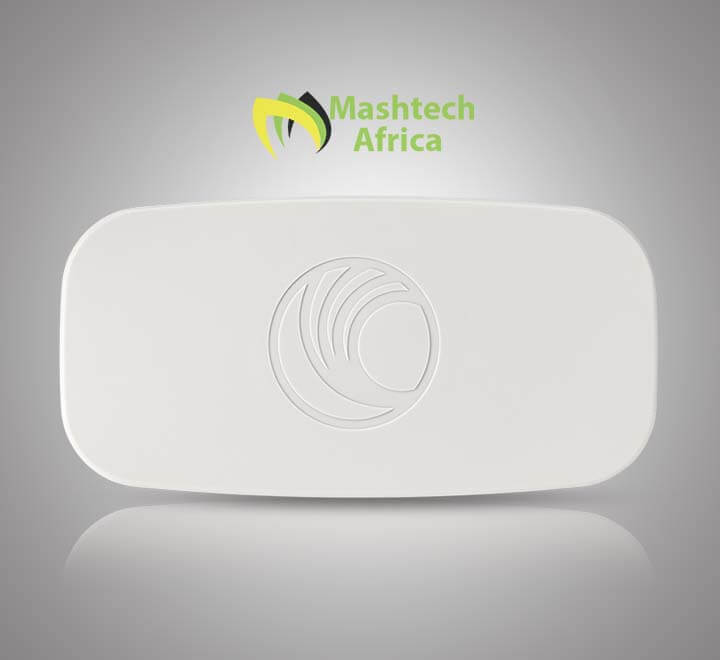

Cambium ePMP Force 190 Subscriber Module

Cambium Networks
Availability:

7 in stock


  • 5 GHz Subscriber Module
  • Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
  • The Force 190 provides up to 200 Mbps throughput and low latency with a high gain antenna in a compact design.

SKU: C058900C082A

KSh 14,000.00 KSh 15,000.00

7 in stock

KSh 25,000.00 for 2 item(s)

Features:

  • Cambium Networks ePMP Force 190 will lower the logistical cost of ownership by reducing shipping costs with its highly compact packaging.
  • The ePMP Force 190 is designed to operate in high interference environments and provides throughput of up to 200Mbps with bi-directional traffic of real user data.
  • Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.
  • QoS management offers an outstanding quality for triple play services – VoIP, video, and data and provides three levels of traffic priority.
  • The long deployment range is enabled by a high gain antenna combined with 27dBm of transmit power.
  • This platform is for the user base that wants a smaller on-premises footprint while enabling high gain.
  • Install is a breeze with the easy-to-install mount, capable of pole and wall mounting.

    ePMP 2000 Solutions:

    So long, interference

    Cambium Networks’ ePMP 2000 takes interferencetolerant, high performance, and reliable wireless broadband to a new level with innovative technology and proven, deployed-worldwide equipment, keeping you and your customers happy for an affordable price.

    ePMP 2000 is built from the ground up to provide high performance, reliably, in real-world interference-heavy environments. Powered by innovative Hypure™ technology, ePMP 2000 incorporates Smart Beamforming and Intelligent Filtering to help you deliver the services your customers expect in the face of heavy interference.

    With the feature-rich ePMP foundation including frequency reuse enabled by GPS Synchronization, eFortify, 120 active subscribers per access point and 200+ Mbps of real-world achievable throughput, ePMP 2000 is designed, built and tested to reliably connect people, places, and things.

    Example Use Cases

    Wireless Service Providers (WISPs)

    • Rural connectivity
    • Municipal connectivity
    • Enterprise and campus connectivity

    Enterprise

    • Wireless video surveillance networks
    • Industrial and mining applications
    • LAN extension

    End-to-End Performance

    ePMP encompasses a comprehensive range of subscriber modules, access points, and sector antennas to make sure your network performs at its best, from end-to-end.

Brands

Cambium Networks

Specifications:

ePMP Force 190 Specifications
Spectrum
Channel Spacing Configurable on 5 MHz increments
Frequency Range 4910 – 5970 MHz, 4.9 only for ROW
Channel Width 5 | 10 | 20 | 40 MHz
Interface
MAC (Media Access Control) Layer Cambium proprietary
Physical Layer 2×2 MIMO/OFDM
Ethernet Interface 10/100 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
Performance
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS15 (64QAM 5/6)
GPS Synchronization Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range -15 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna Gain 22dBi
Physical
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -30°C to +50°C (-22°F to +122°F)
Wind Survival 125 km/hour (78 mi/hour)
Weight 1.0 kg (2.2 lbs)
Dimensions (Dia x Depth) 35 cm x 28 cm (13.5 in x 11.2 in)
Pole Diameter Range 3.8 cm – 6.4 cm (1.5 in – 2.5 in)
Power Consumption 8 W Maximum, 5 W Typical
Input Voltage 12 to 30 V
Security
Encryption 128-bit AES (CCMP mode)
Certifications
FCCID Z8H80FT0031
Industry Canada Cert 109W-0031
CE 5 GHz EN 302 502 v1.2.1
5 GHz: EN 301 893 v1.7.1
