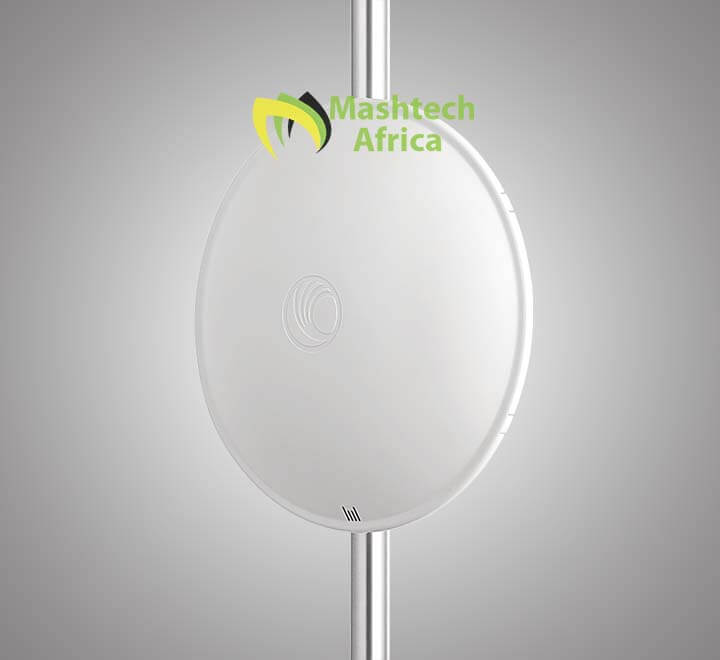

Cambium ePMP Force 200 AR5-25 High Gain Radio 5 GHz

Cambium Networks
Availability:

8 in stock


  • 5 GHz AR5-25 High Gain Radio
  • Designed to operate in high interference environments
  • Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
  • Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high-performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 and 5 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.

SKU: C058900C062A

KSh 17,000.00 KSh 18,000.00

8 in stock

KSh 37,000.00 for 2 item(s)

Wireless service providers and enterprises Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments. Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high-performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 and 5 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.

FEATURES:

• Cambium Networks’ ePMP Force 200 is designed to operate in high interference environments and provides superior throughput of over 200 Mbps of real user data.
• Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.
• QoS management offers an outstanding quality for triple play services – VoIP, video and data and provides three levels of traffic priority.
• Long deployment range is enabled by a high gain antenna combined with 30 dBm of transmit power.
• This platform can be configured as a Subscriber Module or a high gain PTP radio.

Brands

Cambium Networks

Specifications:

ePMP Force 190 Specifications
Spectrum
Channel Spacing Configurable on 5 MHz increments
Frequency Range 4910 – 5970 MHz, 4.9 only for ROW
Channel Width 5 | 10 | 20 | 40 MHz
Interface
MAC (Media Access Control) Layer Cambium proprietary
Physical Layer 2×2 MIMO/OFDM
Ethernet Interface 10/100 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
Performance
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS15 (64QAM 5/6)
GPS Synchronization Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range -15 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna Gain 22dBi
Physical
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -30°C to +50°C (-22°F to +122°F)
Wind Survival 125 km/hour (78 mi/hour)
Weight 1.0 kg (2.2 lbs)
Dimensions (Dia x Depth) 35 cm x 28 cm (13.5 in x 11.2 in)
Pole Diameter Range 3.8 cm – 6.4 cm (1.5 in – 2.5 in)
Power Consumption 8 W Maximum, 5 W Typical
Input Voltage 12 to 30 V
Security
Encryption 128-bit AES (CCMP mode)
Certifications
FCCID Z8H80FT0031
Industry Canada Cert 109W-0031
CE 5 GHz EN 302 502 v1.2.1
5 GHz: EN 301 893 v1.7.1
