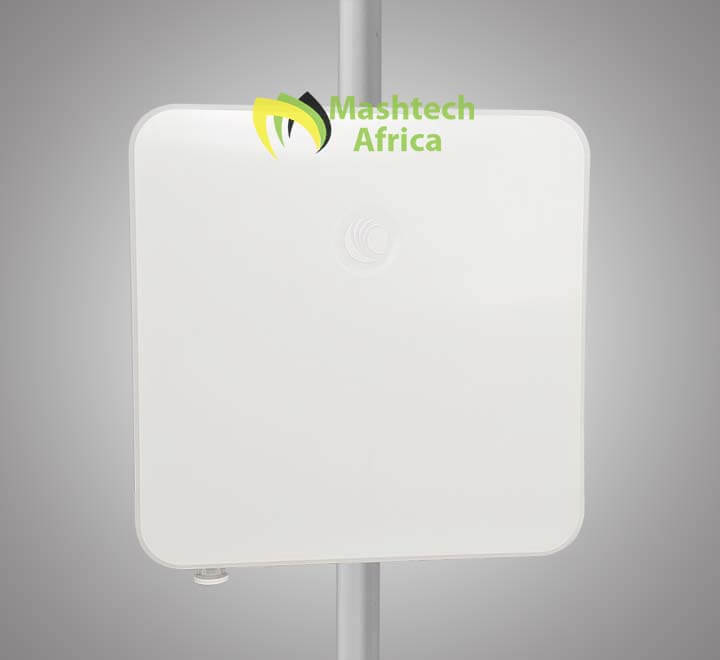

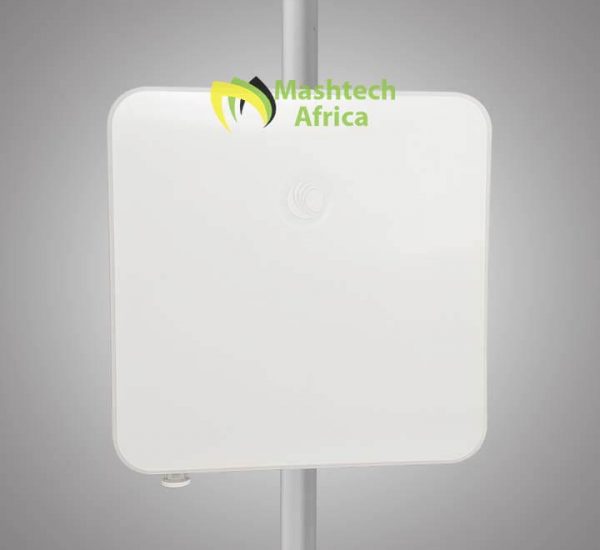

Cambium ePMP Force 300-19

Cambium Networks
Availability:

8 in stock


  • 5GHz 19dBi Subscriber Module
  • Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density deployments. Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments.
  • The ePMP Force 300-19 is designed to operate in high interference environments and provides superior throughput up to 600 Mbps of real user data and supports channel sizes from 20 MHz up to 80 MHz and modulations up to 256QAM.

SKU: C050900C802A

KSh 20,000.00 KSh 21,000.00

8 in stock

KSh 38,000.00 for 2 item(s)

The Cambium C050900C802A provides enterprises around the globe the ability to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Cambium C050900C802A Key Features

  • Designed to operate in high interference environments
  • Provides superior throughput of over 600 Mbps of real user data
  • Supports channel sizes from 20MHz up to 80MHz and modulations up to 256QAM
  • Supports real time spectrum monitoring without degradation in throughput
  • Robust adaptivity to both symmetrical and asymmetrical traffic
  • High performance and round-trip latency as low as 3 – 5 ms
  • QoS management
  • VoIP, video and data and provides three levels of traffic priority
  • Integrated 19 dBi panel antenna provides excellent range
  • Quick and reliable installation
  • Capable of pole and wall mounting

Combining the latest 802.11ac Wave 2 technology and the field proven scalable performance of ePMP, the Force 300-19 delivers up to 600 Mbps of capacity. The Force 300-19 is a powerful yet affordable subscriber module compatible with the ePMP3000 Access Point and using the forward compatibility features also interoperates with the ePMP 2000 to ease the migration into the 802.11ac Wave 2 technology. The Force 300-19 has a 19 dBi integrated antenna with a narrow beamwidth and reliable IP67 mechanics.

Brands

Cambium Networks

SPECIFICATION

Frequency 5GHz
Operating Frequency Wide Band Operation 4910 – 5970 MHz
Dimensions 27.8 x 27.8 x 4.5 cm (10.9 x 10.9 x 1.8 in) without mounting bracket
Interfaces 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Antennas 19 dbi Integrated Antenna
Operating Temperature -30°C to +60°C (-22°F to +140°F)
Max. TX Power 0 to +28 dBm (combined up to the regioanl EIRP limit) (1 dB interval)
Encryption 128-bit AES (CCMP mode)

Cambium C050900C802A – Technical Specifications

Spectrum

  • Channel Spacing: Configurable in 5 MHz increments
  • Frequency Range: Wide Band Operation 4910 – 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
  • Channel Width: 20 / 40 / 80

Interface

  • MAC (Media Access Control) Layer: Cambium
  • Proprietary Physical Layer: 802.11ac Wave 2 (2×2 MIMO/OFDM)
  • Ethernet Interface: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
  • Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
  • Network Management: IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
  • VLAN: 802.1Q with 802.1p priority

Performance

  • ARQ: Yes
  • Nominal Receive Sensitivity (w/FEC) @20 MHz Channel: MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -68 dBm (per chain)
  • Nominal Receive Sensitivity (w/FEC) @40 MHz Channel: MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -66 dBm (per chain)
  • Nominal Receive Sensitivity (w/FEC) @80 MHz Channel: MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -61 dBm (per chain)
  • Modulation Levels (Adaptive): MCS0(BPSK) to MCS9 (256 QAM-5/6)
  • Transmit Power Range: 0 to +28 dBm (combined up to the regioanl EIRP limit) (1 dB interval)

Physical

  • Surge Suppression: 1 Joule Integrated (C000000L065A – 30V Gigabit surge suppressor is recommended for optimum protection)
  • Environmental: IP55
  • Temperature: -30°C to +60°C (-22°F to +140°F)
  • Weight: 1.45 kg (3.2 lbs.) (includes mounting bracket)
  • Wind Survival: 180 km/hour (112 mi/hour)
  • Dimensions (Dia x Depth): 27.8 x 27.8 x 4.5 cm (10.9 x 10.9 x 1.8 in) without mounting bracket
  • Pole Diameter Range: 1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp
  • Power Consumption: 12 Watts
  • Input Voltage: Passive POE (30 VDC Nominal); 14-30 VDC range

Security

  • Encryption: 128-bit AES (CCMP mode)

Certifications

  • FCCID: Z8H89FT0048
  • Industry Canada Cert: 109W-0048
  • CE: EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)

5 GHZ Antenna Specifications

  • Frequency Range: 4.9 – 5.970 MHz
  • Antenna Type: Panel
  • Peak Gain: 19 dBi
  • 3dB Beamwidth-Azimuth: 14.5 degrees
  • 3dB Beamwidth-Elevation: 12.5 degrees
