Cambium ePMP Force 300-25

Cambium Networks
Availability:

8 in stock


  • High-Gain 802.11AC Wave 2 Solution – 500+ Mbps Peak Throughput
  • Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
  • Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field-proven TDD MAC of ePMP, the Force 300‐25 offers a compelling yet affordable point-to-point product and a future high gain subscriber module for the ePMP3000 Access Point.

SKU: C058910C102A

KSh 21,000.00 KSh 22,000.00

8 in stock

KSh 41,000.00 for 2 item(s)

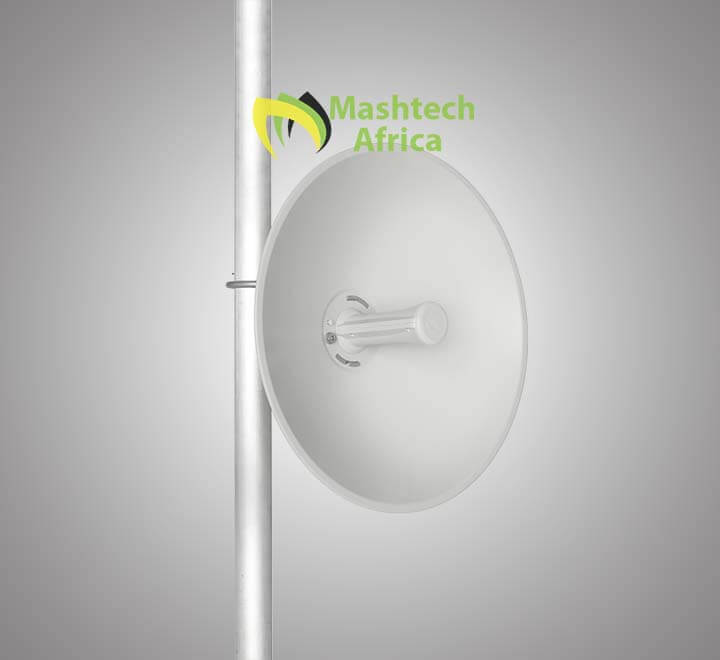

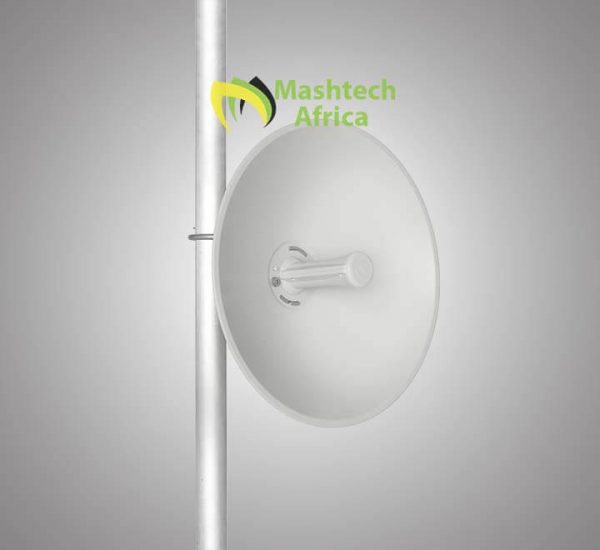

Force 300‐25 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300‐25 also supports an always-on spectrum analyzer and local WiFi management to take advantage of mobile installation applications.

Features:

  • Cambium Networks’ ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
  • The High-gain ePMP Force 300-25 802.11AC Wave 2 solution provides 500+ Mbps peak throughput and always-on spectrum analysis.
  • The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
  • The Force 300-25 supports a local Wi-Fi connection to allow easy installation, configuration, and monitoring from any Wi-Fi enabled device.
  • The ePMP Force 300-25 supports constant monitoring of the radio spectrum and allows for live action without bringing down the radio.
  • Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
  • QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.
Brands

Cambium Networks

Specifications:

ePMP Force 300-25 Specifications
Spectrum
Channel Spacing Configurable on 5 MHz increments
Frequency Range Wide Band Operation 5.150 – 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width 20 | 40 | 80 MHz
Interface
MAC (Media Access Control) Layer Cambium proprietary and optionally standard 802.11ac
Physical Layer 2×2 MIMO/OFDM
Ethernet Interface 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv6/IPv4 Management, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
Performance
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -87 dBm to MCS8 (256 QAM-3/4) = -63 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -85 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80MHz Channel MCS0 = -82 dBm to MCS9 (256QAM-5/6) = -56 dBm (per chain)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS9 (256QAM 5/6)
GPS Synchronization Yes, via internal GPS or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
Transmit Power Range 0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)
Physical
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -22°F to +140°F (-30°C to +60°C)
Wind Survival 180 km/hour (112 mi/hour)
Weight 2.4 kg (5.3 lbs)
Dimensions (Dia x Depth) 47 cm x 31 cm (18.5 in x 12.2 in)
Pole Diameter Range 6.4 cm – 7.6 cm (2.5 in – 3 in)
Power Consumption 12 Watts
Input Voltage 30 Volts
Security
Encryption 128-bit AES (CCMP mode)
Certifications
FCCID TBD
Industry Canada Cert TBD
CE TBD
