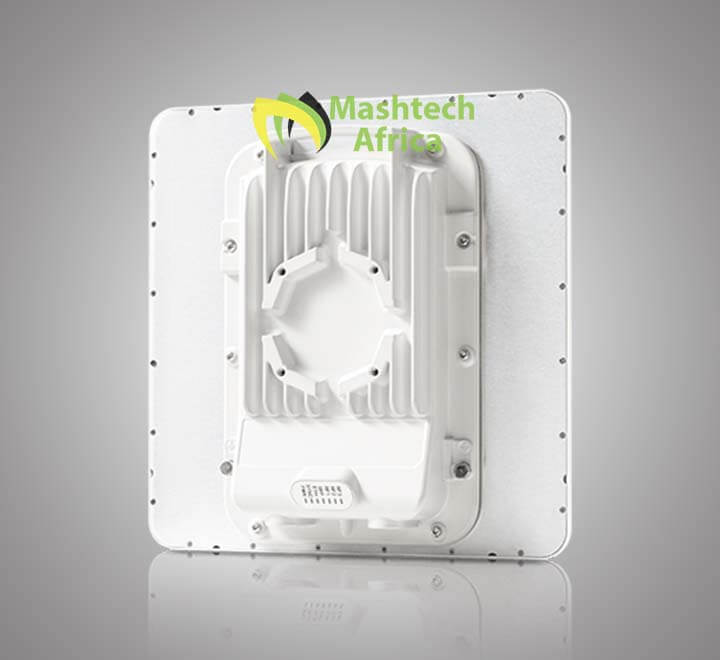

Cambium PTP 550 Integrated

Cambium Networks
Availability:

9 in stock


  • Point-to-Point Gigabit+ Capacity
  • PTP 550 is a Point to Point Gigabit throughput solution based on 802.11ac Wave 2 operating in 5 GHz wireless space, addressing the gigabit capacity needs for high-speed backhaul solutions in short-range and middle-range applications provides up to 1.36 Gbps throughput with ARQ and asymmetric non-contiguous channel aggregation across 5 GHz band.
  • The PTP 550, with its unmatched 1.36 Gbps performance, provides the highest throughput in a point-to-point configuration. The PTP 550 radio is ideal for quickly establishing high-capacity backhaul for any application ranging from video surveillance to ISP backhaul network traffic.

SKU: C050055H007A

KSh 83,500.00 KSh 85,000.00

9 in stock

PTP 550 is a Point to Point Gigabit throughput solution based on 802.11ac Wave 2 operating in 5 GHz wireless space, addressing the gigabit capacity needs for high-speed backhaul solutions in short-range and middle-range applications provides up to 1.36 Gbps throughput with ARQ and asymmetric non-contiguous channel aggregation across 5 GHz band. The PTP 550 solution draws its attributes from Cambium Networks’ Point to Point products such as PTP 650/670 and PTP 450i. Each PTP 550 radio is enclosed in a rugged IP66 / 67 rated metal enclosure, which protects the radio from extreme conditions and solar radiation.

5.15 – 5.9 GHz, 1.4 Gbps Throughput, TDD, 1 Gigabit Data port + power input, 1 x SFP port (single-mode / multimode fiber or copper Gigabit Ethernet), 20/40/80 MHz Channel BW, 256 QAM, ARQ, 27 dBm Tx power, integrated flat panel 23 dBi directional antenna, Asymmetric non-contiguous Channel Bonding, Dynamic Spectrum Optimization, Online Spectrum Analyzer, 3 Level QOS, AES 128 Encryption, AC power injector 56V / 30W, IP67 Rating, temperature range -40 ° C to + 60 ° C, 3-year warranty

Brands

Cambium Networks

Specifications

Product Specifications
• RF Bands: Wide-band operation 5.150 to 5.950 GHz (Allowable frequencies and bands are dictated by individual country regulations)
• Channel bandwidth: 2x 20/40/80 MHz
• Spectral Efficiency: 8.5 bps/Hz maximum
• Maximum Transmit Power: Up to 27dBm
• Range: 122 Miles
• Security: 128–bit AES Encryption
• Dust-water intrusion protection: IP66 and IP67
• Wind speed survival: 200mph
• Power consumption: 30W
Product Features
• 5.150 GHz to 5.850 GHz
• Targeted for 1.36 Gb/s with Channel Bonding
• Spectrum Analyzer
• SFP Port
• ARQ Protocol
• Adaptive Modulation: QPSK to 256 QAM
• Dynamic Spectrum Optimization (DSO) hardware ready
• Power Output & Antenna Gain: Up to 27 dBm @ BPSK, 23 dBm at 256 QAM; 23 dBi integrated flat panel
• TDD Sync capability
• cnMaestro™ support
• FIPS-197 128 bit AES encryption
Product Includes
1 x PTP 550 Radio
1 x AC Power
1 x Mounting Bracket
1 x Quick Installation Guide
1 x Line Cord
