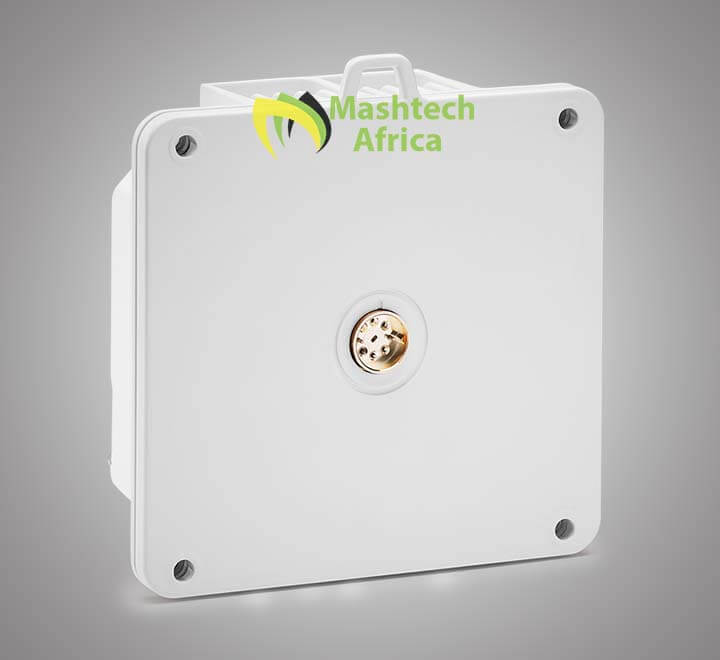

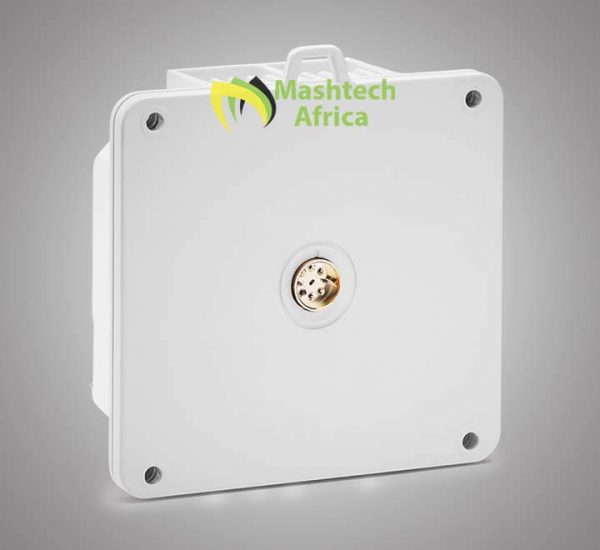

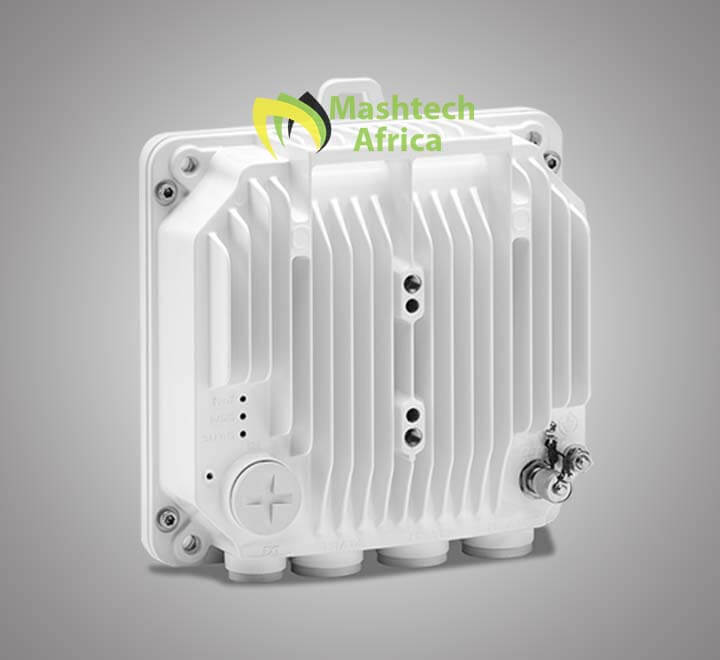

Cambium PTP 820E

Cambium Networks
Availability:

7 in stock


  • All outdoor, 71-86 GHz, up to 2.5 Gbps
  • Millimeter-Wave Radio
  • Low Visual w/ flat panel antenna (43dBi –class 2)
  • Multiband with PTP 820C and PTP 820S
  • High power -18dBm output power
  • BPSK-1024QAM ACM (channel BW dependent)
  • Channel BW: 62.5, 125, 250, 500MHz

SKU: C800082B006A

KSh 65,000.00

7 in stock

Features:

System Configurations

  • 1+0, 2+0 SP/DP (No XPIC)
  • HW ready –XPIC
  • Low Visual w/ flat panel antenna (43dBi –class 2)
  • Multiband with PTP 820C and PTP 820S

Hardware Options

  • “ESE” –Elec/SFP(Bidi)/Elec
  • “ESP” –Elec/SFP(Bidi)/SFP+

Power Options

  • PoE Injector (Dual DC feed, +24 and -48VDC support)
  • External Power (Using an RJ-45 to DC cable adaptor)

Radio Configurations

  • High power -18dBm output power
  • BPSK-1024QAM ACM (channel BW dependent)
  • Channel BW: 62.5, 125, 250, 500MHz

Networking

  • “Smart-Pipe” mode (Eth L1 services)
  • “CET node” mode (EthL2 services)
  • MEF 2.0 Carrier Ethernet switch•Header de-duplication
  • LLDP
  • Standard QoS•Frame cut through
  • LAG functionality•Automatic State Propagation
  • ABN –Interoperability with Cisco -ACM messages
  • Ethernet & Radio PMs
  • Ethernet Service OAM -Y.1731 FM
  • SyncE
  • IEEE 1588TC
Brands

Cambium Networks

Specifications:



R190V R190W
VoIP SoC MIPS Single-core 580MHz
Flash 16MBytes Flash
RAM and CPU
  • 64MBytes DDR3 RAM
  • MT7628
  • 64MBytes DDR3 RAM
  • MT7628N
Power Supply
  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 1.0A
I/O Interfaces
  • 1 RJ-45 for WAN port (Ethernet 100 Base-T)
  • 3 RJ-45 for LAN port (Ethernet 100 Base-T)
  • 2 RJ-11 for FXS port
  • IEEE802.11 b/g/n
  • 1 RJ-45 for WAN port (Ethernet 100 Base-T)
  • 4 RJ-45 for LAN port (Ethernet 100 Base-T)
Environmental
  • Operation Temperature: -5~45 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing
Key Feature
  • 100Mbps NAT/NAPT speed
  • 2T2R 2.4G 802.11 b/g/n(300 Mbps)
  • Support VoIP FXS port with SIP and T.38 FAX
  • 100Mbps NAT/NAPT speed
  • 2T2R 2.4GHz IEEE 802.11 b/g/n(300 Mbps)
Protocols
  • DHCP/PPPoE
  • HTTP Server for Web Management
  • TFTP/HTTP for Auto Provisioning
  • DHCP Option Codes for SIP (RFC3361)
  • DNS/DNS SRV (RFC1706 and RFC 2782)
  • IEEE802.1Q VLAN/802.1p and IP DSCP
  • SNTP
Audio Codec
  • G.711 (A-Law, u-Law) with PESQ above 4.3
  • G.729 with PESQ above 3.7
  • Adaptive Jitter Buffer Management
  • Voice Activity Detection
  • Comfort Noise Generation
  • Echo Cancellation
  • T.30 FAX with G.711
  • Real time FAX over IP via T.38
Wireless
  • 802.11 b/g/n support
  • 4 SSID
  • Static WEP(64/128bit)
  • Dynamic WEP(64/128bit)
  • AES(CCMP/TKIP)
  • MAC certification
  • WEP certification
  • WPA-PAK/WPA-PSK(2.0)
  • WPA/WPA2
  • AP Isolation and MBSSID AP Isolation
  • WMM
  • WDS
  • WPS
  • Station list
  • Wireless MAC Filter
  • 4 SSID
  • Static WEP(64/128bit)
  • Dynamic WEP(64/128bit)
  • AES/TKIP
  • MAC certification
  • WEP certification
  • WPA/WPA2
  • AP Isolation and MBSSID AP Isolation
  • WMM
  • WDS
  • WPS
  • MAC Filter(different from wired MAC Filter)
Applications
  • NAT mode and Bridge mode
  • Support DDNS
  • MAC address cloning
  • SIP proxy redundancy
  • NAT Traversal by STUN
  • Built-in Wired speed NAT Router
  • DHCP Server and Client
  • IP conflict detection
  • Port Forwarding, DMZ, SuperDMZ
  • 802.1Q VLAN/802.1p, DSCP, Rate Limiting
  • VPN(PPTP,L2TP, IPSec) Passthrough
  • SNTP
  • IGMPv2
  • Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
Management
  • Firmware Upgrade
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level
  • SNMP v2
  • Telnet
  • TR069
  • System Log: local log and remote log
  • Firmware Upgrade
  • Web Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level
  • SNMP v2
  • Telnet
  • TR069
  • System Log: local log and remote log
Call Features
  • 3-way conference
  • Call hold
  • Call forwarding
  • Call Transfer
  • Call waiting
  • Caller ID and CWCID
  • DTMF Relay: In-band, Out-band and SIP INFO
  • QoS Layer 3
  • Call Log
  • CID/CWCID
  • Dial Plan
  • DTMF Mode: Inband, outband and SIP Info
