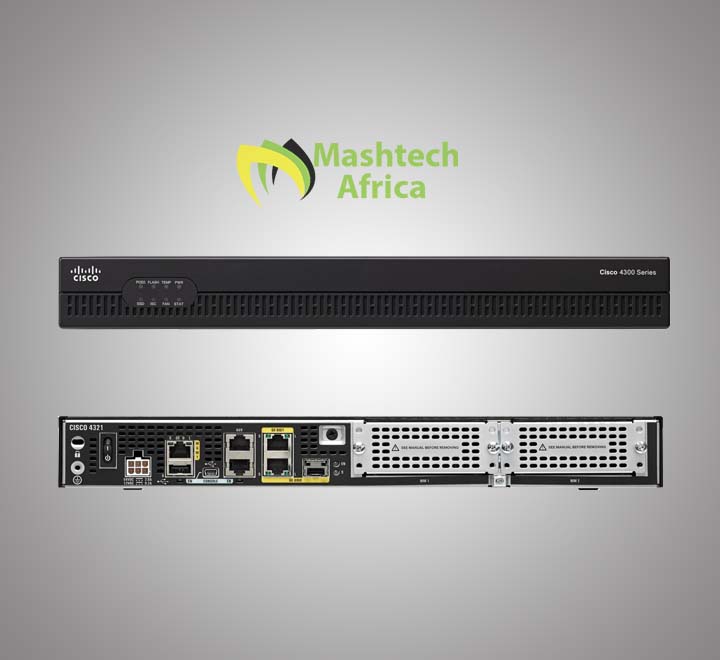

Cisco 4321/K9 Integrated Services Router

Cisco Systems
Availability:

8 in stock


  • 50Mbps-100Mbps system throughput
  • 2 WAN/LAN ports
  • 1 SFP port, multi-Core CPU
  • 2 NIM, Security
  • Voice
  • WAAS
  • Intelligent WAN
  • OnePK

Cisco 4321 Integrated Services router is designed to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps throughput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 100Mbps by buying FL-4320-PERF-K9 licenses.

  • AVC

SKU: ISR4321/K9

KSh 120,000.00 KSh 124,000.00

8 in stock

KSh 290,000.00 for 2 item(s)

Multi-brands of Routers Meet Various Needs of Small to Large Business.

Quick Specs

Product Code Cisco ISR4321/K9
Aggregate Throughput 50 Mbps to 100 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2
RJ-45-based ports 2
SFP-based ports 1
NIM (Network Interface Modules) slots 2
Onboard ISC slot 1
Memory 4 GB (default) / 8 GB (maximum)
Flash Memory 4 GB (default) / 8 GB (maximum)
Power-supply options External: AC and PoE
Rack height 1 RU
Dimensions (H x W x D) 44.55 x 369.57 x 294.64 mm
Package Weight 9.19 Kg



The Modules, Cards, Licenses & Accessories

Cisco ISR4321/K9 is one of the Cisco 4000 series routers, which support new modules & cards slots, such as NIM, ISC, etc. Besides, Cisco ISR4321/K9 can upgrade by licenses.

Brands

Cisco Systems

ISR4321/K9 Specification

Cisco ISR4321/K9 Specification

Aggregate Throughput 50 Mbps to 100 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2
RJ-45-based ports 2
SFP-based ports 1
Enhanced service-module slots 0
Doublewide service-module slots 0
NIM slots 2
OIR (all I/O modules) Yes
Onboard ISC slot 1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 8 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 4 GB
Maximum flash memory 8 GB
External USB 2.0 slots (type A) 1
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port – RJ45 (up to 115.2 kbps) 1
Serial auxiliary port – RJ45

(up to 115.2 kbps)

1
Power-supply options External: AC and PoE
Redundant power supply N/A
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 1.5 to 0.6A
AC input surge current 90 A peak and less than 3 Arms per half cycle
Typical power (no modules) (watts) 36
Maximum power with AC power supply (watts) 125
Maximum power with PoE power supply (platform only) (watts) 260
Maximum endpoint PoE power available from PoE power supply (watts) 120
