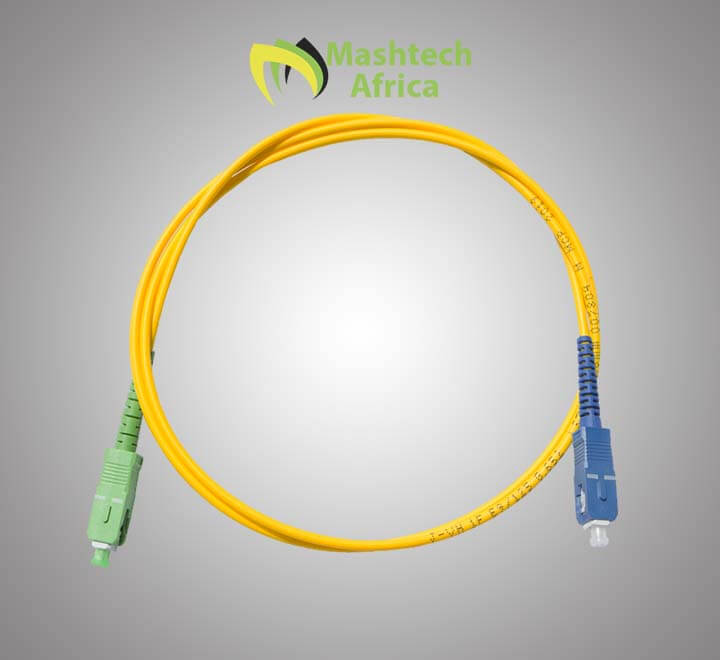

Fibre Patch Cords 2MM 1.5M SC/APC-SC/ UPC

Fibre Optics
Availability:

6 in stock


SC/UPC-SM-0.9mm-1.5m fiber optic Pigtail.

  • Connectors: SC to SC
  • Core: Single Mode Fiber
  • Density: Simplex
  • Finish/Size: UPC Polish
  • Length: 1.5 Meter(s)
  • Diameter 0.9mm

SKU:  SC/APC-FOP

KSh 150.00

6 in stock

The SC fiber optic pigtail is available in both single-mode and multimode versions and is fully intermateable with NTT-SC products. Both single-mode and multimode versions SC fiber patch come with a zirconia ceramic ferrule with pre-polished UPC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.

Applications

  •  FTTH
  • LANS,WANS,CATV,CCTV
  • Premise installations
  •  Data processing networks
  •  Industrial,mechanical, and military
  •  Test equipment and active device termination

Features

  • Insert-pull, key-oriented coupling mechanism which allows highly repeatable, low-loss connection
  •  Simplex, Duplex and Multi-core accessories , apply in the standard and specific structure
  • Single-mode
  • UPC polish
  • Comply with Telcordia GR-326-CORE Specification
  • The material of plastic plug Comply with the request of UL94V-O and Standard of RO
Brands

Fibre Optics

Technical Specifications

Specifications

 Items

Single mode

Multimode

PC

UPC

APC

62.5/125

50/125

50/125 10G

Insertion Loss

<0.3dB

<0.3dB

Return Loss

≥45dB

≥50dB

≥60dB

            ≥35dB

Durability

<0.1dB typical change,
500 matings

Operating Temperature

-40 to +75

-40 to +75

Ferrule Hole Sizes

125.0+1/-0um, Conentricity:≤1um

125um,Conectricity:1≤3um

125.3+1/-0um, Conentricity:≤1um

127um,Conectricity:1≤3um

125.5+1/-0um, Conentricity:≤1um

128um,Conectricity:1≤3um
