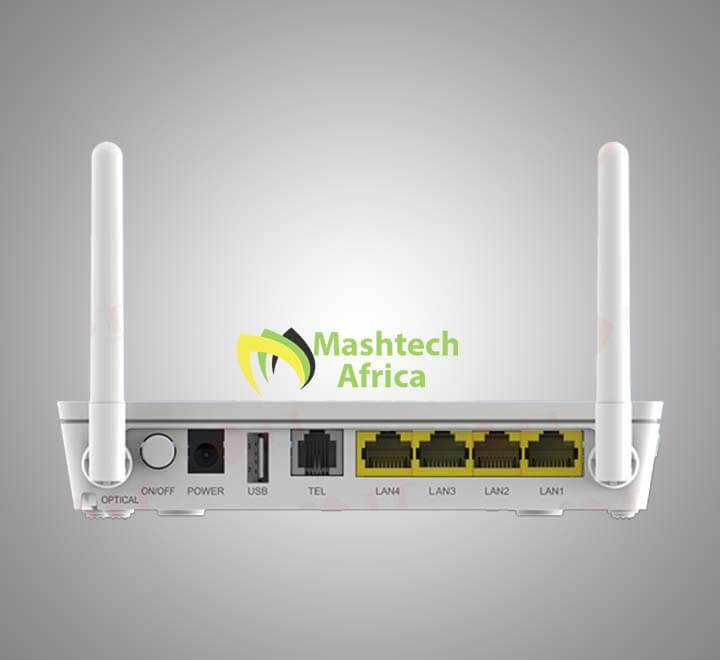

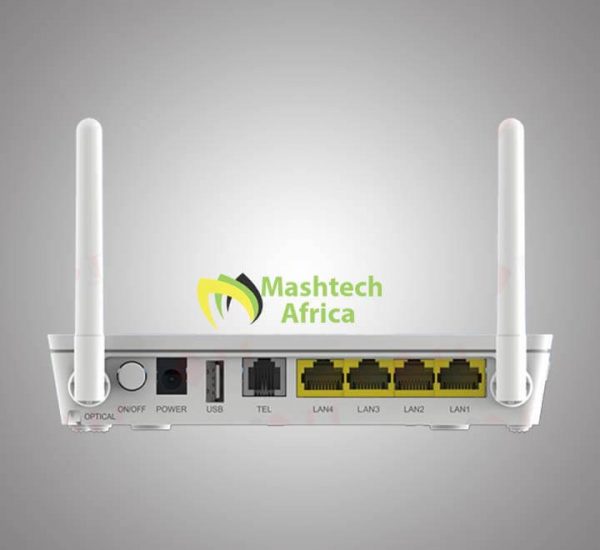

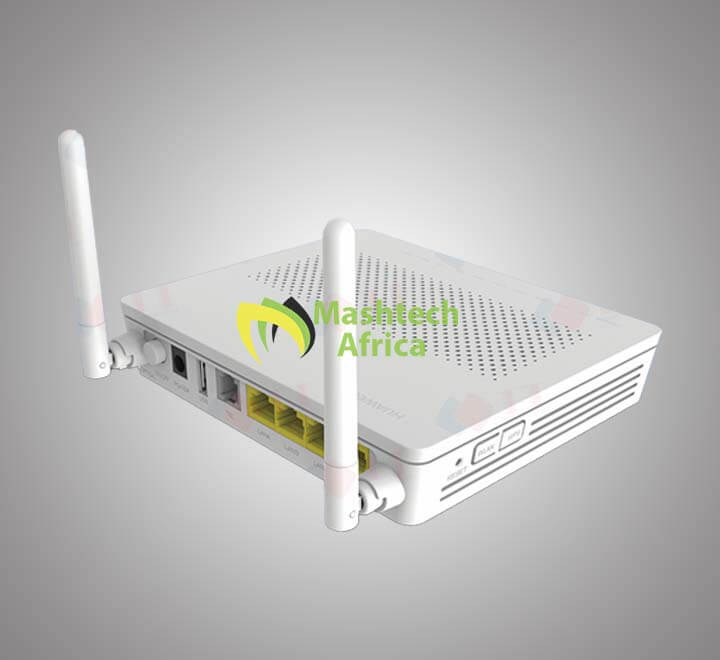

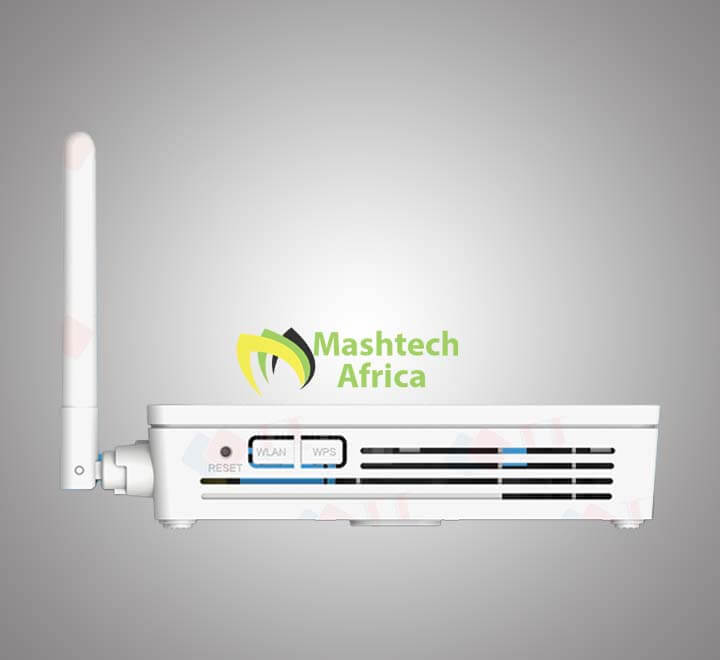

Huawei XPON HG8546M ONU

Availability:

8 in stock


  • Receiver sensitivity: -27 dBm
  • Receiver sensitivity: -27 dBm
  • Flexible mapping between GEM port and TCONT
Production Capacity: 10000PCS/Week
Payment Terms: T/T
Type: Gpon Ont
Wiring Devices: Gpon Ont

SKU: XPON-HG8546M-ONU-2021

KSh 2,500.00 KSh 2,600.00

8 in stock

WIFI+4LAN+Tel

GPON port:

      • Class B+
      • Receiver sensitivity: -27 dBm
      • Wavelengths: US 1310 nm, DS 1490 nm
      • WBF
      • Flexible mapping between GEM port and TCONT
      • GPON: consistent with the SN or password authentication defined in G.984.3
      • Bi-directional FEC
      • SR-DBA and NSR-DBA

Ethernet port:

      • Ethernet port-based VLAN tag
      • 1:1 VLAN, N:1 VLAN or VLAN transparent transmission
      • QinQ VLAN
      • Limit on the number of learned MAC addresses
      • MAC addresses learning

Power:

      • Power adapter input: 150~264VAC, 50~60 Hz
      • Static power consumption: 4.5W
      • Max power consumption: 12 W
      • Power supply: 11~14VDC, 1 A

Dimension:

      • Dimension (H×W×D): (176×138×28) mm
      • Weight: 500g
      • Operating temperature: 0 ~ 40°C
      • Operating humidity: 5% ~ 95% RH (non-considering)
      • Port: 1 POTS + 4 FE + WiFi + USB 2.0
      • Indicator: POWER/ PON/ POS/ LAN/ TEL/ USB/ WLAN/ WPS

WLAN:

      • IEEE 802.11 b/g/n
      • 2 × 2 MIMO
      • Antenna gain: 2 Dbi
      • WMM
      • Multiple SSIDs
      • WPS

POTS Port:

      • Maximum REN:4
      • G.711A/µ, G.729a/b, G.772 encoding/decoding
      • T.30/T.38/G.711 fax mode
      • DTMF
      • Emergency calls (with the SIP protocol)
