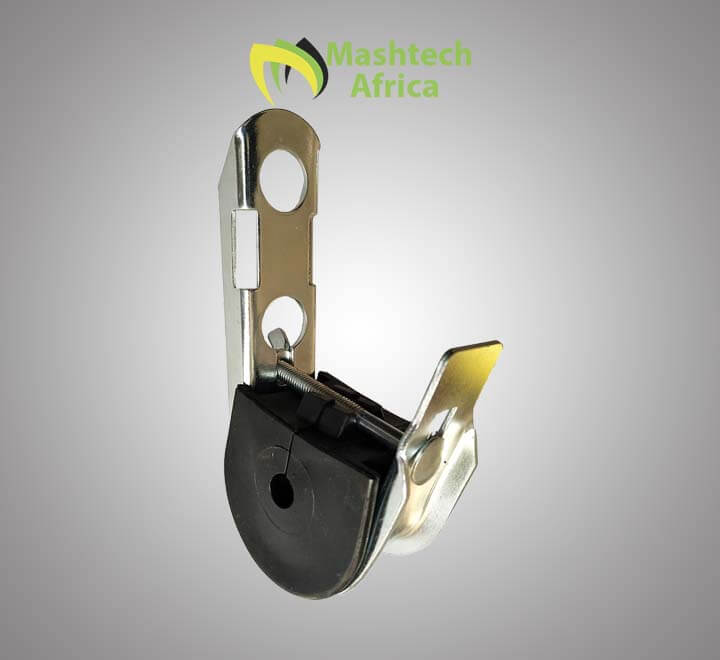

J Hook Suspension Clamp 10-15mm

Fibre Optics
Availability:

7 in stock


  • Suitable cable dia.- 5-8mm,8-12mm, 10-15mm, 12-20mm optional
  • Application – for hanging adss/fiber optic cable
  • Breaking load – 4kn

SKU: HC-10-15

KSh 500.00 KSh 600.00

7 in stock

ADSS optical fiber cable accessories 10-15mm J hook suspension clamp

Suspension clamps are designed to suspend ADSS round optical fiber cable during the construction of the transmission line. The clamp consists of a plastic insert, which clamps the optical cable without damage. A wide range of gripping capacities and mechanical resistance is archived by a wide product range, with different sizes of neoprene inserts.
The metal hook of the suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets. The hook of ADSS clamp can be produced from stainless steel materials according to your request

Characteristic:

• Two sizes to cover the full range of ADSS cables from 5 to 20mm.
• The shape of the J Hook allows a running out of the cable directly in the hook
• The suspension clamps can be directly secured to the poles using bolts or bandings.
They can also be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind-induced vibrations

Brands

Fibre Optics

Application

Hook clamps are designed to provide a suspension for 10 to 20mm aerial ADSS cables at intermediate poles on cable routes with angle < 20° on access networks (spans up to 100m).ADSS optical fiber cable accessories 10-15mm J hook suspension clamp
