MikroTik Cloud Core Router CCR1009-7G-1C-1S+PC

MikroTik Wireless
Availability:

5 in stock


  • MikroTik CCR1009-7G No-Switch Chip: The device now features only fully independent Ethernet ports, each with a direct connection to the CPU, allowing it to overcome previously shared 1Gbit limitations from switch-chip ports and utilize the full potential of CPU processing power on those ports.
  • Combo-Port: A single 1Gbit software interface that has two hardware interfaces – an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. The Port also allows switching from one interface to another from software or the new hardware fail-over feature.
  • 100Mbps SFP Support: This is the first MikroTik device that supports 100BASE-LX / 100BASE-SX / 100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
  • More Throughput: Due to how the ports are connected to the CPU, the new CCR1009 models can achieve higher theoretical throughput.

SKU: CCR1009-7G-1C-1S+PC

KSh 49,000.00 KSh 52,000.00

5 in stock

KSh 94,000.00 for 2 item(s)

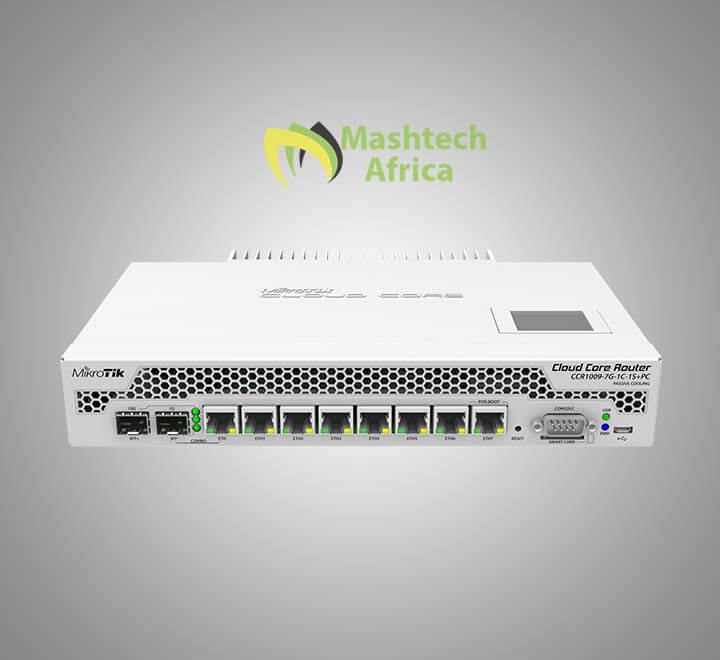

MikroTik CCR1009-7G-1C-1S+PC Cloud Core Router

An update of MikroTik’s CCR1009-8G-1S-1S+PC, the CCR1009-7G-1C-1S+PC has removed the switch-chip, leaving each of the 7 Gigabit Ethernet ports fully independent and removing the 1Gbit limitation present in the previous model. The newer model also features a combo-port, a single 1Gbit software interface that has two hardware interfaces – an SFP cage and a Gigabit Ethernet port – allowing you to use any type of connection available to you. The combo-port can also switch between interfaces from software or can provide a unique hardware fail-over feature in the event of a disconnect.

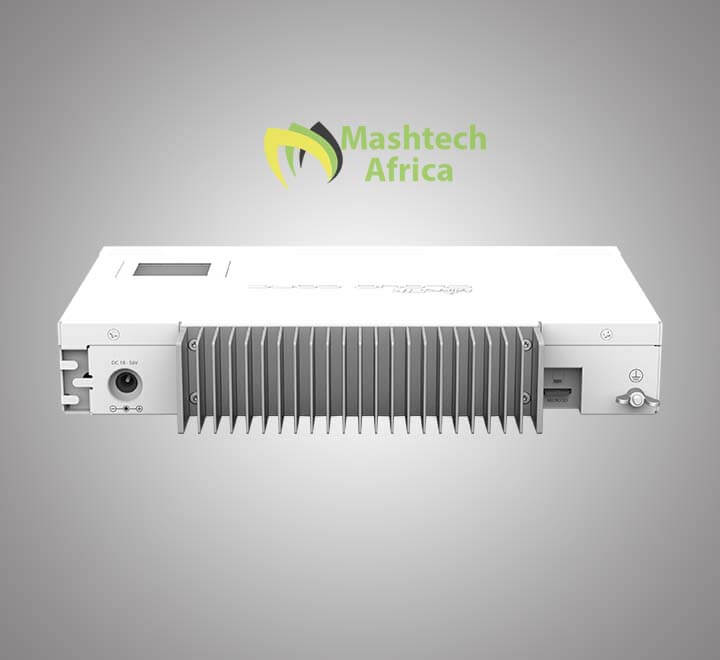

MikroTik CCR1009-7G  is an update of the popular MikroTik CCR1009-8G-1S-1S+PC. The unit is equipped with a passive cooling enclosure, two heat pipes, and a specially designed heat sink, so it’s completely silent.

MikroTik CCR1009-7G  Specs

• Product Code: CCR1009-7G-1C-1S+PC
• CPU Nominal Frequency: TILE-Gx9, 9 cores, 1 GHz
• Size of RAM: 2 GB
• Storage Type: NAND
• Storage Size: 128 MB
• 10/100/1000 Ethernet Ports: 7
• Number of USB Ports: 1
• Power Jack: 1
• PoE In: Yes
• Supported Input Voltage: 18V to 56V
• Voltage Monitor Yes
• PCB Temperature Monitor: Yes
• CPU Temperature Monitor: Yes
• LCD: Yes

It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port. This version includes an LCD touchscreen, smart card slot, microSD, and an SFP+ port for 10G connections.



Brands

MikroTik Wireless

Specifications

Details
Product code CCR1009-7G-1C-1S+PC
Architecture TILE
CPU TLR4-00980
CPU core count 9
CPU nominal frequency 1 GHz
Dimensions 272 x 190 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $495.00

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 18-57 V
Max power consumption 38 W
Max power consumption without attachments 33 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 18-57 V

Ethernet

Details
10/100/1000 Ethernet ports 7
Ethernet Combo ports 1

Fiber

Details
SFP+ ports 1

Peripherals

Details
Number of SIM slots 1 Smart card (Mini SIM)
Memory card type microSD
Memory Cards 1
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

Included parts
