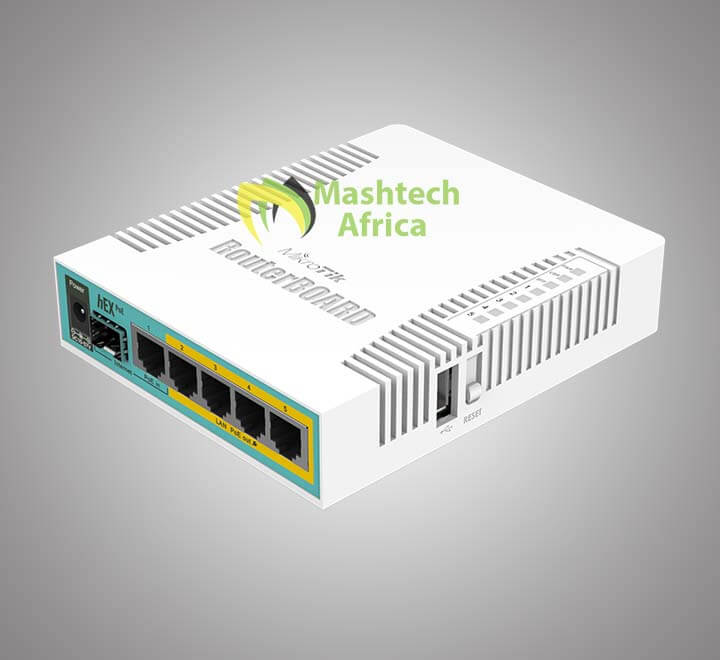

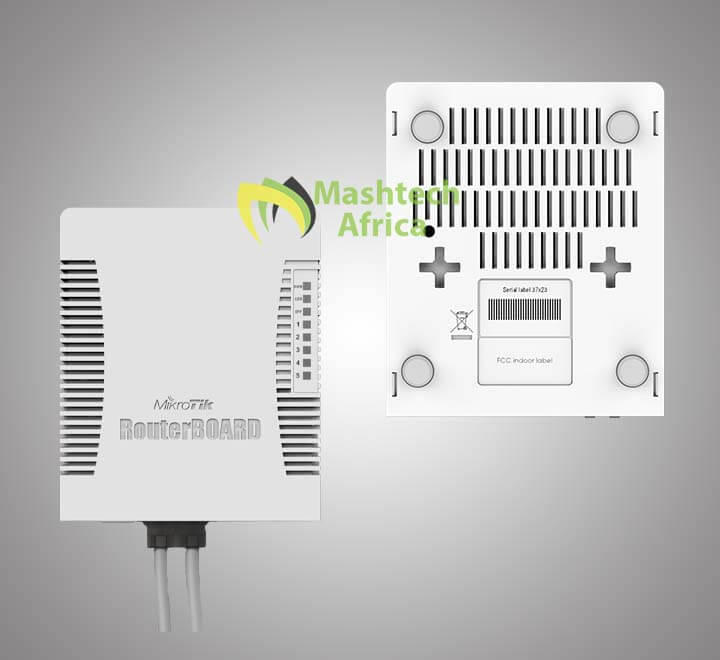

MikroTik hEX PoE RB960PGS

MikroTik Wireless
Availability:

6 in stock

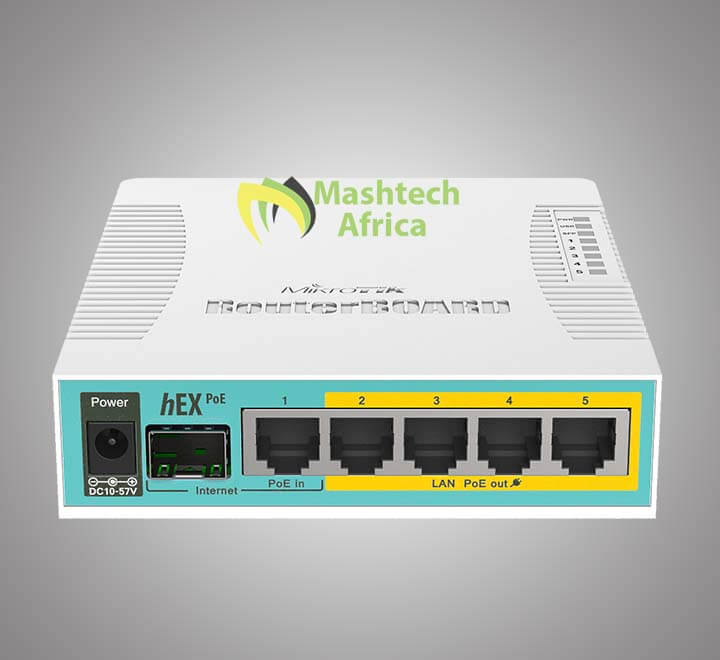

  • 5x Gigabit Ethernet with PoE output for four ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4
  • hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and an SFP port for adding optical fiber connectivity. Ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit.
  • It is affordable, small, and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Fewer power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
  • It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit. Fewer power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices if 48-57 input voltage is used.

SKU: RB960PGS

KSh 9,499.00 KSh 9,800.00

6 in stock

KSh 27,498.00 for 3 item(s)

Specifications

Details
Product code RB960PGS
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 60°C
Suggested price $79.00

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 54 W
Max power consumption without attachments 6 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether2-Ether5
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 2 A

Ethernet

Details
10/100/1000 Ethernet ports 5

Fiber

Details
SFP ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

Included parts
