Mikrotik Omnitik 5 PoE RBOmniTikUPA-5HnD

MikroTik Wireless
Availability:

6 in stock


  • 7.5dBi Integrated AP, 5GHz Dual chain, 5xEthernet ports with PoE output

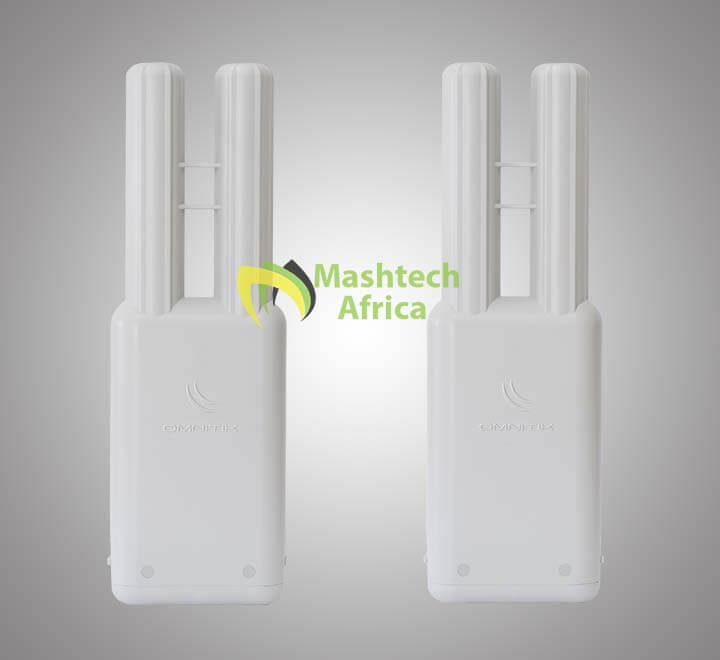

  • OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas – the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device. Weatherproof, durable and ready to use. It has ve 10/100 Ethernet ports, PoE support and a built-in 1000mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

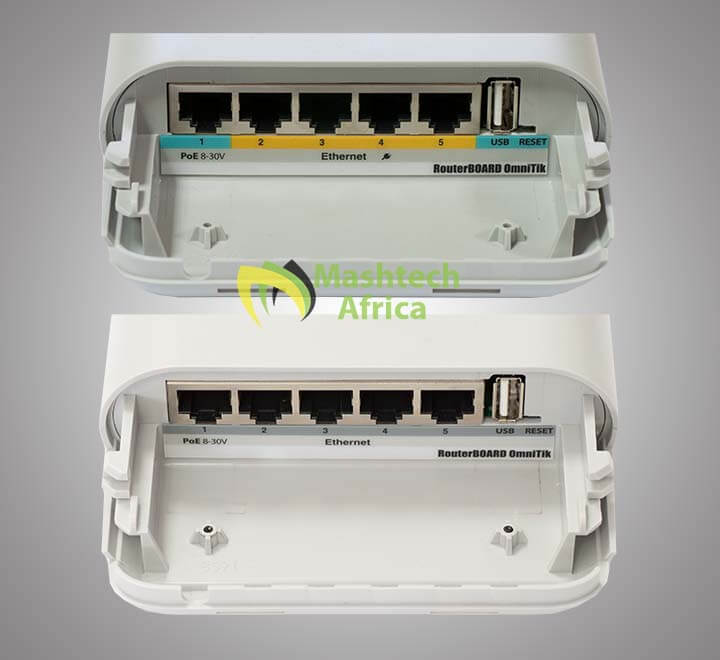

  • LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal – or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.
  • The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters to worry about.

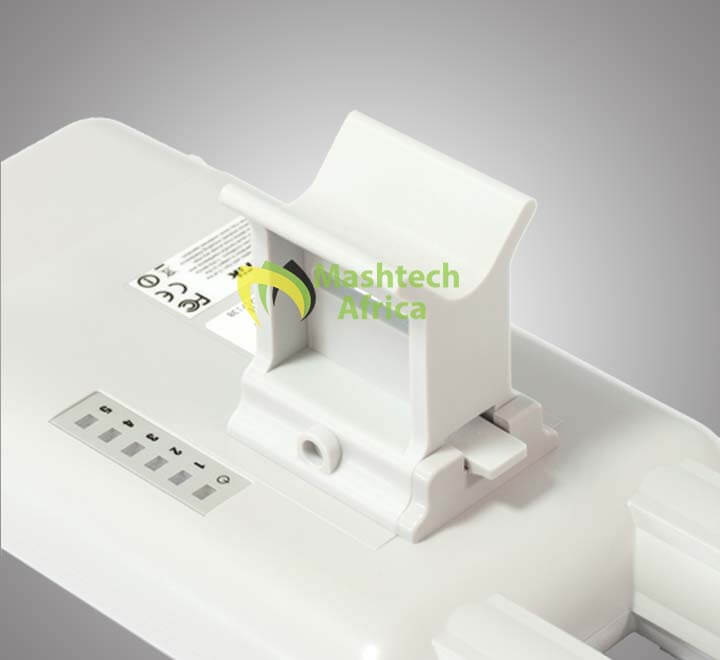

  • Box contains OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter
  • – RBOmniTikUPA-5HnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
  • – RBOmniTikUPA-5HnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

SKU: RBOmniTikUPA-5HnD



KSh 12,000.00 KSh 13,000.00

6 in stock

Specifications

Details
Product code RBOmniTikUPA-5HnD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 368x125x55mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $99.00

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 59 W
Max power consumption without attachments 11 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 11-30 V

PoE-out

Details
PoE-out ports Ether2-Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 1 A
Max total out (A) 2 A

Wireless specifications

Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 7.5
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 5

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 27 -78
MCS0 30 -96
MCS7 26 -75

Included parts
