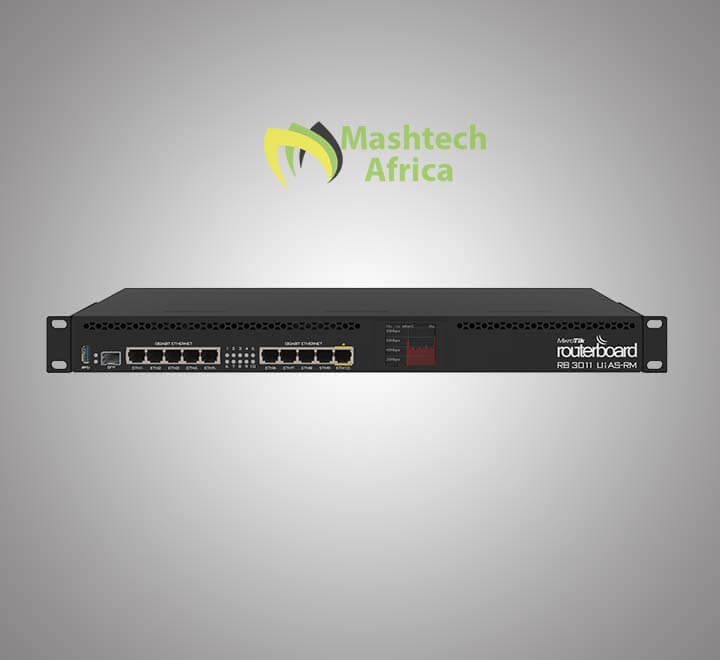

Mikrotik RouterBoard 10xGigabit RB3011UIAS-RM

MikroTik Wireless
Availability:

8 in stock


  • 1U rackmount
  • 10xGigabit Ethernet
  • SFP
  • USB 3.0
  • LCD
  • PoE out on port 10
  • 2×1.4GHz CPU
  • 1GB RAM
  • RouterOS L5

The Mikrotik RB3011UIAS-RM RouterBoard 10xGigabit  with Dual-core 1.4GHz ARM CPU, 1GB RAM, 10x Gbit LAN, 1xSFP port, RouterOS L5, 1U rackmount case, LCD pane.

The Mikrotik RB3011UiAS-RM is a new multi-port device, our first to be running an ARM architecture CPU for higher performance than ever before.

The RB3011UiAS-RM has ten Gigabit ports divided into two switch groups, an SFP cage and for the first time a SuperSpeed full-size USB 3.0 port, for adding storage or an external 3G/4G modem.

It comes with a 1U rackmount enclosure, a touchscreen LCD panel, a serial console port, and PoE output functionality on the last Ethernet port.

SKU: RB3011UIAS-RM

KSh 18,000.00 KSh 19,000.00

8 in stock

KSh 18,000.00 for 2 item(s)

The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

More Power, Greater Performance

The MikroTik RouterBOARD RB3011UiAS-RM follows on from the extremely popular previous generation RB2011 series. The CPU has been upgraded to 2 Cores at 1.4GHz and the RAM has been increased to a huge 1GB, providing the power to handle just about any networking task and making it ideal for both core routing and edge routing environments.

This 10 port router features 10x Gigabit Ethernet divided into two switch groups and 1x SFP cage for 1Gbps optical uplink. For the first time in a MikroTik RouterBoard, the RB3011UiAS-RM also features a SuperSpeed full size USB, perfect for attaching additional storage or an external 3G/4G modem.

The MikroTik RB3011UiAS-RM also supports PoE out on Port 10 enabling you to power an external device, such as a IP CCTV camera or even another RouterBoard device. A built-in touchscreen LCD screen allows for easy configuration and monitoring of the router’s performance.

RouterOS Installed

MikroTik RouterBOARD RB3011UiAS-RM comes preinstalled with the powerful RouterOS software and a Level 5 licence. The level 5 licence provides perpetual access to all the features available in RouterOS including: dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, and real-time configuration and monitoring.

IPSec HW Encryption Support

From RouterOS v6.43.1, the RB3011UiAS-RM will support IPsec hardware encryption.

Package Contents

  • 1x RB3011UIAS-RM
  • 1x Mains Power Lead

Product Features

  • PoE Out on Port 10
  • IPSec Hardware Encryption Support
  • Full USB Port
Brands

MikroTik Wireless

Specifications

Details
Product code RB3011UiAS-RM
Architecture ARM 32bit
CPU IPQ-8064
CPU core count 2
CPU nominal frequency 1.4 GHz
Dimensions 443 x 92 x 44 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 70°C
IPsec hardware acceleration Yes
Suggested price $179.00

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 30 W
Max power consumption without attachments 10 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V

PoE-out

Details
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max total out (A) 600 mA

Ethernet

Details
10/100/1000 Ethernet ports 10

Fiber

Details
SFP ports 1

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

Included parts
