Mikrotik RouterBoard CCR1009-8G-1S-1S+

MikroTik Wireless
Availability:

9 in stock


  • Mikrotik RouterBoard CCR1009-8G-1S-1S+ is a low-cost industrial grade router with Tilera 9 core CPU! Amazing power and performance for value – this is our full-featured, low-end CCR device, the Cloud Core Router (CCR1009). If you need many packets per second on a budget – Cloud Core Router with 9 cores is your best choice.

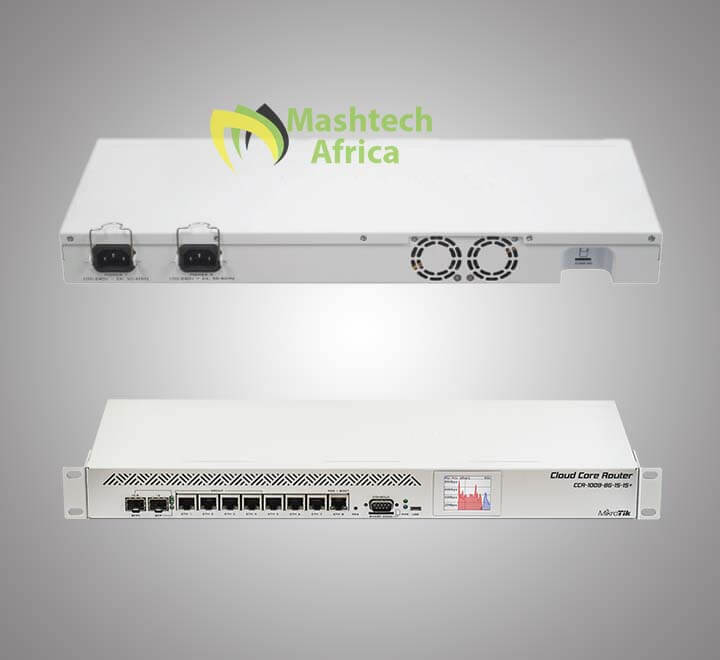

  • The device comes in a 1U rackmount case, has one SFP port, one SFP+ port, eight Gigabit ethernet ports, a serial console port, a USB port, and dual power supplies.
  • The CCR1009-8G-1S-1S+ has 2GB of DDR3 800MHz RAM soldered directly to the motherboard and cannot be expanded.

SKU: CCR1009-8G-1S-1S+

KSh 61,999.00 KSh 65,000.00

9 in stock

KSh 80,998.00 for 3 item(s)

Mikrotik RouterBoard CCR1009-8G-1S-1S+

Specifications

Details
Product code CCR1009-8G-1S-1S+
Architecture TILE
CPU TLR4-00980
CPU core count 9
CPU nominal frequency 1.2 GHz
Dimensions 444x175x44mm
License level 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20°C to 60°C
Suggested price $495.00

Powering

Details
PoE in Passive PoE
PoE in input Voltage 14-57 V
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 1 (PoE-IN)
Max power consumption 35 W
Max power consumption without attachments 35W
FAN count 2

Ethernet

Details
10/100/1000 Ethernet ports 8

Fiber

Details
SFP DDMI Yes
SFP ports 1
SFP+ ports 1

Peripherals

Details
Number of SIM slots 1 Smart card (Mini-SIM)
Serial port RS232 + Header
Number of USB ports 1
USB Power Reset Yes
USB slot type micro USB type AB
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
