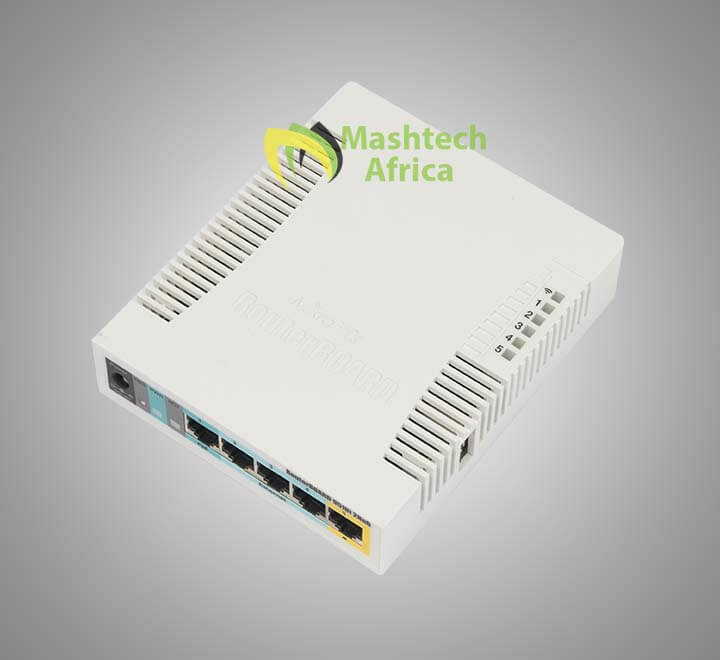

MikroTik RouterBOARD RB951Ui-2HnD Wireless SOHO Access Point

MikroTik Wireless
Availability:

8 in stock


  • 2.4GHz AP with five Ethernet ports and PoE output on port 5. It has a 600MHz CPU, 128MB RAM and a USB port.
  • The Mikrotik RB951UI-2HND Wireless Router is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port, and a high-power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
  • It has a 600MHz CPU,128MB of RAM, and PoE output function for port #5 – it can power other PoE-capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.

SKU: RB951UI-2HND

KSh 6,400.00 KSh 7,000.00

8 in stock

KSh 11,899.00 for 2 item(s)

The Mikrotik RB951UI-2HND Wireless Router is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port, and a high-power 2.4GHz 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM, and PoE output function for port #5 – it can power other PoE-capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

• CPU: Atheros AR9344 600Mhz
• (5) 10/100 Ethernet Ports
• (1) USB 2.0 Port
• Memory: 128MB DDR2 onboard memory
• Power In: PoE: 8-30V DC on Ether 1 (non 802.3af). Jack: 8-30V DC
• Power Out: PoE passive on port 5, same voltage as input
• Power Consumption: Up to 7W
• Dimensions: 4.4 x 5.4 x 1.1 inches (113 x 138 x 29 mm)
• Weight: (including package and power supply) 0.92lbs (420g)
• Operating System: MikroTik RouterOS, Level 4

RB951UI-2HND Datasheet

Brands

MikroTik Wireless

Specifications

Details
Product code RB951Ui-2HnD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 113x138x29mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -20C +60C
Suggested price $59.95

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9344
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 5

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 24 W
Max power consumption without attachments 7 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max total out (A) 500 mA

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 25 -80
MCS0 30 -96
MCS7 23 -78

Included parts
