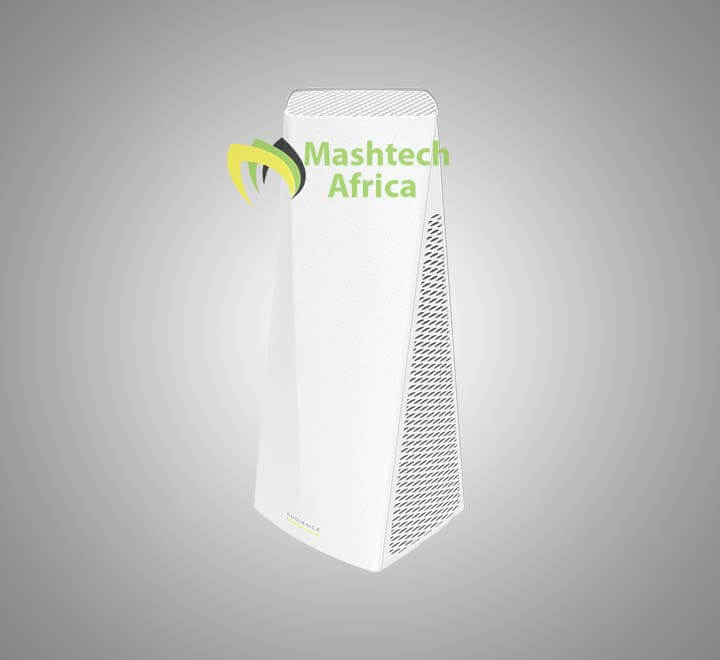

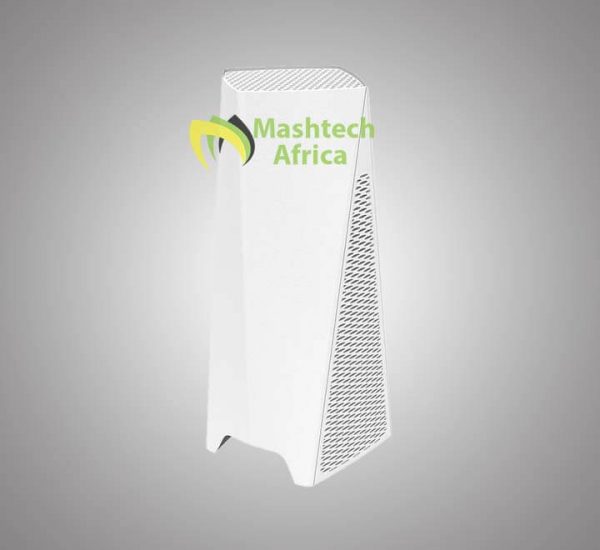

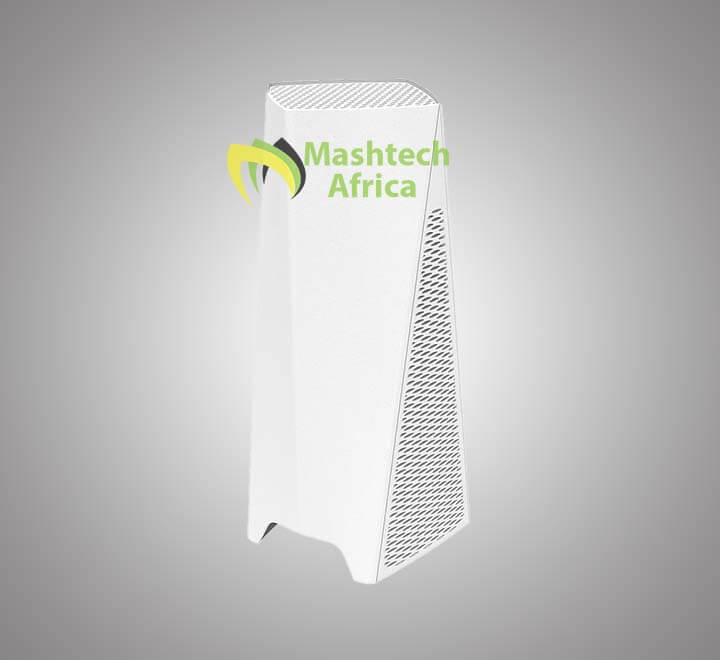

MikroTik Tri-band Audience LTE6 kit

MikroTik Wireless
Availability:

9 in stock


  • Tri-band (one 2.4 GHz & two 5 GHz) home access point with LTE CAT6 support and meshing technology
  • Wi-Fi has to be fast, reliable, easy to manage, it must reach every room and every corner. That is exactly what Audience devices can deliver in grand style – even in the biggest houses!
  • Audience LTE6 kit is a tri-band (one 2.4 GHz & two 5 GHz ) home access point with LTE support and meshing technology. If you need Wi-Fi in a huge building with all kinds of obstacles, simply add more Audience devices to your network – with a press of a button they will sync seamlessly and create a single Wi-Fi network to cover the whole premises. The initial setup is also very simple – download the iOS or Android MikroTik app, which will connect to the router and guide you through a quick setup process.
  • In some cases, a single Audience unit might be able to replace several other routers – in our tests it covered 1858 m² (20000 square feet) easily. It depends on the number of obstacles, Wi-Fi clients, and interference, so results may vary.
  • Cables can no longer limit you. CAT6 LTE delivers speed up to 300 Mbps with low latency, so having a traditional Ethernet connection is not a must-have for streaming high-quality videos or gaming. Alternatively, you can use the two Gigabit Ethernet ports and keep the LTE option for backup. One of the Ethernet ports supports PoE for powering the device.
    Dual-chain 2.4 GHz and 5 GHz wireless coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5 GHz channel for your PC or TV.
  • Order your Audience today and start living in the future. The future of easy and elegant networking.

SKU: RBD25GR-5HPacQD2HPnD&R11e-LTE6



KSh 15,799.00 for 3 item(s)

Specifications

Details
Product code RBD25GR-5HPacQD2HPnD&R11e-LTE6
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 100 x 235 x 97 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -30°C to 60°C
IPsec hardware acceleration Yes
Suggested price $279.00

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 30 W
Max power consumption without attachments 20 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 24-57 V

Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3.5
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4.5
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
Wireless 5 GHz Max data rate 1733 Mbit/s
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4.5
Wireless 5 GHz chip model QCA9984
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 2

Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 29 -96
54MBit/s 26 -80
MCS0 29 -96
MCS7 25 -75
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -95
54MBit/s 24 -78
MCS0 28 -95
MCS7 23 -75
MCS9 21 -70
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 32 -96
54MBit/s 28 -80
MCS0 32 -96
MCS7 27 -77
MCS9 25 -72

Included parts
