ADDS Cable Tension Anchor Clamps PA3000, Suit 8-12MM

Availability:

6 in stock


SKU: ACADSS 8-22

KSh 700.00 KSh 800.00

6 in stock

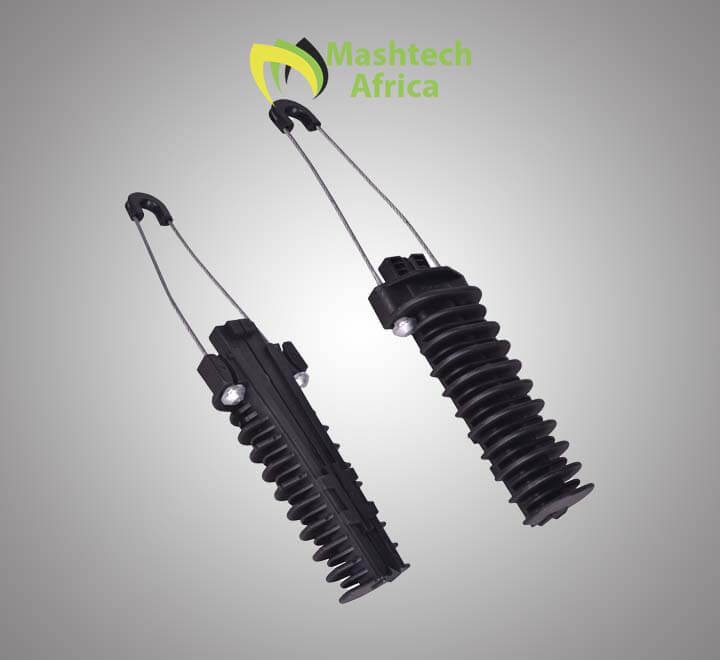

ADSS drop fiber optic cable plastic tension clamp / anchor Clamp

DescriptionThese anchoring clamps are made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail. Different sizes offer a wide range of gripping capacities and mechanical resistances to fit the various ADSS cable designs.
The ADSS series of anchoring clamps allow an easy and quick securing of Ø 8 to 22 mm aerial circular fibre optic cables (ADSS).

This ADSS clamp’s shell and wedge are  made of high strength, UV resistant thermoplastic, reinforced by fiberglass. The manufacturing process is plastic injection technology, which is available at the Jera line factory. Stainless steel wire bail is rust-proof  which guarantees long-time usage and it can be attached on pole brackets, wall angles and hooks  easily.

Model Suitable cable dia. (mm) Materials Breaking load Weight
Body / Wedges / Thimble Bail
ACADSS 8-22 8~22mm UV Protected Thermoplastic Stainless Steel 2500N 0.4kg±0.01

Material: Nylon plus fiberglass
Product property: The plastic anchoring clamp is suitable for insulated low-voltage ABC cable. It is also suitable for multiple conductors
Easy installation and perfect insulated function. It is in accordance with the NFC 33-042.



  1.  Suit for ADSS overhead line cable
  2.  Material: Plastic, steel wire
  3. The standard length is 60cm total, could be customized

Installation Guide:
Consisting of: 1 anchoring clamp (1) + 1 universal pole bracket UPB (2)
ADSS Drop Fiber Optic Cable Plastic Tension Clamp / Anchor Clamp
Consisting of: 2 anchoring clamp (1) + 1 universal pole bracket UPB (2)
ADSS Drop Fiber Optic Cable Plastic Tension Clamp / Anchor Clamp

Parameters

Model Coss-section (mm2)
STA 1×10/1×16
STB 2×16/2×25
STC 4×16/4×25
STD 1×16/1×70
LA1 4×16/4×25
LA2 2×6/2×16
DCR-1 1×4/1×25
DCR-2 1×4/1×25
2.1 16-25
PA1500 25-50
PA2000 54.6-70
