Ubiquiti 4 Port NanoSwitch N-SW

Ubiquiti Networks
Availability:

9 in stock


  • Outdoor 4-Port PoE Passthrough Switch
  • The NanoSwitch is an outdoor 4-port Gigabit switch with a PoE passthrough.
  • The Ubiquiti 4 Port NanoSwitch N-SW is an unmanaged switch with four Gigabit Ethernet ports. For its total non-blocking line rate, the 4 Port switch supports up to 4 Gbps. Featuring a durable, weatherproof form factor, the NanoSwitch is ideal for outdoor deployment and for use with the Ubiquiti airMax and UniFi Video range.

SKU: N-SW

KSh 6,000.00

9 in stock

KSh 10,798.00 for 3 item(s)

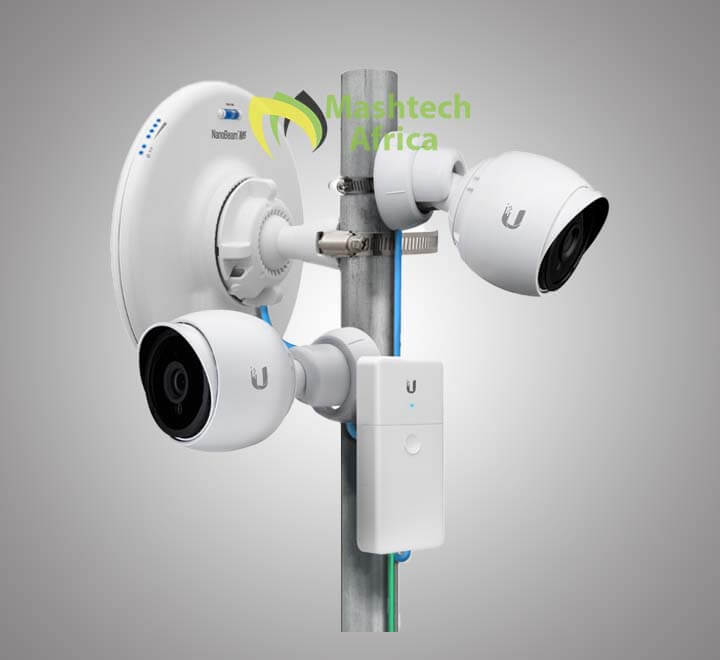

The Ubiquiti NanoSwitch is an outdoor unmanaged switch designed to simplify installs where multiple devices are being set up in one location (such as on a tower). With gigabit data passthrough, the NanoSwitch can power up to three 24V PoE devices, simplifying the powering process.

The NanoSwitch is powered via 24V Passive PoE over 2-pair and has three 10/100/1000 24V 2-pair Passive PoE out ports.

A power supply is not provided with the NanoSwitch. The table below shows the recommended powering options for this device. If using a switch to power the NanoSwitch, you will need to set the port to 24V Passive output. If you are unsure which powering method is best for you, please contact us.

Ubiquiti 4 Port Outdoor Switch Key Features

1x Gigabit 24V Passive PoE In Port
3x Gigabit 24V Passive PoE Out Ports

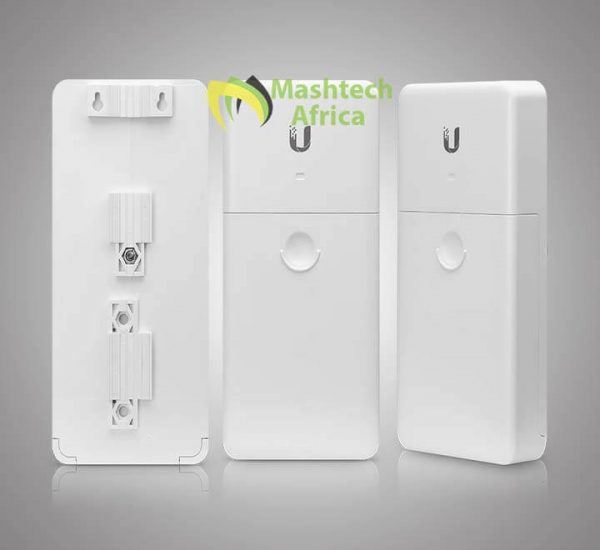

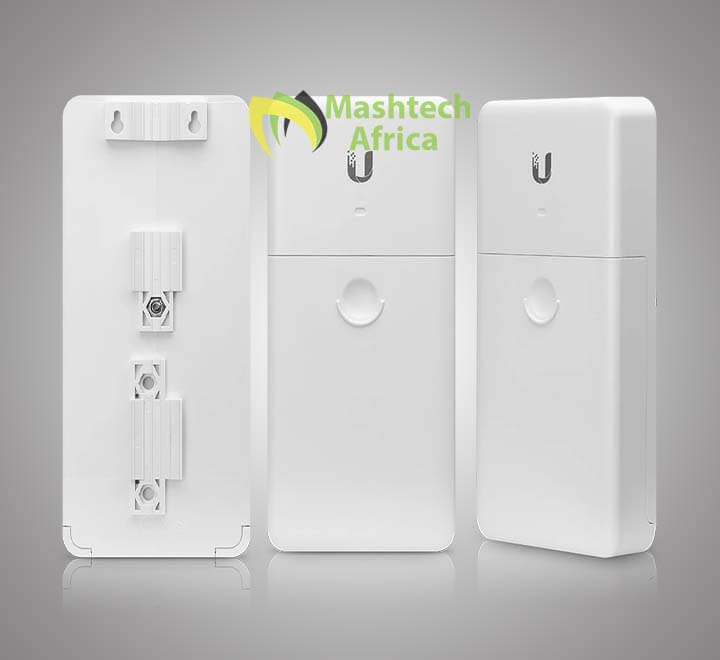

Weather-Resistant Enclosure
Supports Up To 4 Gbps
Dimensions: 196.4 x 93.5 x 32.4 mm
Weight: 271 g
Enclosure Characteristics: White Polycarbonate
Total Non-Blocking Line Rate: 4 Gbps
Typical Power Consumption: 1.5W
Passive PoE Max. Wattage per Port: 24V, 2-Pair, 1A per Port (24W)
Total Passive PoE Max. Wattage: 24V, 2-Pair, 1A for 3 Ports (30W)
Power Method Passive: 24V, 2-Pair PoE In
Power Supply: POE-24-30W PoE Adapter (Not Included)
Passive PoE Voltage Range: 21.6 – 26.4V
LEDs: Speed/Link/Activity (All Ports)

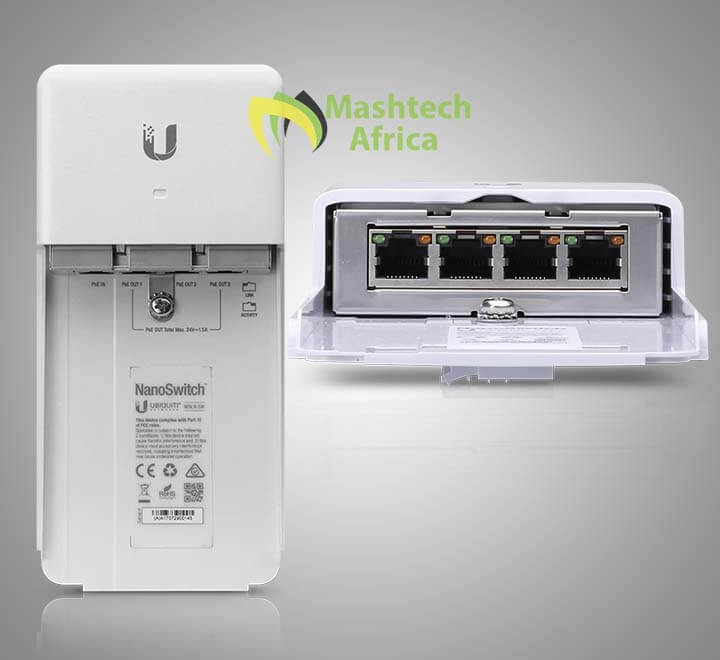

Networking Interfaces: 4x 10/100/1000 Mbps RJ45 Ports
PoE Interfaces: Passive 24V, 2-Pair PoE In
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -30 to 70°C
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
Certifications: CE, FCC, IC

Package Contents

  • 1x NanoSwitch
  • 1x Self-Tapping Screw
  • 2x Metal Straps
  • 1x Quick Start Guide

Check out more info about NanoSwitch N-SW

Brands

Ubiquiti Networks

PRODUCT SPECIFICATIONS

N-SW

Dimensions 196.4*93.5*32.4mm
7.73*3.68*1.28inch
Weight 269g
9.5oz
Enclosure Characteristics White Polycarbonate

HARDWARE

Processor RTL8367N-VB
On-Board Flash Storage 4Kbits
Total Non-Blocking Line Rate 4Gbps
TYP. Power Consumption 1.5W
Power Method Passive 24V PoE-in
Supported Voltage Range Passive 24V PoE-in
Networking Interfaces (4) 10/100/1000 Mbps Ethernet RJ45
PoE Interfaces Passive 24V PoE-in
Max PoE+ Wattage per Port by PSE 24V@1A per port / Total 24V@1.5A for three ports
Passive PoE Max wattage per port 24W per port / Total 36W for three ports
Operating Temperature -30C ~ 70C
Operating Humidity 5 to 95% Non-Condensing



Device Data Throughput per Port Max. Wattage Available to N-SW Max. Wattage Available After Powering N-SW
ES-16-150W 10/100/1000 17W 15.5W
ES-24-250W 10/100/1000 17W 15.5W
ES-24-500W 10/100/1000 17W 15.5W
ES-48-500W 10/100/1000 17W 15.5W
ES-48-750W 10/100/1000 17W 15.5W
ES-8-150W 10/100/1000 17W 15.5W
US-16-150W 10/100/1000 17W 15.5W
US-24-250W 10/100/1000 17W 15.5W
US-24-500W 10/100/1000 17W 15.5W
US-48-500W 10/100/1000 17W 15.5W
US-48-750W 10/100/1000 17W 15.5W
US-8-150W 10/100/1000 17W 15.5W
US-8-60W 10/100/1000 15.4W 13.9W
PSUPOE241000G 10/100/1000 24W 22.5W
