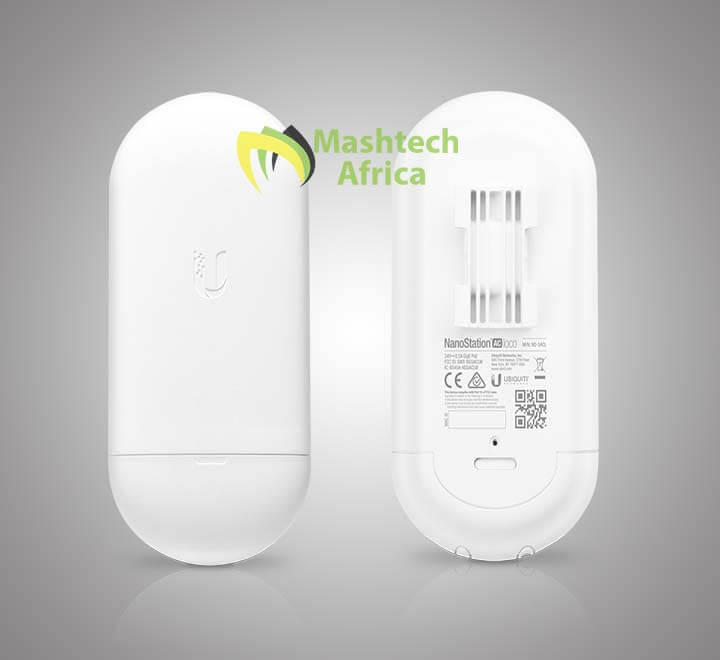

Ubiquiti airMAX NanoStation 5AC Loco


8 in stock

  • 5 GHz airMAX® ac CPE
  • The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.
  • Designed for deployment in a variety of environments in which point to multi-point communication is needed, the Ubiquiti airMAX NanoStation 5AC Loco Radio from Ubiquiti Networks offers enhanced connectivity options.
  • The Loco AC comes equipped with a Gigabit Ethernet networking interface and supports 10/20/30/40/50/60/80 MHz channel bandwidths. Installation is simple, thanks to the included pole-mount kit, while the outdoor UV stabilized plastic enclosure allows the airMAX ac radio to be installed in nearly any environment.

SKU: Loco5AC

KSh 5,800.00 KSh 6,000.00

8 in stock

KSh 9,898.00 for 3 item(s)

Upgrade Your Loco

Successor to the popular NanoStation M5 Loco, Ubiquiti’s NanoStation 5AC Loco offers higher performance in a sleeker package. Deployable as either an indoor or outdoor CPE, the NS-5ACL features the latest ESD Protection against power surges and provides throughput speeds of up to 450Mbps. The Loco features a single Gigabit Ethernet Port accepting 24v Passive PoE input.

Utilize the Power of 802.11ac

The NanoStation 5ACL operates in the 5GHz range and takes advantage of the 802.11ac standard to deliver exceptional performance in a small package. The device comes with an integrated 13dBi antenna with a 45° vertical and horizontal beamwidth, making it suitable for both Point-to-Point and Point-to-Multipoint deployments.

A CPE Full of Features

Ubiquiti’s NanoStation 5ACL utilizes TDMA (Time Division Multiple Access) AirMax protocol in place of standard WiFi protocol in order to reduce latency and improve noise immunity, scalability, and throughput. The radio can be deployed in either PtP or PtMP mode with automatic channel selection. Selectable channels of widths of 10-80Mhz (PtP) and 10/40MHz (PtMP) are also available.

Install and Manage with Ease

The NanoStation 5AC Loco comes with an integrated 2.4GHz WiFi radio for management purposes. Connect via WiFi using your mobile phone and Ubiquiti’s UNMS App for instant accessibility to the airOS configuration interface. Its simple yet versatile design, also allows the NS-5AC to be pole-mounted quickly, using only a zip tie (included).

Check out more info about NanoStation Loco5AC

Model Comparison

Frequency 5 GHz 5 GHz
Throughput 450+ Mbps 450+ Mbps
Range 15+ km 10+ km
Management Radio
PoE PSU Included
802.3af Support
Secondary Ethernet Port with PoE Out
