Ubiquiti airMAX NanoStation M2 NSM2

Availability:

7 in stock


  • Indoor/Outdoor airMAX® CPE
  • Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
  • Ubiquiti NanoStation M2 2.4 GHz AirMax 802.11n 150Mbps 2×2 MIMO station.

SKU: NSM2

KSh 8,700.00 KSh 9,000.00

7 in stock

KSh 12,798.00 for 3 item(s)

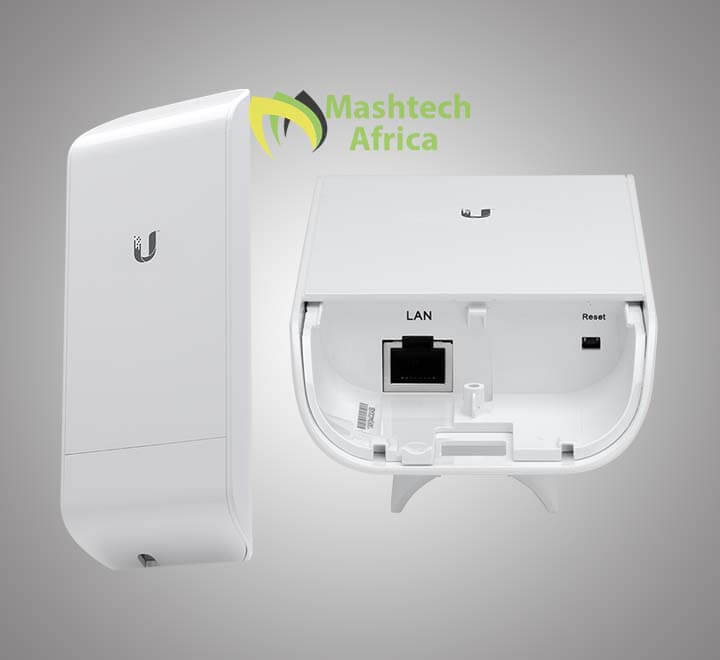

The Ubiquiti NanoStation M2 is a point-to-point (PtP) and point-to-multipoint (PtMP) wireless solution. The M2 version of Ubiquiti’s highly successful NanoStation series range has a radio throughput of up to 150Mbps. It features a dual internal antenna, one polarised vertically and one horizontally, with cross-polarity isolation.

The Ubiquiti NanoStation M2 provides a secondary ethernet port with software-enabled PoE output for seamless IP Video integration and is ideal for bridging.

NanoStation M5 Dual Ethernet with IP Camera

Time-division multiple access (TDMA) is a channel access method that allows several users to share the same frequency channel by dividing the signal into different time slots. This reduces the likelihood of interference from other channels in the area.

This unit is supplied with PSU and PoE injector and our fused UK plug adaptor.

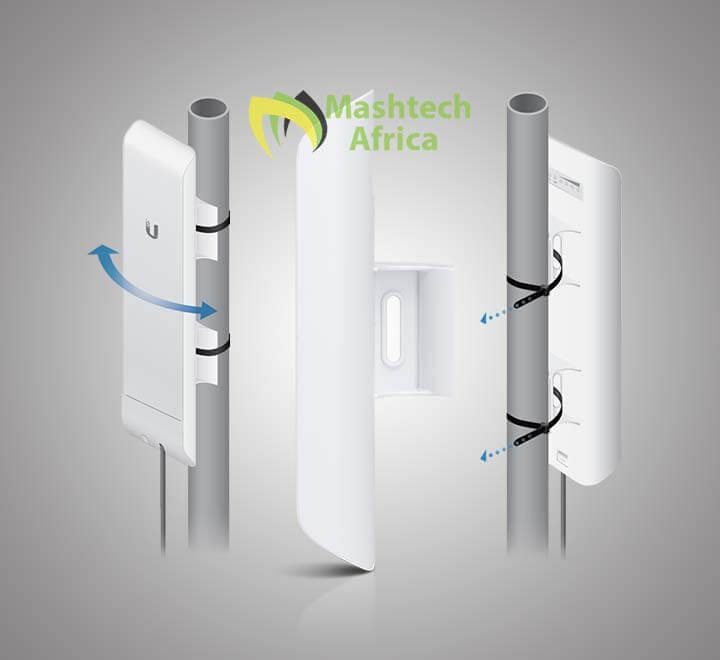

The NanoStation M2 is designed for pole mounting and is secured by heavy-duty UV-resistant cable ties that are supplied with it. Also, the NanoStation M2 can be used with the RF elements NanoBracket for complete easy alignment and mounting.



airMAX NanoStation M2 CPE Features

Frequency Range 2412-2462 MHz
Processor Specs Atheros MIPS 24KC, 400 MHz
Size of RAM 32 MB
Storage Type FLASH
Power Method Passive PoE
Max Power Consumption 8 W
Tested ambient temperature -30°C to 75°C
Antenna 55° (H-pol) / 53° (V-pol) / 27° (Elevation); 10.4-11.2 dBi
Wireless 802.11b/g/n
ETHERNET
10/100 Ethernet ports



Check out more info about NanoStation NSM2

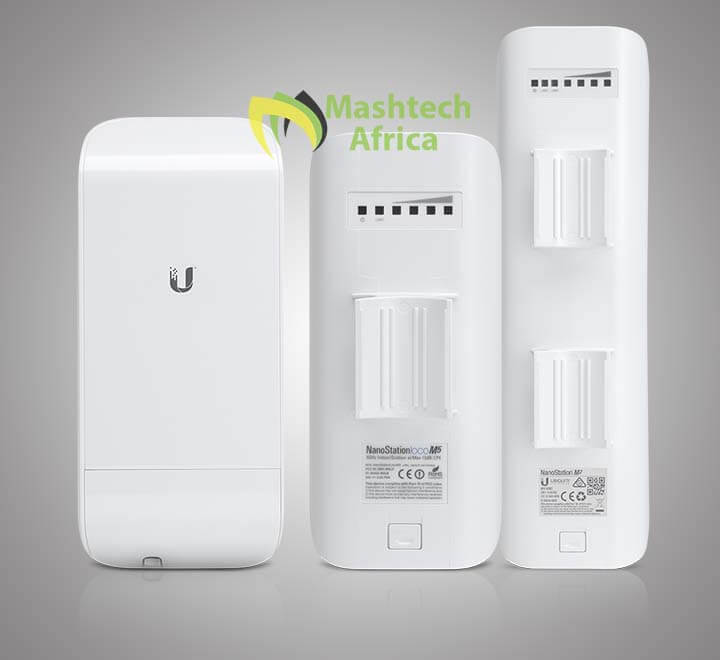

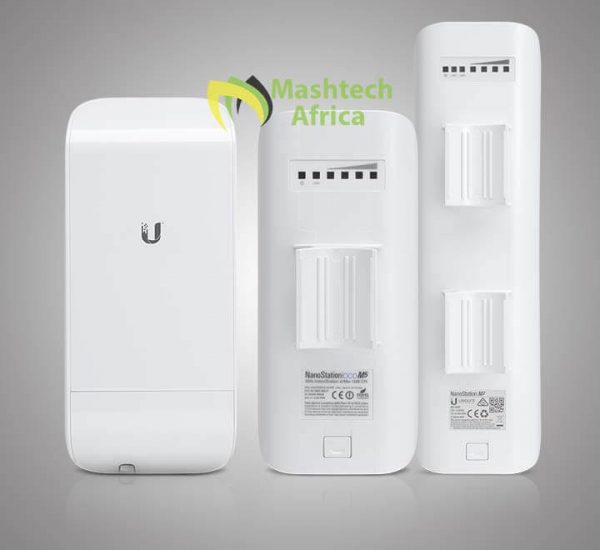

Model Comparison

locoM9
locoM9
NSM2
NSM2
locoM2
locoM2
NSM3
NSM3
NSM365
NSM365
Frequency 900 MHz 2.4 GHz 2.4 GHz 3 GHz 3.65 GHz
Throughput 150+ Mbps 150+ Mbps 150+ Mbps 150+ Mbps 150+ Mbps
Range 10+ km 13+ km 5+ km 15+ km 15+ km
NSM5
NSM5
locoM5
locoM5
Frequency 5 GHz 5 GHz
Throughput 150+ Mbps 150+ Mbps
Range 15+ km 10+ km
