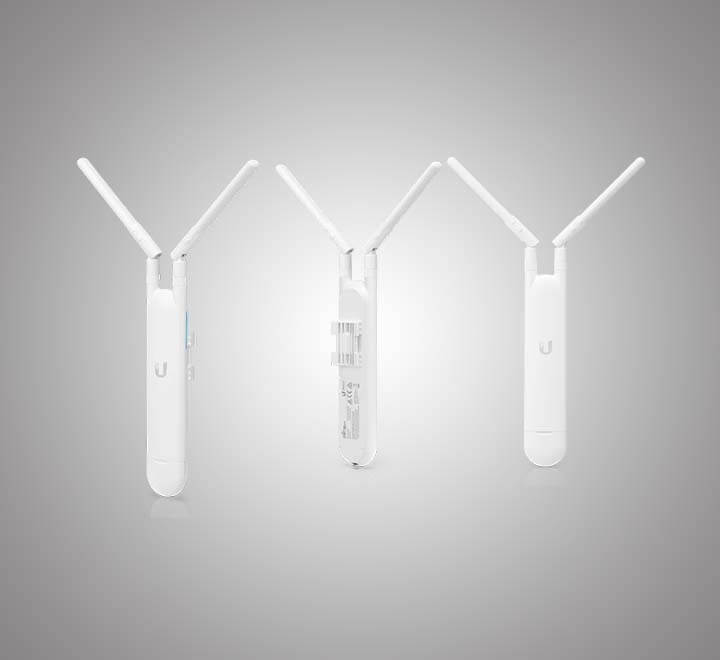

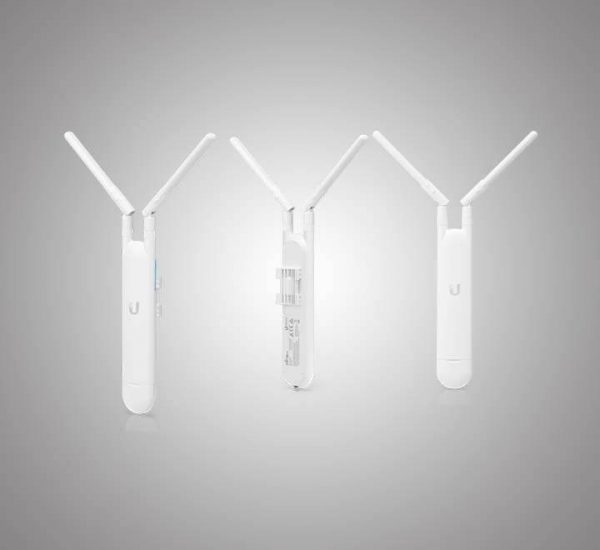

Ubiquiti Unifi Mesh Access Point UAP-AC-M

Availability:

9 in stock


  • The Ubiquiti UniFi Mesh Access Point UAP-AC-M is a simultaneous, dual-band, 3×3 MIMO technology, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps.
  • Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2×2 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band Omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.

SKU: UAP-AC-M

KSh 11,000.00

9 in stock

KSh 42,000.00 for 3 item(s)

Intelligent Wi-Fi Meshing Solution

The Ubiquiti UniFi AC Mesh Wi-Fi Access Point is a simultaneous dual-band, 2×2 MIMO meshing access point designed specifically for large indoor and outdoor deployments. Capable of speeds up to 1200Mbps and supporting up to 100 clients per AP, the UAP-AC-M is perfect for demanding environments such as public parks, shopping centers or for providing whole campus Wi-Fi.

With supports for multi-hop meshing, the UniFi AC Mesh can be deployed just about anywhere without each access point requiring existing data infrastructure. Just connect a 24v Passive or 802.3af power supply and ensure the device is with a range of another access point and the UAP-AC-M can start extending existing Wi-Fi coverage.

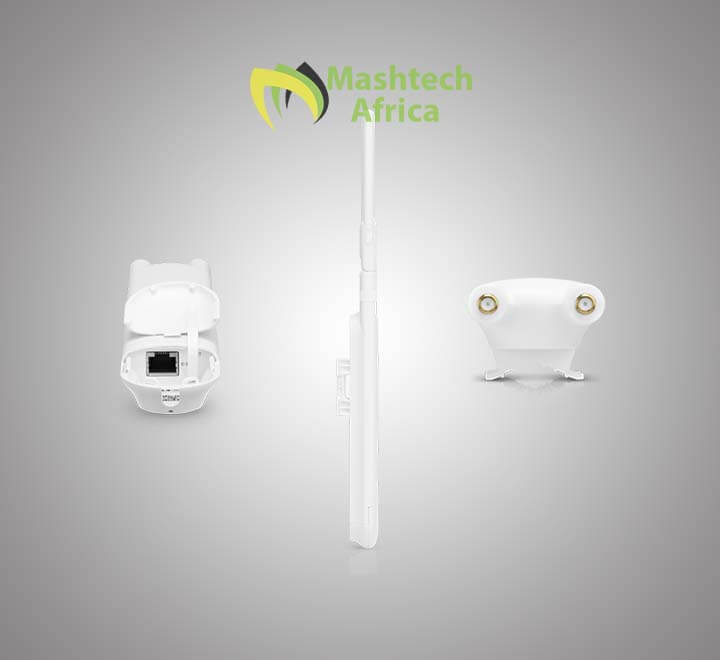

Two adjustable external Omni antennas are included with the UniFi AC Mesh Access Point. There is also the option to expand the coverage range and customize pattern shaping by using the included fast-mount adapter to install the AP on an optional connector’s antenna.

UniFi Controller Software

With the UniFi controller software, you can create a highly scalable, end-to-end system of devices spanning multiple locations across the world — all controlled by a single interface accessed via the Internet or local network.

The Unifi Controller is the brains of the entire UniFi Enterprise System. Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. The Unifi Controller allows you to manage thousands of UniFi AC Mesh Access Points, map out networks, manage networks across multiple locations, and can provide detailed analytics on the entire network environment.

Unifi Mesh Access Point Features

Networking Interface 2×2 WiFi dual-band / Ethernet Gigabit
Ports (1) 10/100/1000 Ethernet
Buttons Reset
Antennas 2 Dualband antennas
Wi-Fi Standards 802.11a/b/g/n/ac
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC)
Power Supply 24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption 8.5W
Max TX Power 20 dBm
BSSID Up to Four per Radio

Package Contents

  • 1x Quick Start Guide
  • 2x Omni Antenna
  • 1x 24V Gigabit PoE with Mount Bracket
  • 1x Fast-Mount Adaptor
  • 2x Screw Anchors
  • 2x Screws
  • 1x Ubiquiti UniFi UAP AC Mesh Access Point
  • 1x UK Mains Cable
  • 1x Wall Mount Bracket
  • 2x Zip Ties

Check out more info about UniFi UAP-AC-M

UAP-AC-LITE

UAP-AC-LITE

UAP-AC-LR

UAP-AC-LR

UAP-AC-PRO

UAP-AC-PRO

UAP-AC-EDU

UAP-AC-EDU

UAP-HD

UAP-HD

Dimensions ∅160 x 31.45 mm ∅175.7 x 43.2 mm ∅196.7 x 35 mm ∅287.5 x 125.9 mm ∅220 x 48.1 mm
Environment Indoor Indoor Indoor/Outdoor Indoor Indoor/Outdoor
2.4 GHz Speed 300 Mbps 450 Mbps 450 Mbps 450 Mbps 800 Mbps
5 GHz Speed 867 Mbps 867 Mbps 1300 Mbps 1300 Mbps 1733 Mbps
PoE Mode 802.3af/A PoE & 24V PoE 802.3af/A PoE & 24V PoE 802.3af PoE/802.3at PoE+ 802.3at PoE+ 802.3at PoE+
Ports (1) 10/100/1000 Ethernet (1) 10/100/1000 Ethernet (2) 10/100/1000 Ethernet (2) 10/100/1000 Ethernet (2) 10/100/1000 Ethernet
