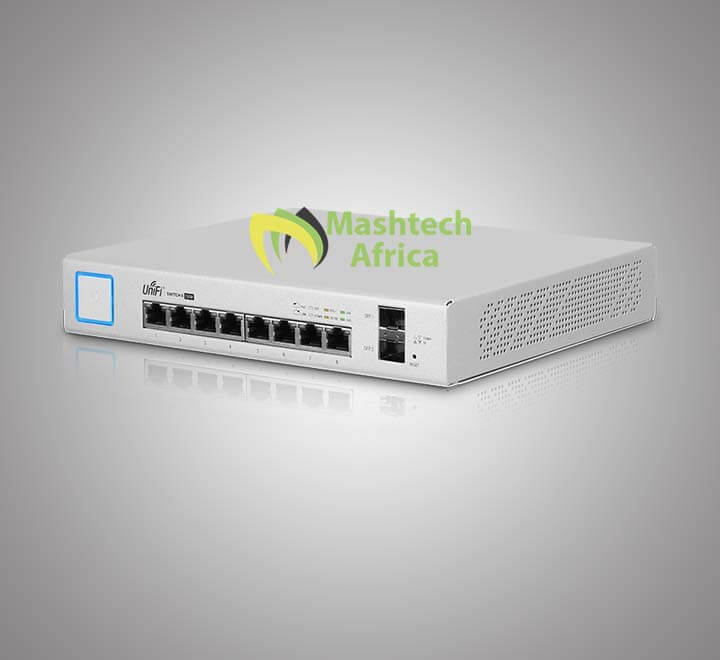

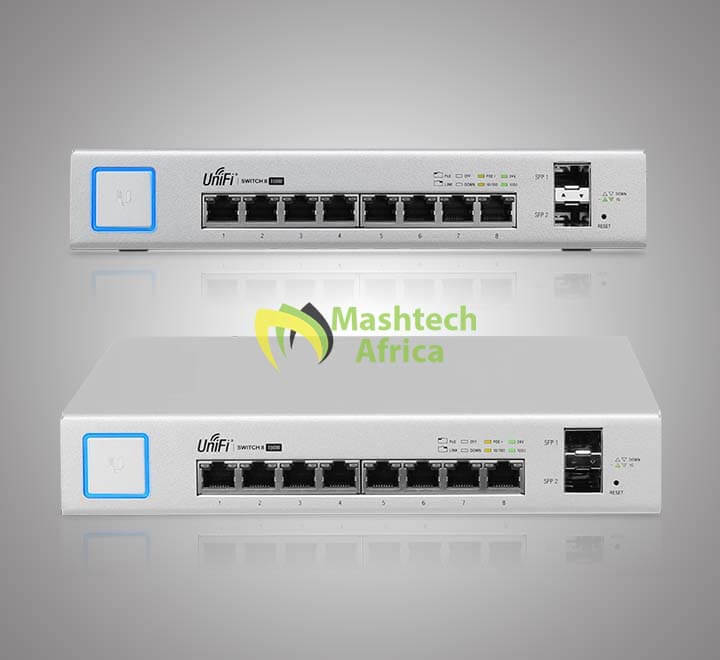

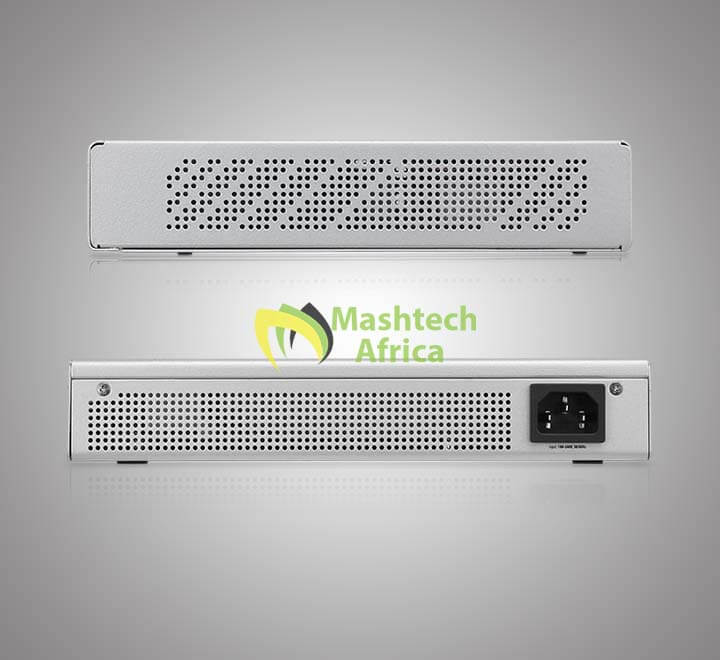

Ubiquiti Unifi Switch 8-port PoE US-8-150W

Availability:

8 in stock


  • Managed PoE+ Gigabit Switch with SFP
  • The fanless UniFi® Switch delivers quiet yet powerful performance with its 10 independent switching ports. Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity.
  • The fanless Ubiquiti Unifi Switch 8-port PoE delivers quiet yet powerful performance with its 10 independent switching ports. Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity.

SKU: US-8-150W

KSh 25,000.00 KSh 26,000.00

8 in stock

KSh 73,000.00 for 3 item(s)

Compact Form, Exceptional Performance

The small yet robust US-8-150W 8 Port PoE Switch is a fully managed, PoE+ Gigabit switch offering total non-blocking throughput of up to 10 Gbps. The US-8-150W offers 10 independent switching ports. Sharing 150W PoE, the 8 Gigabit RJ45 ports offer auto-sensing IEEE802.3af/at PoE/PoE+ as well as 24V passive PoE. whilst the 2 SFP ports provide fiber connectivity options with uplinks of up to 1 Gbps.

The included Mounting Accessories support any orientation wall-mount and desk/shelf mounting.

Cloud Controller

The UniFi Switch is controlled by the UniFi Controller. Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download it from www.ubnt.com at no extra charge there is no separate software, licensing, or support fee. A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Versatile Port Configuration

Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

Wall Mounting

The included Mounting Accessories support any orientation wall-mount and desk/shelf mounting.

Sleek Design and Management

The compact UniFi Switch can be placed on a desktop and integrates with the UniFi Controller software for centralized management of your UniFi devices.

Ubiquiti UniFi Switch 8 Key Features
(8) Gigabit RJ45 Ports
(2) SFP Ports
Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Maximum Power Consumption: 150W
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Desktop-Mountable (Do not physically stack the US-8-150W.)

Switching Performance
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE+ Flexibility
The UniFi Switch models are available with 8, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

Fiber Connectivity
The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps. Each 48-port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

Ubiquiti UniFi Switch 8 – Technical Specifications

General
Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25″)
Weight 1.7 kg (3.75 lb)
Total Non-Blocking Throughput 10 Gbps
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps
Max. Power Consumption Including PoE Output Excluding PoE Output
150W 20W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
LEDs Per Port RJ45 Data Ports SFP Data Ports
PoE, Speed/Link/Activity Speed/Link/Activity
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface Ethernet In-Band
Certifications CE, FCC, IC
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard

Power
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V

Package Contents

  • 1x EU Mains Cable
  • 1x Ubiquiti UniFi 8 Port 150W Managed PoE Switch
  • 1x UK Mains Cable

Product Features

  • Non-Blocking Throughput Switching Performance
  • Gigabit Ethernet RJ45 and SFP Ports
  • Auto-Sensing IEEE 802.3af/at PoE

Check out more info about Unifi Switch 8-port PoE US-8-150W
