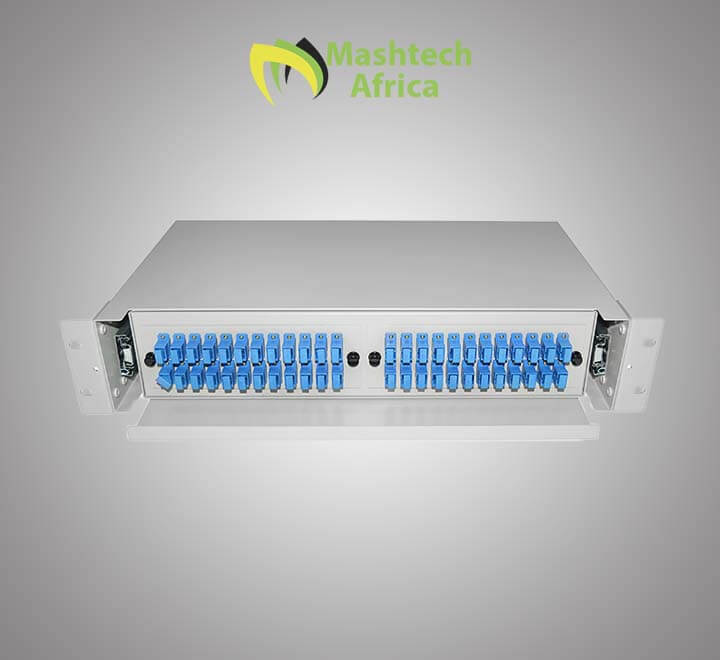

1U Fiber Optic Patch Panel Rack Mount 48 Core ODF With Pigtails SC

Fibre Optics
Availability:

6 in stock
Add to wishlist
Compare
  • 19” ,1~4 U standard structure, rack mounting
  • Applicable in the termination
  • Available for FC,LC,SC,ST adapter
  • Adapter and related plates easy to assemble and exchange

SKU: OTB-OO6

$89.48 $91.48

6 in stock

Compare
$146.42 for 2 item(s)

19″ ODF Fiber Optic Joint Box , sliding fiber optic patch panel 48 port with FC adapter

Suitable for the protective connection between cables and pigtails
Suitable for the connection between optical cables and optical communication device
unique structure, easy installation, for indoor use

Components:

Cover, inner components, fiber connecting protector Inner components
a. Cover: the cover should be easily opened for easy installation; it should be provided with an outlet device for fiber metal high voltage protective earthing;
b. Inner components as follows:

Bracket: supporting the inner structure.

Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers, with the length being about no less than 1.6m; the curve radius of the coiled spare fiber should be no less than 37.5mm; makes that are easily recognizable should be provided for reconnection of fibers; should have adequate room for convenient operation;

Fixing Device: used for the fixation of fiber protective tubes and the fixation of pigtails.

Application

  • fiber to the building (FTTB)
  • optical network
  • local area networks
  • wide area networks

SKU: OTB-OO6 Category: Tags: , ,
Brands

Fibre Optics

Fiber Optic Patch Panel Specification:



Environment temperature:-25ºC~+45ºC
Relative humidity:≤85%(30ºC)
Atmosphere pressure:70~106KPa
Insulated Resistance:≥2×10MΩ/500V(DC)
Intensity≤15KV(DC)/1minno spark-over and no flying arc
Fiber bending radium guaranteed more than 40mm:≥40mm
Application: It is applicable for straight-through connection and diverged
connection in aerial layout , duct and direct buried. It can protect fiber
connectors.



Operating
Wavelength(nm)		 820±40/980±40/
1310±40/1550±40		 980&1550±40/
1310&1490&1550±40		 Parameter Unit Value
Coupling
Ratio (%)		 Insertion Loss (dB) Fiber Type / Hi 780/ Flex 1060/
SMF-28e/ SMF-28e XB
Tap Signal Tap Signal
01/99 19.0-21.0 ≤0.20 18.5-21.5 ≤0.25 PDL dB Typ.:<0.1 Max.:<0.15
03/97 14.6-16.2 ≤0.30 14.5-16.5 ≤0.30 Directivity dB >55
05/95 12.4-13.8 ≤0.35 12.0-14.5 ≤0.45 Return Loss dB >50
10/90 9.70—10.7 ≤0.60 9.70-11.2 ≤0.60 Excess Loss dB Typ.:<0.1 Max.:<0.2
20/80 6.70—7.60 ≤1.15 6.60—7.80 ≤1.15 Pigtail Dia. mm 0.25 /0.9 / 2 / 3
33/67 4.65—5.65 ≤1.70 4.50—5.85 ≤1.80 Pigtail Length cm >100
40/60 3.95—4.30 ≤2.50 3.70—4.70 ≤2.70 Operating Tem. ºC -10~ +70
50/50 2.85—3.30 2.80—3.40 Storage Tem. ºC -40~ +85



Parameter:



Environmental temperature: -25 – 55°C
Relative humidity: <85%(when the temperature is below 30°C)
Atmosphere pressure: 70~106Kpa
Insulating resistance: >2×104 MΩ/500VDC
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
