Huawei HG8545M5 | ONT | WiFi, 1x GPON, 1x RJ45 1000Mb/s, 1x RJ11,

Huawei
Availability:

8 in stock
Add to wishlist
Compare

HG8545M5 – GPON optical network terminal – ONT

Huawei HS8545M5 is a high-end fiber To The Home technology. The terminal uses the GPON standard, which offers download speeds up to 2488 Mb/s and upload speeds up to 1244 Mb/s. HG8545M5 terminal offers broadband access, which is available for home users and SOHO users. The ONT terminal by Huawei provides excellent quality of VoIP, Internet and HD video services thanks to high-quality transmission functions such as Wi-Fi and VoIP. Therefore, the HG8545M5 is a great terminal solution for FTTH service.

Main features of the ONT terminal

  • GPON ONT terminal class B+
  • Fiber optic connector GPON SC/UPC port
  • 4 LAN Ethernet ports, including 1 Giga-bit and 3 Fast Ethernet ports
  • 1 USB port
  • 1 phone port (POTS RJ11)
  • 802.11b/g/n 2.4 GHz Wi-Fi transmission
  • 2 x 2 dBi antenna

SKU: HG8546M





Compare

Description

CODE: HUAWEI HG8545M5 GPON(8540

HG8545M5 – GPON optical network terminal – ONT

Huawei HS8545M5 is a high-end fiber To The Home technology. The terminal uses the GPON standard, which offers download speeds up to 2488 Mb/s and upload speeds up to 1244 Mb/s. HG8545M5 terminal offers broadband access, which is available for home users and SOHO users. The ONT terminal by Huawei provides excellent quality of VoIP, Internet and HD video services thanks to high quality transmission functions such as Wi-Fi and VoIP. Therefore, the HG8545M5 is a great terminal solution for FTTH service.

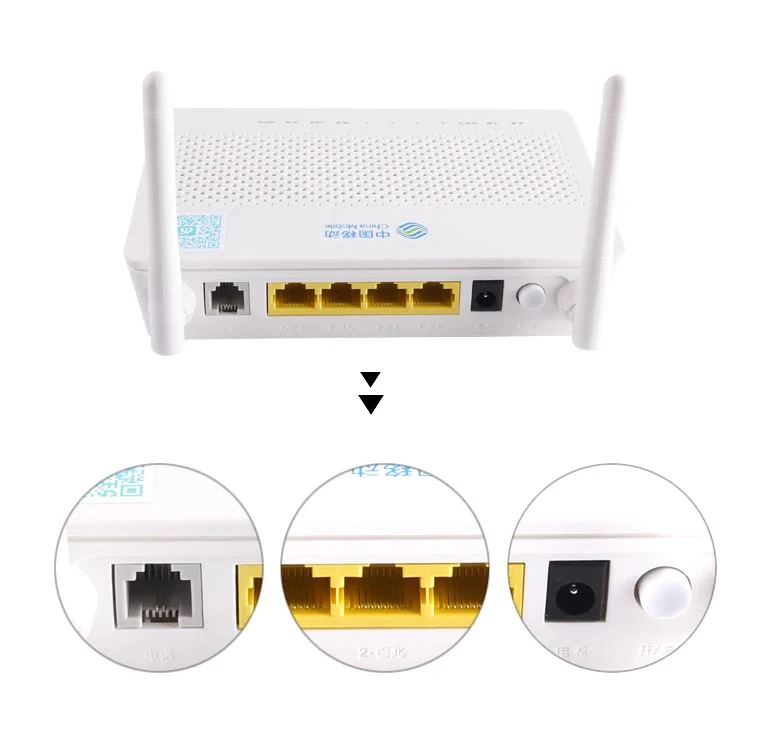

HG8545M5 inputs and outputs

Concealed functionality in a compact size

Huawei GPON ONU HS8545M5 is equipped with a Class B+ GPON port, one Gigabit port and 3 Fast Ethernet ports. The device has a wireless card operating in 2.4 GH band with IEEE 802.11 B/G/N 2×2 MIMO technology. The terminal also has a VOIP port with RJ-11 socket, which allows to make phone calls with a traditional POTS device via VoIP. The device protects the small size housing, in white.

Front HG8245m5

Main features of the ONT terminal

  • GPON ONT terminal class B+
  • Fiber optic connector GPON SC/UPC port
  • 4 LAN Ethernet ports, including 1 Giga-bit and 3 Fast Ethernet ports
  • 1 USB port
  • 1 phone port (POTS RJ11)
  • 802.11b/g/n 2.4 GHz Wi-Fi transmission
  • 2 x 2 dBi antenna

Do you have any questions about the  HG8545M5?

Contact us now via Live Chat or E-Mail: sales@mashtechafrica.com, sales.ug@mashtechafrica.com

SKU: HG8545M5 Category: Tags: , , , , , , , ,
Brands

Huawei

SPECIFICATION

Interfaces
GPON Class B+
Sensitive reception: ~-27 dBm
Flexible mapping between the GEM and TCONT ports
Wavelength: US 1310 nm, DS 1490 nm
Ethernet 1GE (10/100/1000Base-t) + 3FE (10/100Base-t)
POTS 1 SIP and H.248 protocol
USB 1 USB 2.0 port
Possibility to create a network drive based on FTP
WLAN IEEE 802.11 B/G/N 2.4 GHz
2×2 MIMO
2 dBi antenna gain
WMM
SSID
WPS
Connection type SC/UPC
Physical characteristics
Dimensions 155 x 143 x 28 mm
Weight < 500 g
Permissible operating temperature 0 to 40 degrees C
Permissible air humidity 5%-95% RH, non-condensing
Power input 100-240 V AC, 50 – 60 Hz
System power supply 11 – 14 V DC, 1 A
Static power consumption 6 W
Maximum power consumption 14 W
LEDs POWER/ PON/ FATE/ LAN/ TEL/ USB/ WLAN/ WPS
Set composition Huawei device HG8545m5
12 V, 1 A DC power supply
Functionality
Security SMAC/ IP/ URL filter
Anti-DOS Attack
SPI Firewall
Multicast IGMP v2/v3 snooping
IGMP v2 proxy
IGMP v3 proxy
MLD v1/v2 snooping
Routing 8 WAN interfaces
NAT function
Internet, IPTV and VoIP services are automatically linked to ONT ports
Virtual Server, Trigger Port
IPv6 functions IPv6/IPv4 dual stack
DS-Lite
MLD snooping
Configuration method NMS, Web or TR069
