EX3400-24T Overview
EX3400-24T is a Juniper EX3400 switch with 24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
Quick Spec
Table 1 shows the quick spec.
| SKU | EX3400-24T |
| Ports | 24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Backplane speed | 160 Gbps |
| Data rate | 288 Gbps |
| Throughput | 214 Mpps (wire speed) |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
Product Details

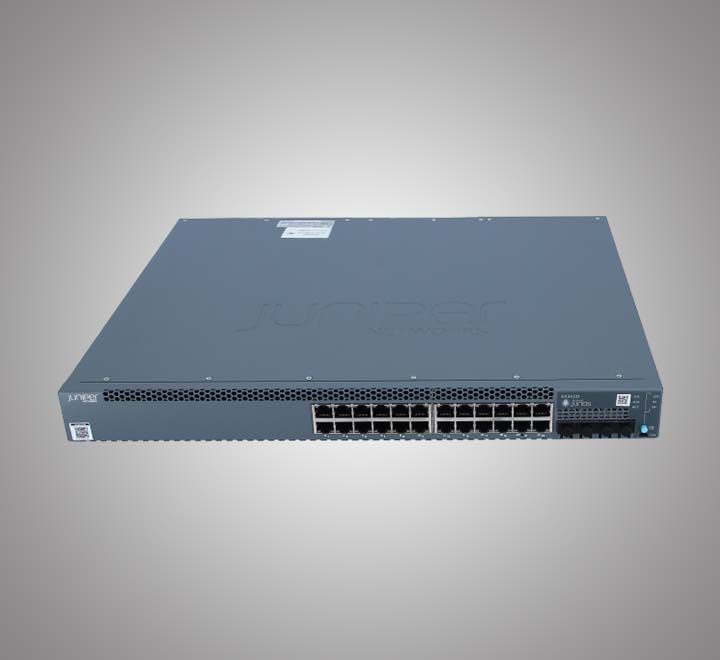

Figure 1 shows the front panel of EX3400-24T.
Note:
| ① | RJ-45 ports | ④ | Factory Reset/Mode button |
| ② | Uplink ports | ⑤ | Port status mode LEDs |
| ③ | Mini-USB console port | ⑥ | Chassis status LEDs |

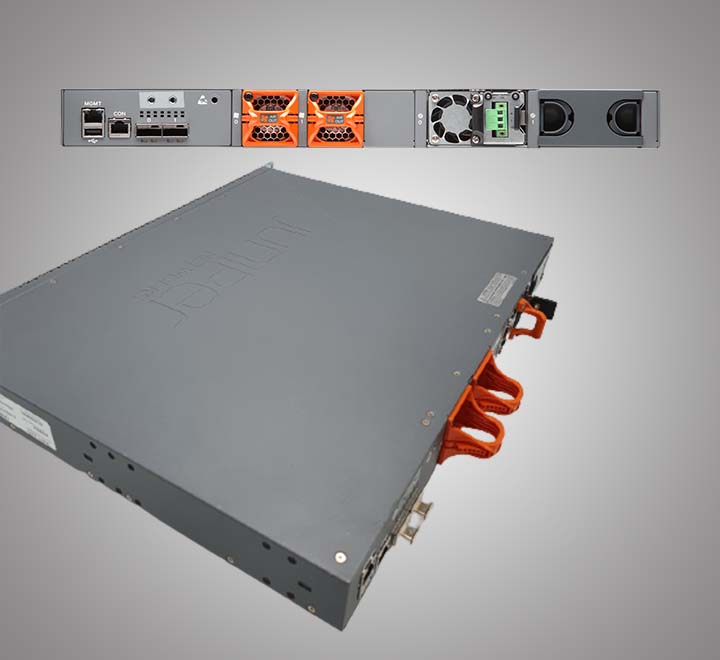

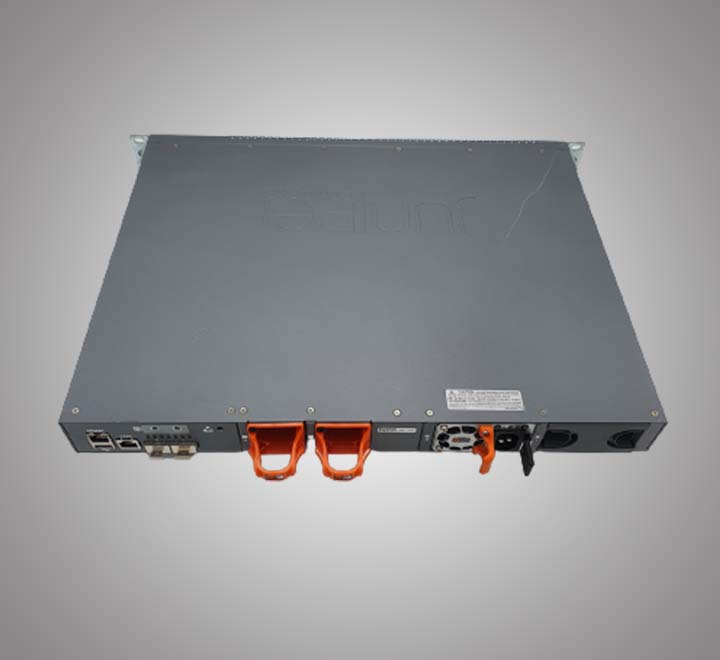

Figure 2 shows the rear panel of EX3400 AC chassis.
Note:
| ① | Management Ethernet port | ⑦ | AC power supply |
| ② | Protective earthing terminal | ⑧ | Serial Number ID Label |
| ③ | ESD point | ⑨ | QSFP+ uplink ports |
| ④ | Fan modules | ⑩ | RJ-45 console port |
| ⑤ | CLEI code label | ⑪ | USB port |
| ⑥ | Empty slot for power supply covered by a blank panel |
Compare to Similar Items
Table 2 shows the comparison.
| SKU | EX3400-24T | EX3400-24P | EX3400-48T | EX3400-48P |
| Ports | 24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) | 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) | 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+ | 48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Backplane speed | 160 Gbps | 160 Gbps | 160 Gbps | 160 Gbps |
| Data rate | 288 Gbps | 288 Gbps | 336 Gbps | 336 Gbps |
| Throughput | 214 Mpps (wire speed) | 214 Mpps (wire speed) | 250 Mpps (wire speed) | 250 Mpps (wire speed) |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
Get More Information
Do you have any questions about the EX3400-24T?
Contact us now via Live Chat or E-Mail: sales@mashtechafrica.com, sales.ug@mashtechafrica.com
| Brands | Juniper product |
|---|
EX3400-24T Specification
EX3400-24T Specification |
|
| Description | EX3400 24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Form factor | Fixed platform Virtual Chassis configuration consisting of up to 10 switches Junos Fusion Enterprise Satellite device |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
| Backplane speed | 160 Gbps |
| Data rate | 288 Gbps |
| Throughput | 214 Mpps (wire speed) |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | 2 |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 unicast/4 multicast |
| MAC addresses | 32,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 36,000/4,000 |
| IPv6 unicast/multicast routes | 18,000/2,000 |
| Number of VLANs | 4,096 |
| ARP entries | 16,000 |
