SRX320-SYS-JB Juniper SRX320 Services Gateway
8 in stock
Description
Name: SRX320-SYS-JB
Model: SRX320-SYS-JB – Juniper SRX Series Service Gateways
Detail: SRX320 Services Gateway includes hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software
SRX320-SYS-JB is a SRX320 Services Gateway including hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK is not included. The SRX320 Services Gateway consolidates security, routing, switching, and WAN interfaces for small distributed enterprises. With advanced threat mitigation capabilities, the services gateway provides cost-effective and secure connectivity across distributed enterprises.
SKU: SRX320-SYS-JB
Compare
-
Gateway
SRX320-SYS-JB Juniper SRX320 Services Gateway
Description
Name: SRX320-SYS-JB
Model: SRX320-SYS-JB – Juniper SRX Series Service Gateways
Detail: SRX320 Services Gateway includes hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos SoftwareSRX320-SYS-JB is a SRX320 Services Gateway including hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK is not included. The SRX320 Services Gateway consolidates security, routing, switching, and WAN interfaces for small distributed enterprises. With advanced threat mitigation capabilities, the services gateway provides cost-effective and secure connectivity across distributed enterprises.
SKU: SRX320-SYS-JB
<!---->
SKU: SRX320-SYS-JB -
Gateway
SRX300-SYS-JB Juniper SRX300 Services Gateway
Description
Juniper Networks® SRX300 line of services gateways delivers a next-generation networking and security solution that supports the changing needs of cloud-enabled enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy-to-manage, secure connectivity and advanced threat mitigation capabilities.
SKU: SRX300-SYS-JB
<!---->
SKU: SRX300-SYS-JB
SRX320-SYS-JB Overview
SRX320-SYS-JB is a SRX320 Services Gateway including hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK is not included. The SRX320 Services Gateway consolidates security, routing, switching, and WAN interfaces for small distributed enterprises. With advanced threat mitigation capabilities, the services gateway provides cost-effective and secure connectivity across distributed enterprises.
Quick Spec
Table 1 shows the quick spec.
| SKU | SRX320-SYS-JB |
| Description | SRX320 Services Gateway includes hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 1 Gbps |
| IPS performance | 100 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 250 Mbps |
| Maximum concurrent sessions | 64,000 |
| New sessions/second (sustained, TCP, 3-way) | 5000 |
| Maximum security policies | 1000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
Product Details

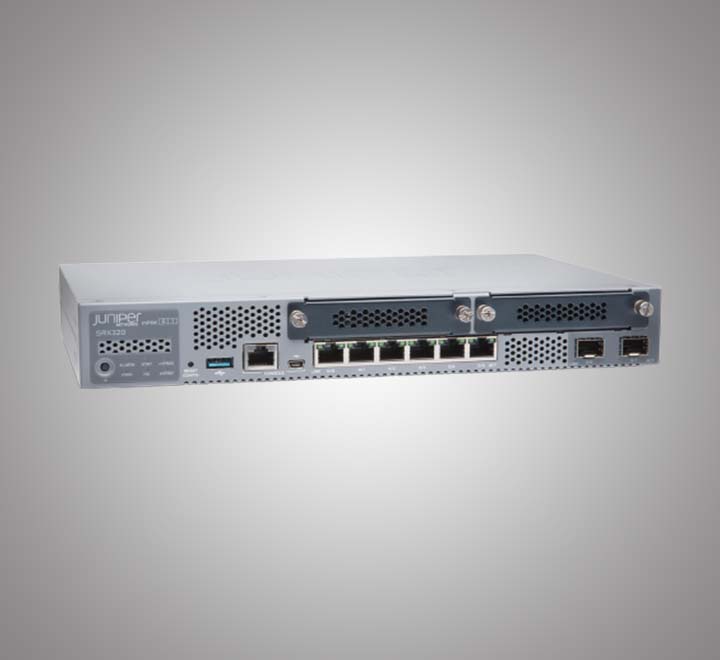

Figure 1 shows the front panel of SRX320 Chassis.
Note:
| ① | Power button | ④ | USB port | ⑦ | 1 G Ethernet ports |
| ② | LEDs | ⑤ | Console port | ⑧ | 1 G SFP ports |
| ③ | Reset Config button | ⑥ | Mini-USB port | ⑨ | Mini-PIM slots |

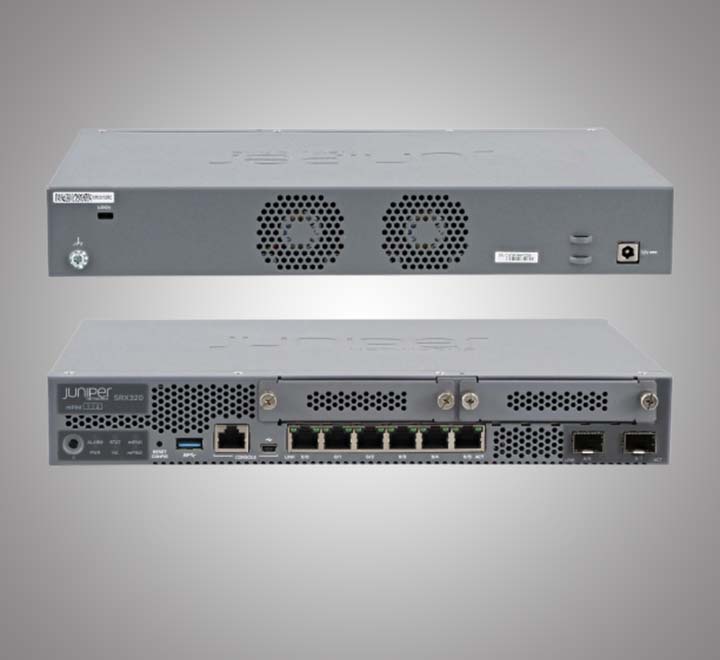

Figure 2 shows the rear panel of SRX320 Chassis.
Note:
| ① | Lock |
| ② | Grounding point |
| ③ | Fans |
| ④ | Cable tie holder |
| ⑤ | Power supply input |
Compare to Similar Items
Table 2 shows the comparison.
|
SKU |
SRX320 | SRX320-SYS-JB | SRX320-SYS-JE |
|
Description |
SRX320 (Hardware Only, require SRX320-JSB or SRX320-JSE to complete the System) with 8GE (w 2x SFP), 4G RAM, 8G Flash and 2x MPIM slots. Includes external power supply and cable. RMK not included |
SRX320 Services Gateway includes hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included |
SRX320 Services Gateway includes hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). RMK not included |
|
Firewall performance (max) |
1 Gbps |
1 Gbps |
1 Gbps |
|
IPS performance |
100 Mbps |
100 Mbps |
100 Mbps |
|
AES256+SHA-1 / 3DES+SHA-1 VPN performance |
250 Mbps |
250 Mbps |
250 Mbps |
|
Maximum concurrent sessions |
64,000 |
64,000 |
64,000 |
|
New sessions/second (sustained, TCP, 3-way) |
5000 |
5000 |
5000 |
|
Maximum security policies |
1000 |
1000 |
1000 |
Get More Information
Do you have any questions about the SRX320-SYS-JB?
Contact us now via Live Chat or E-Mail: sales@mashtechafrica.com, sales.ug@mashtechafrica.com
| Brands | Juniper product |
|---|
SRX320-SYS-JB Specification
SRX320-SYS-JB Specification |
|
| Description | SRX320 Services Gateway includes hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 1 Gbps |
| IPS performance | 100 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 250 Mbps |
| Maximum concurrent sessions | 64,000 |
| New sessions/second (sustained, TCP, 3-way) | 5000 |
| Maximum security policies | 1000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
| Total onboard ports | 8x1GbE |
| Onboard RJ-45 ports | 6x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 2x1GbE |
| MACsec-capable ports | 2x1GbE |
| Out-of-band (OOB) management ports | 0 |
| Mini PIM (WAN) slots | 2 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | 6 |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| SSD slots | 0 |
| Form factor | Desktop |
| Size (WxHxD) | 11.81 x 1.73 x 7.52 in. (29.99 x 4.39 x 19.10 cm) |
| Redundant PSU | No |
| Power supply | AC (external) |
| Maximum PoE power | 180 W |
| Average power consumption | 46 W/221 W |
| Average heat dissipation | 157 BTU/h/755 BTU/h |
| Maximum current consumption | 0.634 A/2.755 A |
| Airflow/cooling | Front to back |
| Operational temperature | 32° to 104° F (0° to 40° C) |
| Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
