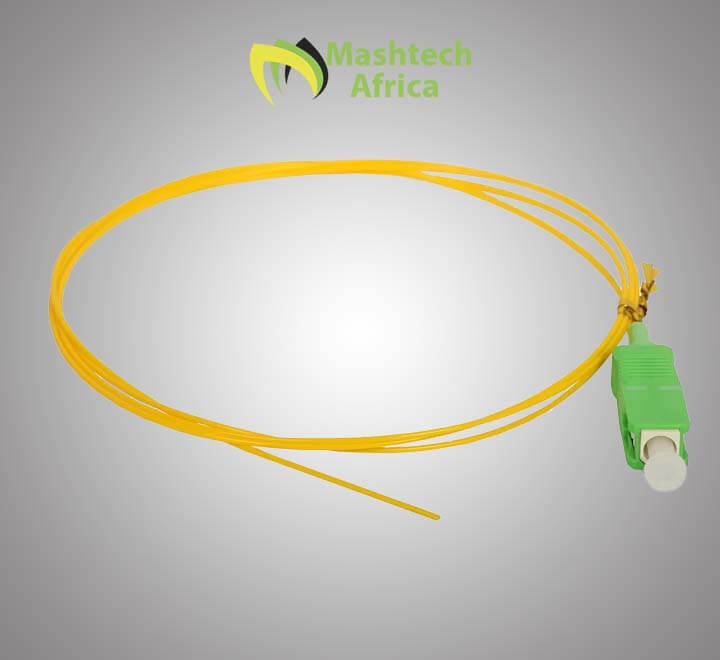

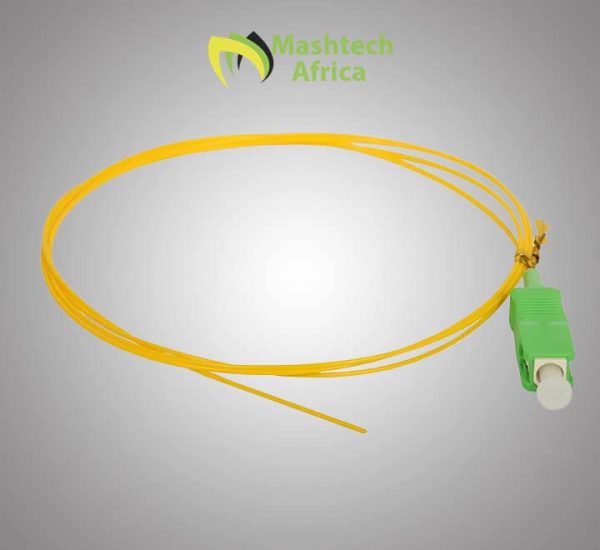

Fiber Optic Pigtail
ATB With SC/ APC Simplex Adapter
Availability:
5 in stock
- Name: Simplex Fiber pigtails
- Fiber end-face: PC, UPC, APC
- Fiber brand: YOFC, Corning
- Fiber mode: G652D, G657A1, G657A2
- Cable diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
- Cable core: simplex, duplex, 6core,12core, 24core, 48core
SKU: FO-SC-APC-SA
$2.44
5 in stock
Compare-
Fiber Optic Pigtail
ATB With SC/ APC Simplex Adapter
- Name: Simplex Fiber pigtails
- Fiber end-face: PC, UPC, APC
- Fiber brand: YOFC, Corning
- Fiber mode: G652D, G657A1, G657A2
- Cable diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
- Cable core: simplex, duplex, 6core,12core, 24core, 48core
SKU: FO-SC-APC-SA
SKU: FO-SC-APC-SA -
Fiber Optic Pigtail
ATB With SC/ APC and SC/ APC Simplex Pigtail
- SC-APC Singlemode Fiber Optic Pigtail Simplex 1M – Teleweaver
- SC-APC Singlemode Fiber Optic Pigtail is a connecting SC-APC connector with a single-mode fiber cable in the end.
- Normally Single-mode Fiber Optic Pigtail is simplex, but also has multi-core fiber, they are all available for Active device termination installations
- SC-APC single-mode fiber optic pigtails have different colors and meter numbers, 0.9/2.0/3.0mm wire diameter.
- We design, manufacture, and test our fiber optic pigtail according to protocol and performance under industry standards.
SKU: FO-SC-APC-SMP
SKU: FO-SC-APC-SMP
$3.66 for 2 item(s)
Optical access network SC APC Simplex Fiber Pigtail with SM Yellow Fiber Optic Cable
Features:
- Good interchange
- Good repeatability
- Low insertion loss, high return loss
- Clean and Scratch-Free End Face
- High Quality 100% Factory Tested
- 3D fiber interferometer is available
Applications:
- Telecommunication networks
- Fiber optic communication networks
- CATV, LAN, MAN, WAN, Test &Measurement
- Optical access network
| Brands | Fibre Optics |
|---|
Technical Specifications
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
