-6%
cnMatrix

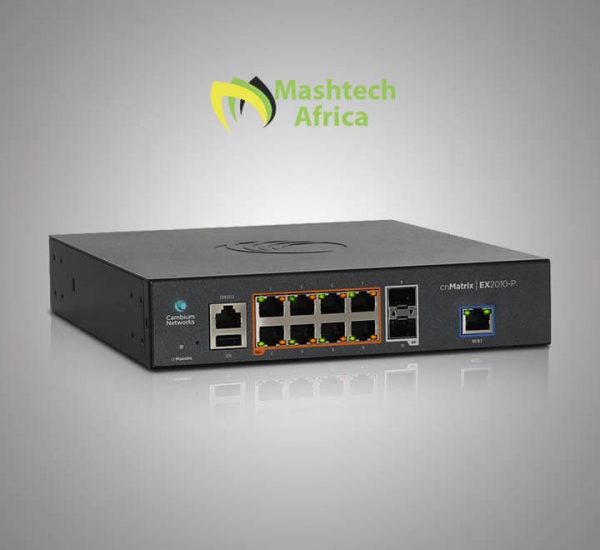

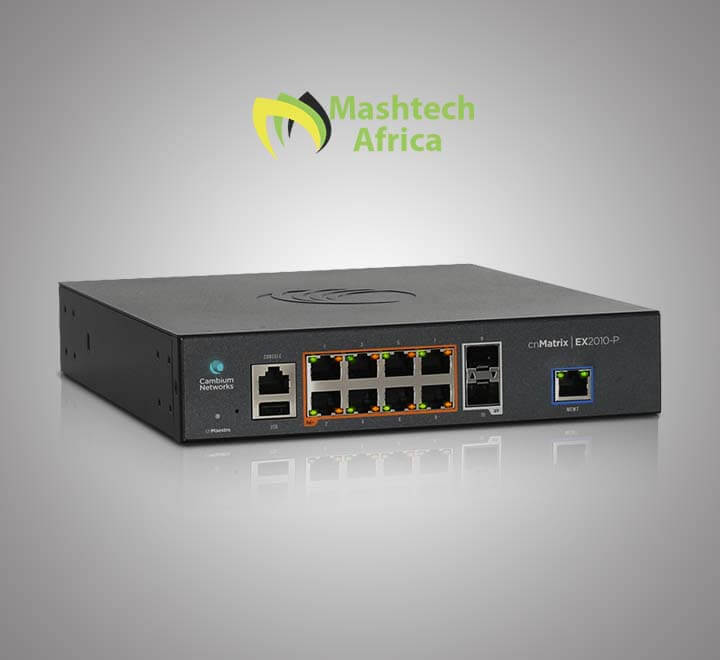

Cambium cnMatrix EX2010-P PoE Switch
Availability:
8 in stock
- Improve network performance while reducing the time and cost of provisioning and management
- IT teams, MSPs, and ISPs need to rapidly provide an optimal network experience for users and devices. Network operators are seeking simplicity, flexibility, and automation to improve performance. Cloud Networking solutions with cnPilot™ Wi-Fi, cnMatrix™ switching, and cnMaestro™ cloud management from Cambium Networks deliver an optimal client experience while maintaining robust security and reducing cost.
- A proven leader in providing global communications solutions, Cambium Networks simplifies network operations. Our Cloud-Managed Intelligent Edge Enterprise Access Solution makes the network resilient, easy to operate, high performance, and agile; providing cost-effective wired/wireless connectivity for network operators. The entire purpose-built end-to-end network is managed from a “bird’s eye view” by the free cnMaestro management system.
- Cambium Networks’ next-generation switching platform offers a cloud-managed, high-performance, feature-rich enterprise-grade Ethernet switching solution. The cnMatrix™ platform of switches provides:
- Easy and simple free cloud management with cnMaestro
- Zero touch deployment of switches makes deployment easy
- Zero touch policy-based configuration enables automation, reduces errors and network downtime
- Device profiling, automatic port configuration, and network segmentation improves the security posture of the network
- Wireless Aware: Together with Cambium Networks cnPilot Wi-Fi solution, enables a simple, easy-to-use cloud-managed Unified Wired-Wireless access solution
- Affordable, high quality, and enterprise-grade Layer 2, Layer 3 feature set
- The cnMatrix series of fully managed switches delivers full Layer2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The cnMatrix switch series offers flexibility with 4 – 10 Gbps (SFP+) uplinks on the 28 port models while offering 2 – 1Gbps (SFP) uplink ports on the 10 port models.
SKU: MX-EX2010PxA-U
$618.21 $654.48
8 in stock
Compare-
cnMatrix
Cambium cnMatrix EX2010-P PoE Switch
- Improve network performance while reducing the time and cost of provisioning and management
- IT teams, MSPs, and ISPs need to rapidly provide an optimal network experience for users and devices. Network operators are seeking simplicity, flexibility, and automation to improve performance. Cloud Networking solutions with cnPilot™ Wi-Fi, cnMatrix™ switching, and cnMaestro™ cloud management from Cambium Networks deliver an optimal client experience while maintaining robust security and reducing cost.
- A proven leader in providing global communications solutions, Cambium Networks simplifies network operations. Our Cloud-Managed Intelligent Edge Enterprise Access Solution makes the network resilient, easy to operate, high performance, and agile; providing cost-effective wired/wireless connectivity for network operators. The entire purpose-built end-to-end network is managed from a “bird’s eye view” by the free cnMaestro management system.
- Cambium Networks’ next-generation switching platform offers a cloud-managed, high-performance, feature-rich enterprise-grade Ethernet switching solution. The cnMatrix™ platform of switches provides:
- Easy and simple free cloud management with cnMaestro
- Zero touch deployment of switches makes deployment easy
- Zero touch policy-based configuration enables automation, reduces errors and network downtime
- Device profiling, automatic port configuration, and network segmentation improves the security posture of the network
- Wireless Aware: Together with Cambium Networks cnPilot Wi-Fi solution, enables a simple, easy-to-use cloud-managed Unified Wired-Wireless access solution
- Affordable, high quality, and enterprise-grade Layer 2, Layer 3 feature set
- The cnMatrix series of fully managed switches delivers full Layer2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The cnMatrix switch series offers flexibility with 4 – 10 Gbps (SFP+) uplinks on the 28 port models while offering 2 – 1Gbps (SFP) uplink ports on the 10 port models.
SKU: MX-EX2010PxA-U
SKU: MX-EX2010PxA-U -
cnMatrix
Cambium cnMatrix EX2010 Switch
- Improve network performance while reducing the time and cost of provisioning and management
- IT teams, MSPs and ISPs need to rapidly provide an optimal network experience for users and devices. Network operators are seeking simplicity, flexibility and automation to improve performance. Cloud Networking solutions with cnPilot™ Wi-Fi, cnMatrix™ switching, and cnMaestro™ cloud management from Cambium Networks deliver an optimal client experience while maintaining robust security and reducing cost.
- A proven leader in providing global communications solutions, Cambium Networks simplifies network operations. Our Cloud Managed Intelligent Edge Enterprise Access Solution makes the network resilient, easy to operate, high performance, and agile; providing cost effective wired/wireless connectivity for network operators. The entire purpose-built end-to-end network is managed from a “bird’s eye view” by the free cnMaestro management system.
- Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution. The cnMatrix™ platform of switches provides:
- Easy and simple free cloud management with cnMaestro
- Zero touch deployment of switches makes deployment easy
- Zero touch policy based configuration enables automation, reduces errors and network downtime
- Device profiling, automatic port configuration and network segmentation improves security posture of the network
- Wireless Aware: Together with Cambium Networks cnPilot Wi-Fi solution, enables a simple, easy-to-use cloud managed Unified Wired-Wireless access solution
- Affordable, high quality and enterprise grade Layer 2, Layer 3 feature set
- The cnMatrix series of fully managed switches delivers full Layer2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The cnMatrix switch series offers flexibility with 4 – 10 Gbps (SFP+) uplinks on the 28 port models while offering 2 – 1Gbps (SFP) uplink ports on the 10 port models.
SKU: MX-EX2010xxA-U
SKU: MX-EX2010xxA-U
$976.22 for 2 item(s)
Improve network performance while reducing the time and cost of provisioning and management
cnMatrix™ EX2010-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature-rich, high-quality unified wired/ wireless enterprise grade network with cnMatrix EX2010-P.
Benefits:
- Save time, and reduce costs with a true Zero Touch initial deployment
- Reduce network misconfiguration mistakes by eliminating error-prone manual configuration
- Dramatically enhance security with automatic segmentation of devices
- Reduce troubleshooting time with central management and common policies across the network
- Site survivable operation during cloud failures when connectivity is lost
- Reduce total cost with affordable cnMatrix switches managed by the cnMaestro FREE controller
| Brands | Cambium Networks |
|---|
Specifications:
| cnMatrix EX2010-P Specifications | |
|---|---|
| Features | |
| Throughput | 20 Gbps |
| Non-Blocking | |
| PoE enabled ports | 8 |
| PoE power budget units (watts) | 100 |
| 10/100/1000 ports | 8 |
| Uplink ports | 2 SFP |
| Serial console | |
| USB | |
| OOB ports | |
| Rack mount kit | Optional |
| Internal fans | Fanless |
| Maximum routes (Static) | 64 |
| Dynamic routing | 512 |
| LACP/trunking | 8 LAGs/8 links per 9216 |
| QoS priority queues | 8 |
| Maximum IGMP multicast groups | 256 |
| Max PVRST | 32 |
| Cambium Auto Edge | Yes |
| MTBF (hours) | 338,917.20 |
| Power budget | 1000W |
| Power supply | AC/Internal |
| Weight | 1.99 kg (4.375 lb) |
| Dimensions | 21 x 4.4 x 25 cm (8.26 x 1.75 x 9.85 in) |
| LEDs per port | Link/activity Poe |
| Rack mountable | Yes 1U |
| Temperature ranges | -0°C to +50°C (+32°F to +122°F) |
| Operating humidity | +55° at 95% RH |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| cnMatrix All Models | |
| Quality of Service | ACL mapping and marking of ToS/DSCP (COS) ACL mapping to priority queue Honoring DSCP and 802.1p(CoS) Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP ACL mapping marking of 802.1p DiffServ support Traffic shaping/metering |
| Traffic Management | ACL-based inbound rate limiting policies Inbound rate limiting per port Broadcast, multicast and unknown unicast rate limiting Outbound rate limiting per port/queue |
| Security | 802.1x authentication DHCP snooping Neighbor Discovery (ND) inspection Radius/Tacacs/Tacacs+ Secure shell MAC authentication RADIUS authentication/authorization Authentication, Authorization, and Accounting (AAA) Secure copy (SCP) Local username/password |
| Management | cnMaestro (cloud management) DHCP autoconfiguration Embedded DHCP server Industry standard Command Line Interface (CLI) Embedded web management (HTTP/HTTPS) Out of band Ethernet management client/server SSH /SSH v2 SNMP v1v2 System Network Time Protocol (SNTP) Auto Edge / Auto Attach Display log messages multiple terminals Telnet client/server |
| Layer 2 Feature Set | 802.1s multiple spanning tree VLAN, Port, Protocol, 802.1q Auto MDI/MDIX IGMP Snooping V1v2 Per VLAN STP (PVST/PVRST) IGMP Proxy Flow Control per port/per queue Broadcast/Multicast/Unlearned Unicast (Storm Control) Ping/TraceRoute/ICMPv6 Bpdu guard, Root Gard LLDP/LLDP Med Port Mirroring: port-based, ACL based, VLAN based Link Aggregation Groups (Static/LACP) Jumbo frame support BPDU filtering DoS Protection (Port, CPU) |
