cnPilot E400 Series

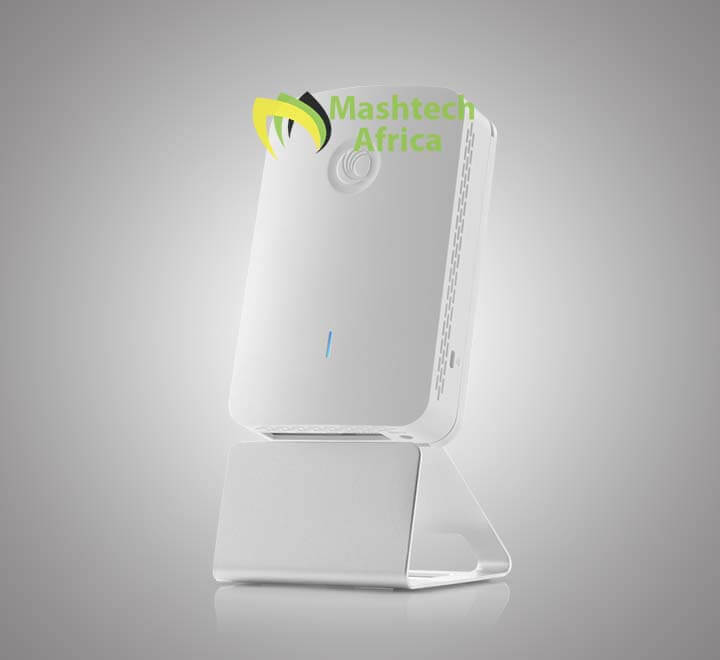

Cambium cnPilot e430H Wall Plate Indoor 802.11ac Wave 2
Availability:
7 in stock
- The Cambium Networks cnPilot™ e430H enterprise-class indoor wall plate access point supporting 802.11ac Wave 2 standards-based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs), or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.
- The cnPilot e430 Enterprise-class Indoor Wall Plate access point supporting 802.11ac Wave 2 standards-based beamforming, is perfect for hotels and resorts (Hospitality) and multi-dwelling units (MDUs).
- The cnPilot e430H is a wall plate access point featuring a discreet and sleek design.
- As a microcell wireless access point, the e430H will look great mounted on the wall in a hotel, dormitory room, long-term care, hospital patient room, or multi-dwelling unit.
SKU: PL-E430H00A-US
$272.50 $284.70
7 in stock
Compare-
cnPilot E400 Series
Cambium cnPilot e430H Wall Plate Indoor 802.11ac Wave 2
- The Cambium Networks cnPilot™ e430H enterprise-class indoor wall plate access point supporting 802.11ac Wave 2 standards-based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs), or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.
- The cnPilot e430 Enterprise-class Indoor Wall Plate access point supporting 802.11ac Wave 2 standards-based beamforming, is perfect for hotels and resorts (Hospitality) and multi-dwelling units (MDUs).
- The cnPilot e430H is a wall plate access point featuring a discreet and sleek design.
- As a microcell wireless access point, the e430H will look great mounted on the wall in a hotel, dormitory room, long-term care, hospital patient room, or multi-dwelling unit.
SKU: PL-E430H00A-US
SKU: PL-E430H00A-US -
cnPilot E400 Series
Cambium cnPilot E410 Wi-Fi Access Point Dual Band Indoor 802.11ac wave 2
- The plenum-rated cnPilot™ e410 with 2×2 MU-MIMO packs a max transmit power of 25 dBm and channels up to 80MHz wide on 5 GHz – offering more flexibility than ever for both coverage and capacity
- The compact low profile 802.11ac Wave 2 Multiuser MIMO (MU-MIMO) beamforming, high-speed E410 Enterprise access point future proofs your Indoor access point deployments and is perfect for Schools, Indoor public spaces, Malls, Hotels and Resorts (Hospitality), Coffee shops, Multi-dwelling units (MDUs) or just about any place indoor that need reliable high performing access points.
- Affordable enterprise-grade high-density 802.11ac Wave 2 indoor access points for schools, indoor public spaces, malls, hotels and resorts, coffee shops, multi-dwelling units (MDUs), or just about any place indoors that needs reliable, high-performance indoor Wi-Fi.
SKU: PL-E410X00B-US
SKU: PL-E410X00B-US
$553.13 for 2 item(s)
Features:
Controller Managed + Autonomous
Managed by Cambium Networks’ cnMaestro™ cloud controller or On-premises controller, the cnPilot e430H management includes:
- Zero-touch onboarding
- Inventory tracking
- Monitoring
- Configuration
- Dashboard views with Alarms
- Mass upgrade
- Troubleshooting
- Wireless and Wired port splash page guest portal
Controller-Less Roaming. Powerful Simplicity
TheThe e430H supports network-wide seamless roaming for up to 2,048 clients. Host the hotspot portal on the AP for controller-less simplicity, or on cnMaestro for a powerful network-wide portal.
Monetize Vouchers. Social Login
Monetize your Wi-Fi service: cnMaestro’s guest access feature supports splash page hosting, social login, and payment gateway for wired and wireless clients. Built-in power-packed features are available right on the controller. These features along with the ability to create time, rate, and volume limited traffic profiles along with vouchers for temporary guest access make the e430H ideal for hotels, coffee shops, campgrounds, and office guest Wi-Fi.
Service Aware WLANs. Better User Experience.
Nothing is more frustrating than connecting to an AP, but not getting to the internet because the WAN link is down. When connected to a critical resource such as an external Gateway or AAA is down, the e430H monitors the uplink Gigabit interface for a network outage. If an outage is detected, the impacted WLANs are disabled enabling client devices to select a neighboring AP.
Wi-Fi Mesh. Flexibility.
Meshing is supported across e430Hs as well as with any other indoor or outdoor Cambium Networks AP Enterprise AP, for a convenient way to expand Wi-Fi coverage without laying out cabling.
Coverage, Capacity. Speed.
The e430H packs strong transmit power and the flexible controls needed to control transmit power for high-density deployments. Throughput management via Airtime fairness increased performance from autoRF, and higher client device speeds from band steering ensure your e430H network can adapt to the dynamics of ever-changing client profiles.
High Density, Highly Available
A capacity of 256 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the e430H combines high density with high availability.
| Brands | Cambium Networks |
|---|
Specifications:
| cnPilot e430H Specifications | |||
|---|---|---|---|
| Access Point Specifications | |||
| Standards | IEEE 802.11a/b/g/n/ac Wave2 IEEE 802.11d/e/h/i/k/r/u/v/w Modulation: BPSK, QPSK, CCK, 16/64/256-QAM Radio modes : DSSS, OFDM |
Frequency Bands | 2.400 to 2.2484 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz |
| MIMO, Streams | 2×2:2 MU-MIMO | Power Supply | 802.3af PoE Injector, or PoE switch. 48V DC. 802.3at or PoE+ if using PoE-Out |
| Beamforming | Supported | Dimensions | 14.7 x 9.4 x 3.4 cm (5.7 x 3.7 x 1.3 Inch) |
| Channel Width | 20MHz, 40MHz, 80MHz | Weight | 390 g (0.86 lb) |
| Concurrent Clients | 256 | Operating Temperature | 0°C to +45°C (+32°F to +113°F) |
| SSIDs | 16 | Operating Humidity | 5% to 95% non-condensing |
| Transmit Power | 2.4GHz : 23dBm 5GHz : 21dBm |
Power Consumed | 9W (typical) 25W (max, with PoE-out) |
| Antenna Gain | 2.4GHz : 3.5dBi 5GHz : 4.9dBi |
LED | Tri-color software controlled LED |
| Max Data Rate | 2.4GHz : 400Mbps 5GHz : 867Mbps |
Secure Mounting | Kensington Key Slot |
| Antenna | Omnidirectional, integrated | MTBF | 1,025,801 hrs at 50C, 2,828,686 hrs at 25C |
| Bluetooth | Bluetooth 4 BLE Radio, 3.3dBi antenna | ||
| Ethernet Ports | Four auto-sensing MDIX Gigabit Ethernet (10/100/1000 Mbps). One pass-through Port. | Reset Button | Supported |
| Radio Features | Maximum ratio combining (MRC) Cyclic delay/shift diversity (CDD/CSD) Space-time blocking coding (STBC) Low-density parity check (LDPC) Packet Aggregation: A-MPDU, A-MSDU |
Certifications | FCC, CE, IC, UL, WEEE/RoHS compliance |
| Wi-Fi Alliance | Wi-Fi certified a,b,g,n, ac WPA2 – Enterprise, Personal WMM |
Mounting Options | In wall single-gang bracket included. Accessories available: dual gang bracket, on-wall bracket, desktop stand. |
| Wi-Fi Features | |||
| Management Modes | cnMaestro cloud managed cnMaestro on-premises VM controller managed Autopilot (AP as controller) Standalone with AP GUI (http/https), CLI (telnet/ssh) |
Wireless Security | WPA-TKIP, WPA2-AES, 802.11i WPA-PSK, WPA2-PSK, WPA2-Enterprise 802.1x Authentication with various EAP types (EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAPAKA, EAP-AKA’, EAP-FAST Protected Management Frames (802.11w) |
| RF Management | AutoRF automatically manages channel and power | Dynamic SSID Service | By time/date, by monitored host. |
| Guest Access Captive Portal | cnMaestro Controller Portal. Integrates with 3rd party Guest Access Portals. Built-in Portal on AP. LDAP & RADIUS authentication. Walled Garden with DNS whitelist. Wireless and Wired Clients supported. |
MAC Authentication | On-AP MAC filtering list. On-Controller MAC filtering list. RADIUS MAC Authentication. MAC Authentication fallback to Captive Portal |
| Rate Limiting | Per-client, Per-WLAN static and dynamic rate limiting | Access Control Lists | Layer-2, Layer-3, DNS |
| Client Isolation | On AP, Network-wide. | 3G/4G/LTE Offload | Passpoint (Hotspot 2.0) |
| Fast Roaming | 802.11r, Opportunistic Key Caching, Enhanced Roaming | DHCP Relay | Supported, with Option-82 customization |
| Airtime | Airtime Fairness, Band Steering, Band Balancing | NMS Monitoring | SNMP v1, v2c, v3 |
| AAA Support | RADIUS Authentication, Accounting, Dynamic Authorization (CoA, DM). Server failover, load-balancing | Client APIs | Client Presence/Location API DNS, NAT and TCP Connecting Logging |
| QoS | 802.11e/WMM QoS. DSCP/ToS mapping. | Time Synchronization | Auto (from controller), NTP |
| Ethernet (L2) Services | 802.1p/802.q, RADIUS assigned VLAN, VLAN per SSID, VLAN pooling. LLDP. IGMP Snooping (V1/V2/V3). | Troubleshooting Tools | Packet Capture, Spectrum Analyzer, Ping, Traceroute, Syslogs |
| Mesh | WDS Mesh with Single and Multiple radio hops. | Traffic Tunnels | L2TP, L2oGRE, PPPoE |
| Network Services | NAT, DHCP Server | ||
