cnPilot E500 Series

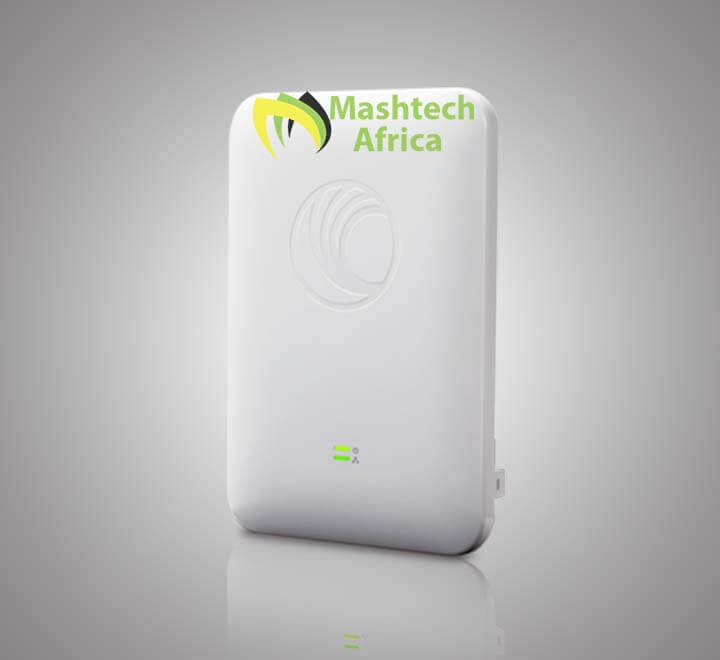

Cambium cnPilot E500 Enterprise Outdoor Access Point Outdoor
Availability:
8 in stock
- Gigabit IP67 Dual Band 802.11ac AP Outdoor Access Point
- The e500 APs features two Gigabit Ethernet ports and an AUX port capability, enabling outdoor deployment anywhere with additional power available for another backhaul radio, security camera, or other additional equipment.
- Omni coverage for Enterprise campuses, Public Wi-Fi, Hospitality, Educational institutions, Industrial campuses or just about any demanding outdoor environment requiring cost-effective, controller-managed WLAN Access Points.
SKU: PL-E500INTA-US
$398.58 $406.72
8 in stock
Compare-
cnPilot E500 Series
Cambium cnPilot E500 Enterprise Outdoor Access Point Outdoor
- Gigabit IP67 Dual Band 802.11ac AP Outdoor Access Point
- The e500 APs features two Gigabit Ethernet ports and an AUX port capability, enabling outdoor deployment anywhere with additional power available for another backhaul radio, security camera, or other additional equipment.
- Omni coverage for Enterprise campuses, Public Wi-Fi, Hospitality, Educational institutions, Industrial campuses or just about any demanding outdoor environment requiring cost-effective, controller-managed WLAN Access Points.
SKU: PL-E500INTA-US
SKU: PL-E500INTA-US -
cnPilot E500 Series
Cambium cnPilot E501S Enterprise Outdoor Sector Access Point
- IP67 802.11ac 90° ~ 120° Outdoor Sector Access Point
- The e501S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 90° ~ 120° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.
- Perfect for high-density applications and longer range coverage across Enterprise campuses, Public Wi-Fi, Hospitality, Educational institutions, Industrial campuses, or just about any demanding outdoor environment requiring cost-effective, controller-managed WLAN Access Points.
SKU: PL-501S000A-US
SKU: PL-501S000A-US
$813.43 for 2 item(s)
Features:
Designed for the outdoors
- 802.11ac, 256 users, 16 SSIDs
- Omni coverage
- UV rated IP-67 enclosure
- UV rated IP-67 enclosure
- Operating Temp: -30°C ~ +60°C
- Electrical heater for cold start
- Ruggedized – ESD protection, Industrial grade components
- Packaged with wall mount brackets
- Special LTE coexistence filters
- Lightweight ~ 1Kg
cnMaestro – WiFi Controller
- Guest Access: Custom Splash pages, Vouchers, Social login
- Zero-touch Provisioning
- Inventory tracking
- Map location
- Monitoring: key Stats, Alarms
- Mass (bulk) upgrade
- Integrated troubleshooting: WiFi APs, Clients & Cambium SMs
- Available in Cloud or as On-premises (NOC) Virtual controller
Operational superiority
Supporting 256 max concurrent client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access control lists (ACL), zero-touch provisioning, and more, the 802.11ac E500 is the essential workhorse for today’s demanding high-density outdoor WiFi networks.
High-performance Wi-Fi network
All cnPilot’s Enterprise Access Points (APs), support features like controllers roaming, dynamic channel selection, automatic transmit power control, band steering, and more – essential features for easy Wi-Fi operations.
Mesh
Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for client access at the same time.
Wireless Backhaul Integration
The aux PoE port on the E500 offers PoE out eliminating the need for a second power line – perfect for powering on a standard 802.3af camera, or powering on Cambium’s PMP450 or ePMP backhaul subscriber modules (SMs) for wireless backhaul enabled Wi-Fi hotspots.
Resilience
Dual onboard Active/Standby memory banks ensure higher availability. The E500 can store two versions of the software and if needed fall back to working operational software, reducing the likelihood of site visits and increasing network up-time.
IP67 Rated with Gore Vent
It is made to withstand demanding outdoor environments – resistant to wind, sand and rain – and prevent internal damage from moisture accumulation.
Easy to Deploy and Integrate
Supported by cnMaestro cloud-based or on-premises management system.
| Brands | Cambium Networks |
|---|
Specifications:
| cnPilot E700 Specifications | |
|---|---|
| Access Point Specifications | |
| Frequency Bands | 2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE) Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz |
| SSID Security | WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open |
| Max SSIDs | 16 |
| Max Concurrent Clients | 512 |
| Max Data Rates | 2.4GHz: 400Mbps, 5GHz: 1733Mbps |
| Ethernet Ports | Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T) |
| Antenna | Integrated Omni |
| Antenna gain | 8 dBi (2.4 GHz and 5 GHz) |
| Power Consumed | Typical 18W. Max 24.6W |
| Dimensions | 315 x 215 x 66 mm (without bracket) |
| Weight | 3.174 lbs (1700 gms) without bracket |
| Wi-Fi Features | |
| Controller modes |
|
| Secure WLAN |
|
| Hotspot 2.0/Passpoint | Passpoint supported |
| Captive Portal |
|
| Authentication |
|
| Scheduled SSID | Turn SSID ON/OFF on a daily/weekly/time of day basis |
| Guest Access | Yes. With Active Directory Integration
|
| cnMaestro Wi-Fi Controller | |
| Common Manager | Single pane of glass: Controller for Wi-Fi and network manager for ePMP and PMP wireless backhaul products |
| On-Boarding | Secure zero-touch fast on-boarding |
| Provisioning | Easy zero-touch virtual network provisioning Provision before install (pre-provision) |
| Device Inventory | Inventory tracking |
| Trouble Shooting | ezDetect: Advanced end-to-end troubleshooting of WiFi Access Point and Client devices on one single screen. Extends to Wireless backhaul (PTP), Wi-Fi Hotspot & Clients. Includes Packet capture and Wireless Analyzer functions |
| Configuration | GUI based configuration or template-based configuration options |
