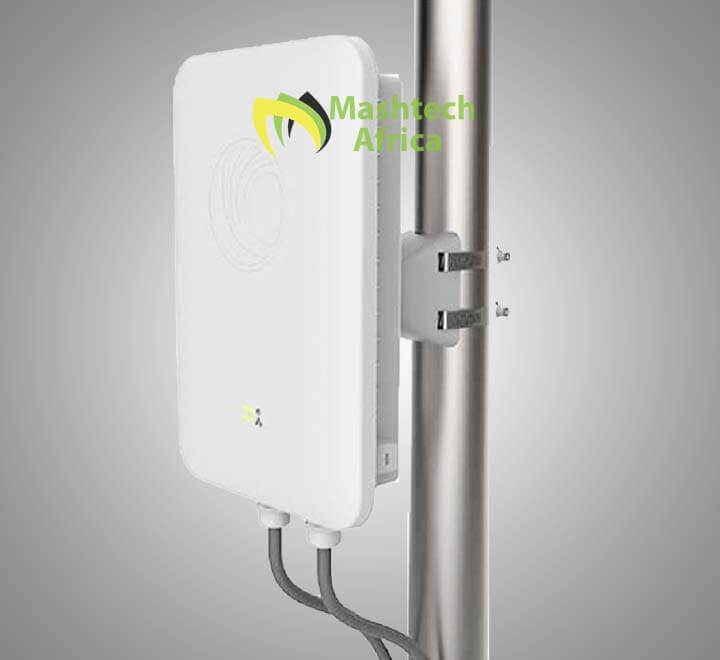

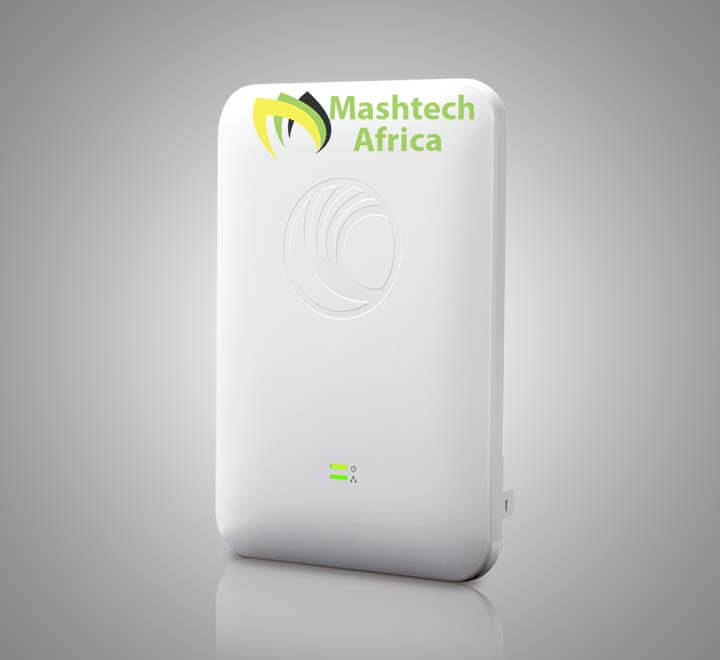

IP67 802.11ac 90° ~ 120° Outdoor Sector Access Point
The e501S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 90° ~ 120° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.
Perfect for high-density applications and longer range coverage across Enterprise campuses, Public Wi-Fi, Hospitality, Educational institutions, Industrial campuses, or just about any demanding outdoor environment requiring cost-effective, controller-managed WLAN Access Points.
Controller: Cloud or Virtual On-premises (NOC) controller
Operational superiority
The E501S with an integrated sector antenna supports 256 max client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access control lists (ACL), and more. The 802.11ac E501S is the essential workhorse for today’s demanding high-density outdoor WiFi networks.
High-performance Wi-Fi network
All cnPilot’s Enterprise Access Points (APs), support features like controllers roaming, dynamic channel selection, automatic transmit power control, band steering, and more – essential features for easy Wi-Fi operations.
Mesh
Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for client access at the same time.
Wireless Backhaul Integration
The aux PoE port on the E501S offers PoE out eliminating the need for a second power line – perfect for powering on a standard 802.3af camera, or powering on Cambium’s PMP450 or ePMP backhaul subscriber modules (SMs) for wireless backhaul enabled Wi-Fi hotspots.
Resilience
Dual onboard Active/Standby memory banks ensure higher availability. The E501S can store two versions of the software and if needed fall back to working operational software, reducing the likelihood of site visits and increasing network up-time.
IP67 Rated with Gore Vent
It is made to withstand demanding outdoor environments – resistant to wind, sand, and rain – and prevent internal damage from moisture accumulation.
Easy to Deploy and Integrate
Supported by cnMaestro cloud-based or on-premises management system.
WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open
Max SSIDs
16
Max Concurrent Clients
256
Max Range
Client: 213 m (700 Ft); Actual range will vary based on local RF conditions & client capability.
Mesh: 2.4 GHz: 3,000 m (9840 Ft.) 5 GHz: 1,500 m (4,900 Ft.)
Max Data Rates
1.01 Gbps
Ethernet Ports
Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T)
autoRF: Autonomous controller-less transmit power control
NAT
Yes
DHCP Server
Yes
Firewall
Yes. NAT logging
ACL, DNS-ACL
Yes. L2, L3 or DNS based access control
Band Steering Band Balancing
Yes
Airtime Fairness
Yes
Tunneling
L2TP
L2oGRE
PPPoE
Tools
Packet capture
IP connectivity
Wi-Fi analyzer
Sniffer
Auto logging
ZapD (Open source) compliant performance test tool
Services
NTP server config
Syslog servers
SNMP traps support
DNS proxy
cnPilot’s dependent resource state awareness feature (ADRES) turns SSID ON/OFF based on underlying resource connectivity state
APIs
Presence Locationing API
Certifications
FCC, ETSI, CE
EN 60601-1-2 (Medical EMC)
UL2043 Plenum rated
cnMaestro Wi-Fi Controller
Common Framework
Single-pane-of-glass common manager for Cambium’s cnPilot WiFi, ePMP and PMP wireless backhaul products
On-Boarding
Secure zero-touch fast on-boarding
Provisioning
Easy zero touch virtual network provisioning
Provision before install (pre-provision)
Device Inventory
Inventory tracking
Trouble Shooting
ezDetect: Advanced end to end troubleshooting of WiFi Access Point and Client devices on one single screen. Extends to Wireless backhaul (PTP), Wi-Fi Hotspot & Clients . Includes Packet capture and Wireless Analyzer functions
Intuitive Views
Map location
Hierarchical Dashboard views
Client Insight
Client history with client manufacturer view
Monitoring & Alarms
Alarms and events management – Critical/Major/Minor
Key statistics graphs and sticky alarm summary display
Configuration
GUI based configuration or template-based configuration options
Software Upgrade
Bulk upgrade with the ability to upgrade multiple WiFi APs
Multiple Admins
Multiple admin provisioning per account
Guest Portal (ezCheck In)
Create free or paid guest sessions – Limit by Time, Rate, and Bytes. Includes portal customization and built-in social login
