cnReach, Terminal Server

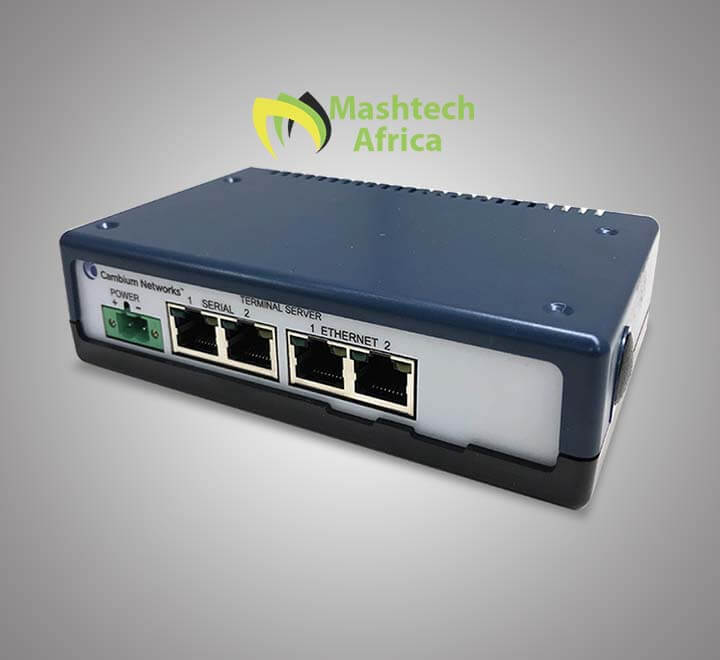

Cambium cnReach Terminal Server
Availability:
8 in stock
- Add Serial to TCP/IP conversion on any wireless or wired broadband network
- The cnReach Terminal Server delivers serial to Ethernet conversion enabling the addition or integration of serial connectivity to any wired or wireless TCP/IP network. In addition to serial connectivity, the terminal server supports MODBUS polling at the edge that can be published via MQTT. Finally, the cnReach Terminal Server is managed with cnMaestro providing a single pane of glass management across the network..
SKU: NB-N500082A-US
$406.72 $506.72
8 in stock
CompareThe cnReach Terminal Server delivers serial to Ethernet conversion enabling the addition or integration of serial connectivity to any wired or wireless TCP/IP network. In addition to serial connectivity, the terminal server supports MODBUS polling at the edge that can be published via MQTT. Finally, the cnReach Terminal Server is managed with cnMaestro providing a single pane of glass management across the network
Features:
- Add Serial to TCP/IP conversion on any wireless or wired broadband network
- Single Pane of Glass Management
- Monitor/Configure devices remotely using cnMaestro
- Flexible configuration enables integration with most serial-based devices in the field today
- Integrated MODBUS TCP to MODBUS RTU Conversion
- Supports TCP or UDP traffic and Server or Client modes
- Daisy-chain multiple units to add more serial ports
- MQTT Publish/Subscribe Integration
- Reduce traffic by up to 90% vs. traditional polling
- Make data available across entire organization
- Integrated local MODBUS Polling at the edge
- Data Concentrator applications to reduce polling
- PLC Local Logic to add intelligence at the edge
| Brands | Cambium Networks |
|---|
Specifications:
| Management | |
|---|---|
| Web-based Interface via HTTP/HTTPS | |
| Remote Management via SNMP | |
| User Login Authentication using RADIUS | |
| cnMaestro integration | |
| Support for configuration files, remote software upgrades | |
| Data Capabilities | |
| Packet Handling | Layer 2 bridge and/or Layer 3 static routes VLAN support |
| Modes | TCP Terminal Server, TCP Terminal Client, UDP Terminal, Multicast Terminal |
| Other | MODBUS Bridge (MODBUS TCP to MODBUS RTU conversion) Data Concentrator (converges data from multiple MODBUS sources into single polling MODBUS map) MQTT (publish/subscribe data); Sparkplug B compliant |
| Interfaces | |
| Ethernet Interfaces | 2 x RJ-45 10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant) |
| Environmental | |
| Operating Temperature | -40 C to +85 C (-40 F to 185 F) |
| Humidity | 95% operating humidity @ 40C non-condensing |
| HAZLOC | Pending Approval to UL Class 1 / Div 2 |
