cnWave

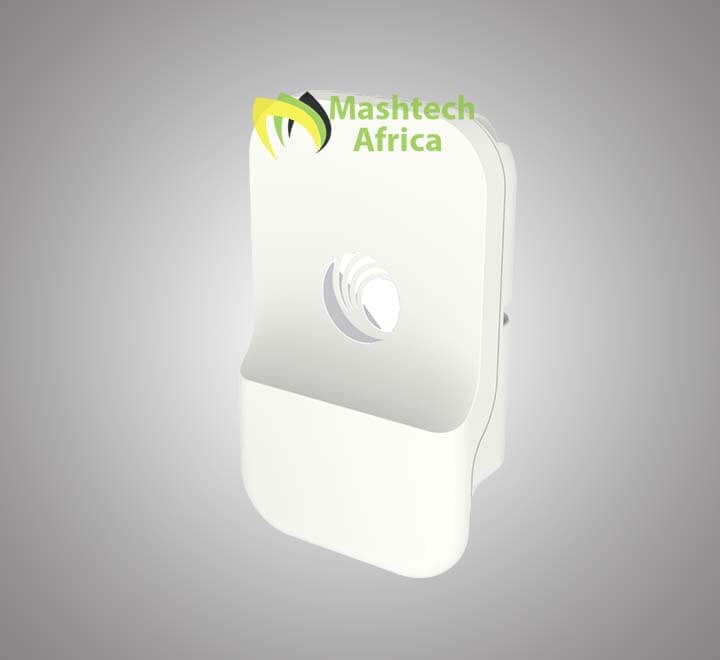

Cambium cnWave v1000 60 GHz
Availability:
7 in stock
- Designed For High-speed and High-density Deployments
- V1000 is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.
- Cambium Networks 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.
SKU: C600500C001A
$364.60
7 in stock
Compare-
cnWave
Cambium cnWave v1000 60 GHz
- Designed For High-speed and High-density Deployments
- V1000 is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.
- Cambium Networks 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.
SKU: C600500C001A
SKU: C600500C001A -
cnPilot E700 Series
Cambium cnPilot e700 Access Point Enterprise Outdoor
- Gigabit IP67, 802.11ac wave 2, 8 dBi Outdoor Access Point
- cnPilot e700 Enterprise Outdoor APs feature Gigabit throughput, 802.11ac Wave 2 standard with beamforming for superior outdoor Wi-Fi for enterprise campus, hospitality, higher education, and public Wi-Fi applications.
SKU: PL-E700X00A-US
SKU: PL-E700X00A-US
$958.41 for 2 item(s)
The V1000 is optimized for easy installation and rapid deployment in residential and small business applications. The V1000 millimeter wave module can be deployed as a point-to-point (PTP) link or in a point-to-multipoint (PTMP) distribution network to provide multi-gigabit wireless connectivity.
V1000 is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction
| Brands | Cambium Networks |
|---|
Specifications:
cnWave v1000
| Spectrum | Performance | |||
|---|---|---|---|---|
| Frequency Range | 57 to 66 GHz in a single SKU | Modulation & Coding Schemes | MCS-0 (BPSK) to MCS-12 (16-QAM) | |
| Channel Width | 2.16 GHz, 4.32 GHz* | Latency | < 1 ms | |
| Carrier Bonding* | Up to 2 adjacent channels | Maximum EIRP | 38 dBm | |
| Mode of Operation | PMP or Mesh, PTP* | |||
| Antenna | ||||
| Interface | Gain | 22.5 dBi | ||
| Channel Access | TDMA/TDD | Type | Integrated | |
| Ethernet Interface | 1 x 100/1000 BaseT with PoE In | Beamforming Scan Range | +/- 40º azimuth, +/- 20º elevation | |
| Beam Width | 12º | |||
| Ethernet | ||||
| Protocol Supported | IPv4, IPv6 | Powering | ||
| Network Management | cnMaestro, HTTP, HTTPS, SNMP v2c & v3 | Type | 802.3af PoE | |
| MTU | 4,000 bytes | Power Consumption | 10 W | |
| VLAN* | 802.1ad (QinQ), 802.1Q with 802.1p priority | |||
| Physical | ||||
| QoS* | 4 Level QoS, DSCP and VLAN Tag | Environmental | IP66/67 | |
| Security | Temperature | -40ºC to 60ºC (-40ºF to 140ºF) | ||
| Encryption | 128-bit AES | Mean Time Between Failure | > 40 years | |
| Firmware Security | Signed Firmware Images | Weight | 0.25 kg (0.55 lbs) | |
| * Available in future release | Dimensions
W x H x D |
140 mm x 85 mm x 40 mm
(5.5 in x 3.3 in x 1.6 in) |
||
| Wind Survival | 200 km/h (124 mi/h) | |||
