Cambium ePMP

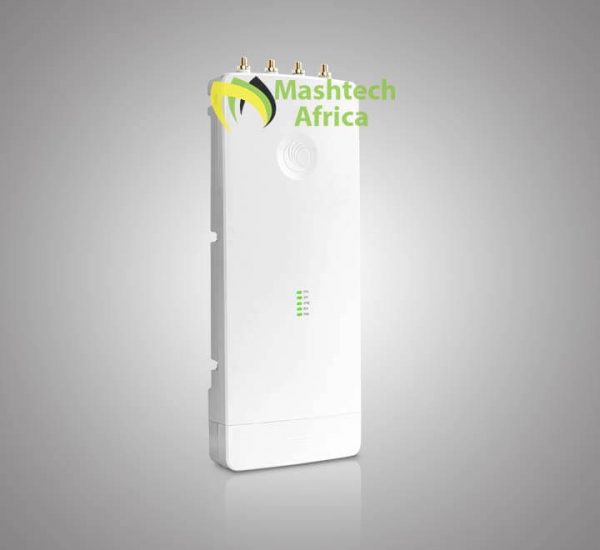

Cambium ePMP 3000 Access Point – 5GHz Connectorized MU-MIMO 4×4 AP
Availability:
9 in stock
- The Third Generation Access Point (AP) That Carries On The Interference Tolerance Mechanisms From ePMP 2000 But Adds The Power of Multi-User MIMO (MU-MIMO)
- Cambium Networks’ ePMP™ product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price.
- The ePMP 3000™ is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO).
- The ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.
SKU: C058910A102A
$683.28 $693.28
9 in stock
Compare-
Cambium ePMP
Cambium ePMP 3000 Access Point – 5GHz Connectorized MU-MIMO 4×4 AP
- The Third Generation Access Point (AP) That Carries On The Interference Tolerance Mechanisms From ePMP 2000 But Adds The Power of Multi-User MIMO (MU-MIMO)
- Cambium Networks’ ePMP™ product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price.
- The ePMP 3000™ is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO).
- The ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.
SKU: C058910A102A
SKU: C058910A102A -
Cambium ePMP
Cambium ePMP 3000 Sector Antenna – 5GHz, 17dBi, 4×4 MU-MIMO
- Cambium ePMP 3000 4×4 MU-MIMO Sector Antenna for ePMP3000AP (C050910D301A)
The Cambium C050910D301A encompasses all the key differentiation of the Cambium Antenna line and adds 4X4 Multi User MIMO Capability. Designed to work in 5 GHz spectrum and 90-degree coverage, the antenna is an integral part of the ePMP 3000 Access Point and allows for Multi User MIMO Operation.
SKU: C050910D301A
SKU: C050910D301A - Cambium ePMP 3000 4×4 MU-MIMO Sector Antenna for ePMP3000AP (C050910D301A)
$1,049.33 for 2 item(s)
The ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO). The ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.
Key Advantage:
- Frequency Reuse: Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
- Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.
- Industry-Leading Interference Tolerance: The intelligent filtering capability on the receive side makes ePMP 3000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.
- Industry-Leading Spectral Efficiency: MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.
Key Specifications:
- MU-MIMO support with peak throughput of 1.2 Gbps
- 256QAM-5/6, 80 MHz support
- Supports a wide frequency range: 4910 – 5970 MHz
- 802.3at compliant 100/1000BaseT interface
- Frequency re-use with GPS sync, interference mitigation with beam-steering antenna, and dynamic filtering
Specifications:
| ePMP 3000 Access Point Specifications | |
|---|---|
| Spectrum | |
| Channel Spacing | Configurable on 5 MHz increments |
| Frequency Range | 4910 – 5980 MHz (exact frequencies as allowed by local regulations) |
| Channel Width | 20 | 40 | 80 MHz |
| Interface | |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Physical Layer | 4X4 MUMIMO/OFDM |
| Ethernet Interface | 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port |
| Powering Methods Supports | 56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTPs, SNMPv2c, SSH |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| Subscribers per Sector | Up to 120 |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20MHz Channel | MCS 0 , -92 MCS 8 supported by Wi-Fi -68 |
| Nominal Receive Sensitivity (w/FEC) @40MHz Channel | MCS0, -89 MCS9, -64 |
| Nominal Receive Sensitivity (w/FEC) @80MHz Channel | MCS0, -86, MCS9 – 61 |
| Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS 9 (256 QAM 5/6) |
| GPS Synchronization | Yes, via Internal GPS or Cambium Sync (Internal GPS receiver also contains a patch antenna and can be used without the external puck antenna) |
| Quality of Service | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support* |
| DSO | Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel |
| Fast DFS | Change to alternate radar free channel with background availability check |
| Link Budget | |
| Antenna | Sector Antenna (C050910D301A ) Available |
| Transmit Power Range | 0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval) |
| Physical | |
| Sector Antenna Connection | 4 x 50 ohm, RP (Reverse Polarity) SMA |
| Beamforming Antenna Connection | 2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna) |
| GPS Antenna Connection | 1 x 50 ohm, RP (Reverse Polarity) SMA |
| Surge Suppression | 1 Joule Integrated. C000000L033A – 56V Gigabit surge suppressor recommended for optimal surge protection |
| Environmental | IP55 |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Power Consumption | 25 W Mazimum1 |
| Input Voltage | 44 V to 59V |
| Weight | 0.7 kg (1.5 lbs) without brackets |
| Dimensions (L x W x H) | 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets |
| Security | |
| Encryption | 128 bit AES (CCMP mode) |
| Certifications | |
| FCCID | Z8H-89FT0024 |
| Industry Canada | 109W-0024 |
| CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz) |
