-4%
ePMP Force

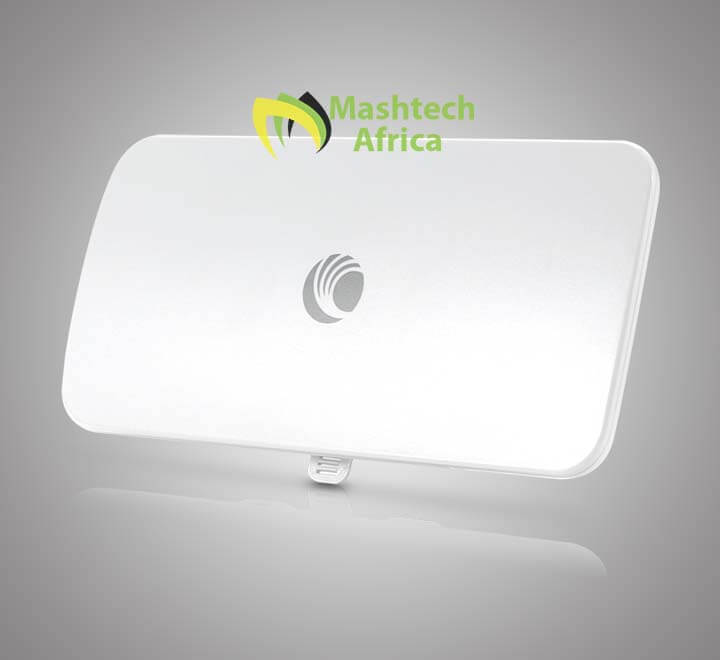

Cambium ePMP Force 300-16
Availability:
8 in stock
- 5GHz Mid Gain Radio w/ 16dBi Integrated Antenna
- Force 300-16 continues the tradition of previous products with a horizontal orientation mount providing a 15-degree beamwidth and 16 dBi gain.
- Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
- Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-16 offers a compelling yet affordable point to point product and a future mid gain subscriber module for the ePMP3000 Access Point.
SKU: C058910C112A
$146.42 $152.50
8 in stock
Compare-
ePMP Force
Cambium ePMP Force 300-16
- 5GHz Mid Gain Radio w/ 16dBi Integrated Antenna
- Force 300-16 continues the tradition of previous products with a horizontal orientation mount providing a 15-degree beamwidth and 16 dBi gain.
- Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
- Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-16 offers a compelling yet affordable point to point product and a future mid gain subscriber module for the ePMP3000 Access Point.
SKU: C058910C112A
SKU: C058910C112A -
ePMP Force
Cambium ePMP Force 300-19
- 5GHz 19dBi Subscriber Module
- Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density deployments. Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments.
- The ePMP Force 300-19 is designed to operate in high interference environments and provides superior throughput up to 600 Mbps of real user data and supports channel sizes from 20 MHz up to 80 MHz and modulations up to 256QAM.
SKU: C050900C802A
SKU: C050900C802A
$309.11 for 2 item(s)
Force 300-16 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300-16 will also supports an always on spectrum analyzer and local WiFi management to take advantage of mobile installation applications.
Features:
- Up to 500 Mbps of throughput
- With a horizontal orientation mount providing a 15-degree beamwidth and 16dBi gain, the F300-16 offers a compelling, compact subscriber or point-to-point solution resilient to interference.
- The ePMP Force 300-16 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
- 802.11ac Wave 2 technology with high packets-per-second performance
- 5.1 to 5.8 band support (contingent on country regulatory requirements)
- cnMaestro™ management
- WiFi management option
- Always on a spectrum analyzer
Combining the latest 802.11ac Wave 2 chipset and the field-proven TDD MAC of ePMP, the Force 300-16 offers a compelling yet affordable point-to-point product and a mid-gain subscriber module for the ePMP 3000 and ePMP 3000L Access Points. Force 300-16 continues the tradition of previous products with a 16dbi integrated antenna with a narrow beamwidth and reliable mechanics. Supporting peak throughput up to 600 Mbps, the Force300-16 also supports an always-on spectrum analyzer.
| Brands | Cambium Networks |
|---|
Specifications:
| ePMP Force 300-16 Specifications | |
|---|---|
| Spectrum | |
| Channel Spacing | Configurable on 5 MHz increments |
| Frequency Range | Wide Band Operation 4910 – 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| Channel Width | 20 | 40 | 80 MHz |
| Interface | |
| MAC (Media Access Control) Layer | Cambium |
| Physical Layer | 2×2 MIMO/OFDM |
| Ethernet Interface | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20MHz Channel | MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40MHz Channel | MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -64 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80MHz Channel | MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -59 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS0(BPSK) to MCS9 (256 QAM-5/6) |
| Transmit Power Range | 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Physical | |
| Surge Suppression | 1 Joule Integrated (C000000L065A – 30V Gigabit surge suppressor is recommended for optimum protection) |
| Environmental | IP55 |
| Temperature | 30°C to +60°C (-22°F to +140°F) |
| Wind Survival | 180 km/hour (112 mi/hour) |
| Weight | 0.50 kg (1.1 lb) (includes mounting bracket) |
| Dimensions (Dia x Depth) | 12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached |
| Pole Diameter Range | 1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp |
| Power Consumption | 12 Watts |
| Input Voltage | 30 Volts |
| Security | |
| Encryption | 128-bit AES (CCMP mode) |
| Certifications | |
| FCCID | Z8H-89FT0016 |
| Industry Canada Cert | 109W-0016 |
| CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz) |
5 GHZ Antenna Specifications
- Frequency Range: 4.9 – 5.970 MHz
- Antenna Type: Panel
- Peak Gain: 16 dBi
- 3dB Beamwidth-Azimuth: 15 degrees
- 3dB Beamwidth-Elevation: 30 degrees
