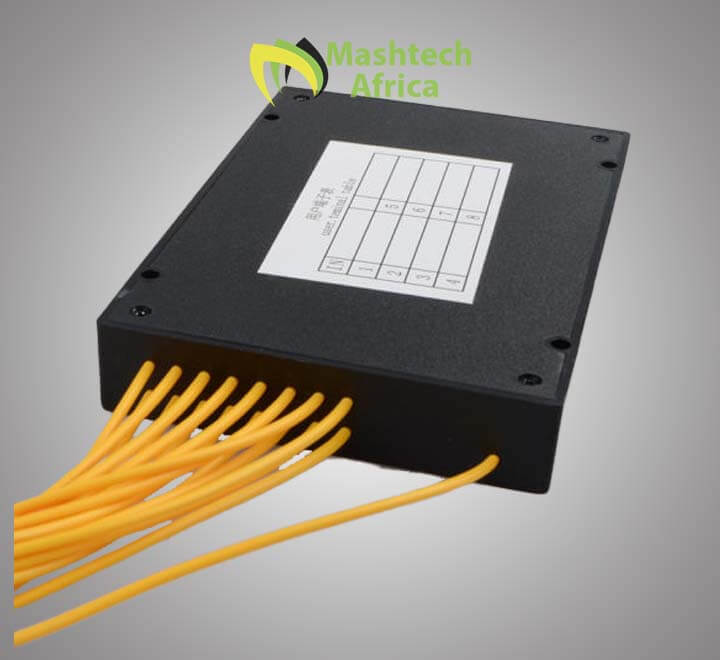

FAT Box With 16 Core Splitter 1*16 LC/ UPC Optical Splitter Black
7 in stock
- Low Insertion loss
- Low PDL\
- High Return Loss
- Uniform Power Splitting
- Compact Design
- Wide Operating Wavelength
- \Wide Operating Temperature
- Excellent Environmental & Mechanical Stability
- Qualified Under Telcordia GR-1221 and GR-1209
SKU: SPL-16-UPC-SCSC-ABS
$170.82 $180.82
7 in stock
Compare-
Fibre Access Terminals (FAT)
FAT Box With 16 Core Splitter 1*16 LC/ UPC Optical Splitter Black
- Low Insertion loss
- Low PDL\
- High Return Loss
- Uniform Power Splitting
- Compact Design
- Wide Operating Wavelength
- \Wide Operating Temperature
- Excellent Environmental & Mechanical Stability
- Qualified Under Telcordia GR-1221 and GR-1209
SKU: SPL-16-UPC-SCSC-ABS
SKU: SPL-16-UPC-SCSC-ABS -
Fibre Access Terminals (FAT)
FAT Box With Bare 1×16 Splitter 16 Core Distribution Box
- Industry Standard User Interface, be made of ABS plastic.
- Can accommodate 1×4,1×8,1X16, 2×4,2×8 & 2×16 PLC steel tube splitter.
- Rainfall resistant, outdoor using.
- Can load 24pcs LC, FC, ST, SC … adapters.
- Wall mounting and pole mounting application.
- 2pcs cable entry ports; cable can be entry without cutting.
SKU: FLK-FAT-216N
SKU: SPDF-O16SCS-PMPB/PMHPB

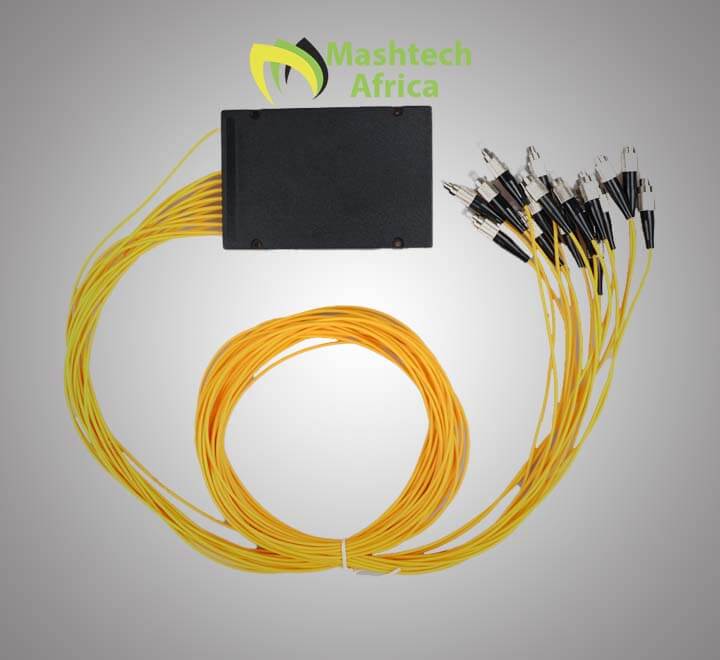

FTTH fiber 2.0mm 1×16 single-mode optic plc splitter with FC UPC connector abs box type splitter
Fiber Optic Splitter has one uplink optical interface and a number of downlink optical interfaces. optical signals coming from the uplink optical interface are transmitted to all of the downlink optical interfaces, optical signals coming from the downlink optical interface are transmitted to the one uplink optical interface. Just when optical signals transmit from uplink optical interface to downlink optical interface, optical signal strength/optical power will decline, when optical signals transmit from downlink optical interface to uplink optical interface, the same is true. Using a splitter, we can also copy one optical data for monitoring after optical fiber transmission.
| Brands | Fibre Optics |
|---|
Technical Specifications
| Parameter | Value | |||||||
| Product Type | 1×2/2×2 | 1×4/2×4 | 1×8/2×8 | 1×16/2×16 | 1×32/2×32 | 1×64/2×64 | 1×128/2×128 | |
| Wavelength(nm) | 1260~1650 | |||||||
| I.L(dB) | Typ. | 3.6/4.2 | 7.1/7.2 | 10.4/10.6 | 13.6/13.8 | 17.2/17.5 | 20.1/20.5 | 25.0/25.2 |
| Max. | 4.3/4.5 | 7.4/7.6 | 10.7/11.0 | 14.0/14.8 | 18.0/18.0 | 21.5/21.5 | 25.8/25.8 | |
| Uniformity(Max.)(dB) | 0.5/0.8 | 0.8/1.0 | 1.0/1.2 | 1.4/1.5 | 1.6/1.8 | 2.0/2.5 | 2.6/3.0 | |
| PDL(Max.)(dB) | 0.2/0.2 | 0.3/0.3 | 0.3/0.3 | 0.3/0.3 | 0.3/03 | 0.5/0.5 | 0.8/1.0 | |
| TDL(Max.)(dB) | 0.5 | |||||||
| R.L(dB) | ≥55(APC)/≥55(UPC) | |||||||
| Directivity(dB) | ≥55 | |||||||
| Operating & Storage Temperature |
-40~+85 | |||||||
| Note: All the data above does not include connectors. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB. |
||||||||
