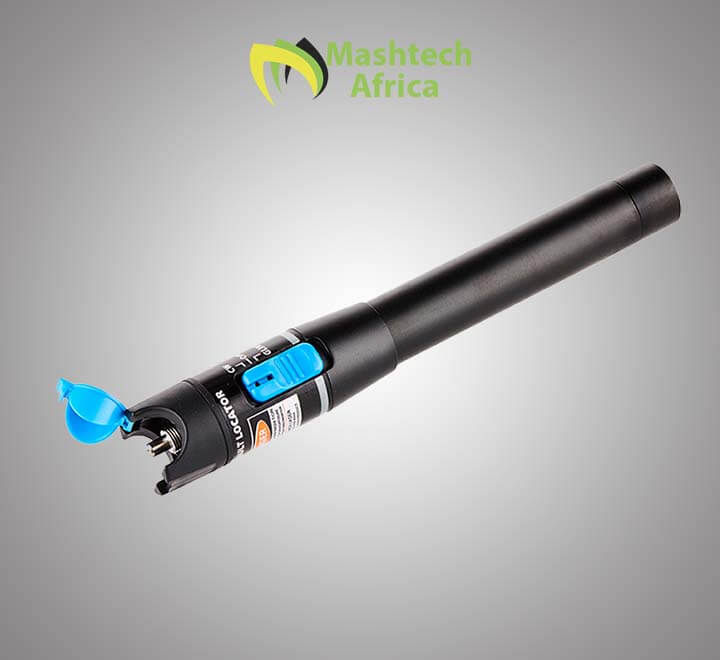

- The pen-based red light source, which uses a 650nm semiconductor laser as a light-emitting device, through the constant current drive, transmits the red light which power is stable. After connecting with the optical interface, the red light can enter into the multimode and single-mode fiber, achieving the detecting function of optical fiber fault. It is an indispensable tool for fiber-optic construction, fiber-optic network maintenance, optical device production, and research.
- The ceramic tube can be replaced by itself
- Simple operation
- Extend service lifeUser friendly design
- Sliding-type switch design
- Let you control the red pen as much as you like
| Brands | Fibre Optics |
|---|
Technical Specifications
Type: 30mW
Wave Length: 650nm ± 10nm
Dynamic Distance: Less than 30km
Output Power: More than 30mw
CW Frequency: 2HZ
Laser Type: LD
Connector: Universal Connector
Operating Temperature: 0℃ ~ 60℃
Storage Temperature: -20℃ ~ +70℃
Power Supply: 2X AA Batteries(included)
Material: Aluminum
Color: Black
Size: (L) x (W)17.5 x 2.6cm/6.89” x 1.02”(appr.)
How to change ceramic core:
Step 1: Open the dust cover, unscrew the red pen metal head.
Step 2: Remove the broken ceramic casing, and clean up debris and dust (be careful not to damage the core surface). Then tighten the metal head.
Package included:
1 x Visual Fault Locator
1 x Ceramic Tube
1 x Carry Bag
1 x Rope
2 x AA Batteries
