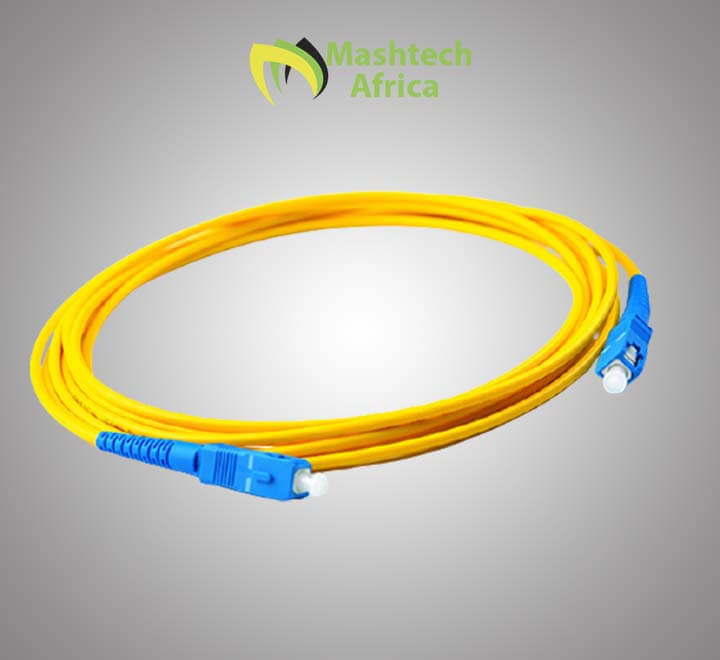

Fibre Patch Cords 2MM 2M SC/APC-SC/ UPC

Fibre Patch Cords 2MM 2M SC/APC-SC/ UPC

Fibre Optics
Availability:

7 in stock
Add to wishlist
Compare
  • Superior qualified standard PC, APC, UPC, SPC polishing;
  • 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
  • 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
  • φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable optional;
  • Single mode (9125) or multi mode (50125 or 62.5125) fiber available;
  • FC, SC, LC, MU, ST, MT-RJ, etc connector
  • Good exchange ability and good durability;
  • Available in fiber bunch, ribbon fan-out, pigtail available;
  • Meets ISO9001, and Bell core GR 326-core standards;
  • Customized specifications welcomed.

SKU: Sm Sx Fiber Patch Cord

$1.22

7 in stock

Compare
$2.44 for 2 item(s)

Description:
These high speed singlemode 9/125um duplex fiber optic patch cables are terminated with LC/APC fiber optic connectors on one end and SC/APC fiber optic connectors on the other end (LC/APC-SC/APC). Called Lucent Connectors, Little Connectors or Local Connectors, these snap-in connectors are typically used for high density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers. Referred to as Subscriber Connectors, Square Connectors or Standard Connectors, these push-pull connectors are the most common choice for FTTH (fiber to the home) applications in use for Datacom and Telcom and most GBIC modules require this connector type.
Our extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations. Our fiber jumpers have been geometrically inspected with interferometers and tested with automated insertion loss and reflection test equipment to ensure exceptional performance.

Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

SKU: Sm Sx Fiber Patch Cord Category: Tags: , , ,
Brands

Fibre Optics

Technical Specifications

Specification:

Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature ºC -40~75 -40~75 -40~75 -40~75
Storage temperature ºC -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9
