Mikrotik Interfaces

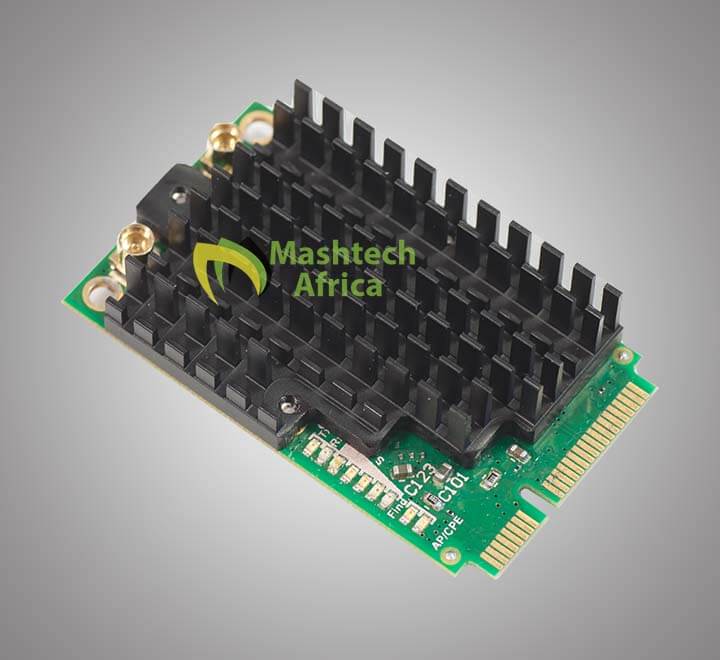

Mikrotik 5Ghz miniPCI-express R11e-5HnD
Availability:
7 in stock
- 5Ghz miniPCI-express, 802.11a/n dual chain, 2x MMCX
High power 4920-5920MHz 802.11a/n dual chain wireless card in the miniPCI-e format. Ideally suited for the new RB912 series, RB800, or our new miniPCIe adapter card – RB14e. - The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity, and wireless signal strength – just looking at the card will help with installation and alignment.- DDM monitoring (Supply Voltage, Module temperature) is now supported.
SKU: R11e-5HnD
Compare
-
Mikrotik Interfaces
Mikrotik 5Ghz miniPCI-express R11e-5HnD
- 5Ghz miniPCI-express, 802.11a/n dual chain, 2x MMCX
High power 4920-5920MHz 802.11a/n dual chain wireless card in the miniPCI-e format. Ideally suited for the new RB912 series, RB800, or our new miniPCIe adapter card – RB14e. - The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity, and wireless signal strength – just looking at the card will help with installation and alignment.- DDM monitoring (Supply Voltage, Module temperature) is now supported.
SKU: R11e-5HnD
SKU: R11e-5HnD - 5Ghz miniPCI-express, 802.11a/n dual chain, 2x MMCX
Product specifications
| Details | |
|---|---|
| Product code | R11e-5HnD |
| 5GHz | yes |
| Antenna header count | 2 |
| Can be used indoors | Yes |
| Can be used outdoors | Yes |
| Certification | FCC, IC |
| Chipset | AR9580 |
| Connector | MMCX |
| Format | miniPCI-e |
| Output power | up to 27dBm |
| Storage size | 4 KB |
| Storage type | FLASH |
| Tested ambient temperature | -40C to +65C |
| Wi-Fi generation | Wi-Fi 4 |
| Wireless standards | 802.11a/n |
| Suggested price | |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 27 | -96 |
| 54MBit/s | 24 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 23 | -79 |
| Brands | MikroTik Wireless |
|---|
