Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 2 RB912UAG-2HPnD-OUT
Availability:
8 in stock
- The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual-band device or a 3G/4G modem.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
SKU: RB912UAG-2HPnD-OUT
$1.00
8 in stock
Compare-
Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 2 RB912UAG-2HPnD-OUT
- The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual-band device or a 3G/4G modem.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
SKU: RB912UAG-2HPnD-OUT
SKU: RB912UAG-2HPnD-OUT -
LoRa, wAP
MikroTik Antenna kit for LoRa®TOF-0809-7V-S1
- 6.5 dBi Omni antenna for 824-960 MHz
- Antenna kit for LoRa® with a 6.5 dBi Omni antenna for 824-960 MHz, 1 m long SMA cable, and mechanical holder for quick and easy mast attachment – when you need that extra network coverage.
SKU: TOF-0809-7V-S1
SKU: TOF-0809-7V-S1 -
Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 5 RB912UAG-5HPND-OUT
- TheThe RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual-band device.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
- Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount- RB912UAG-5HPnD-OUT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- RB912UAG-5HPnD-OUT (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RB912UAG-5HPND-OUT
SKU: RB912UAG-5HPND-OUT
$38.16 for 3 item(s)
Specifications
| Details | |
|---|---|
| Product code | RB912UAG-2HPnD-OUT |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 64 MB |
| Storage type | NAND |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 10 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wireless 2.4 GHz chip model | AR9342 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | FCC, IC |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 30 | -100 |
| 11MBit/s | 30 | -94 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 24 | -73 |
Included parts
Based on 3 reviews
Add a review
Related products
-
LoRa, wAP
MikroTik Antenna kit for LoRa®TOF-0809-7V-S1
- 6.5 dBi Omni antenna for 824-960 MHz
- Antenna kit for LoRa® with a 6.5 dBi Omni antenna for 824-960 MHz, 1 m long SMA cable, and mechanical holder for quick and easy mast attachment – when you need that extra network coverage.
SKU: TOF-0809-7V-S1
SKU: TOF-0809-7V-S1 -
Mikrotik Access Points, MikroTik Wireless Systems for Home/Office
MikroTik RouterBOARD RB951Ui-2HnD Wireless SOHO Access Point
-9%
Mikrotik Access Points, MikroTik Wireless Systems for Home/OfficeMikroTik RouterBOARD RB951Ui-2HnD Wireless SOHO Access Point
- 2.4GHz AP with five Ethernet ports and PoE output on port 5. It has a 600MHz CPU, 128MB RAM and a USB port.
- The Mikrotik RB951UI-2HND Wireless Router is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port, and a high-power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
- It has a 600MHz CPU,128MB of RAM, and PoE output function for port #5 – it can power other PoE-capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.
SKU: RB951UI-2HND
SKU: RB951UI-2HND -
hAP, Mikrotik Access Points
Mikrotik hAP Lite Access Points RB941-2nD
- Low-cost home wireless AP with dual chain 2.4GHz wireless, powered by USB
- The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
- It supports button-triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
- Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control, and many others.The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports, and a RouterOS L4 license. The USB power supply is included.
SKU: RB941-2nD
SKU: RB941-2nD -
mANT
Mikrotik mANT30 PA MTAD-5G-30D3-PA

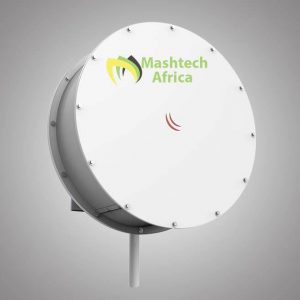

- Parabolic dish antenna for 5GHz, 30dBi gain. This model includes precision alignment mount
