-5%
Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 5 RB912UAG-5HPND-OUT
Availability:
9 in stock
- TheThe RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual-band device.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
- Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount- RB912UAG-5HPnD-OUT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- RB912UAG-5HPnD-OUT (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RB912UAG-5HPND-OUT
$0.56 $0.59
9 in stock
Compare-
Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 5 RB912UAG-5HPND-OUT
- TheThe RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual-band device.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
- Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount- RB912UAG-5HPnD-OUT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- RB912UAG-5HPnD-OUT (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RB912UAG-5HPND-OUT
SKU: RB912UAG-5HPND-OUT -
Basebox, Mikrotik Access Points, MikroTik Antennas

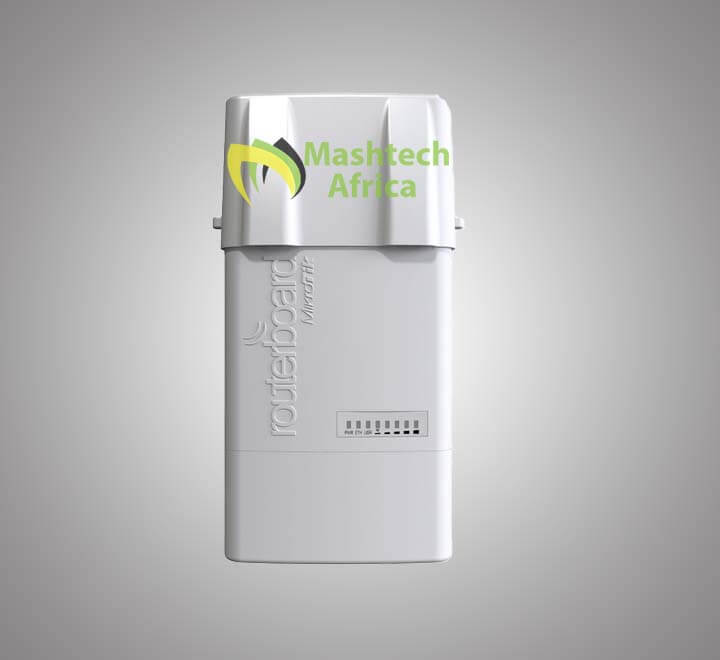

Mikrotik Basebox 2 RB912UAG-2HPnD-OUT

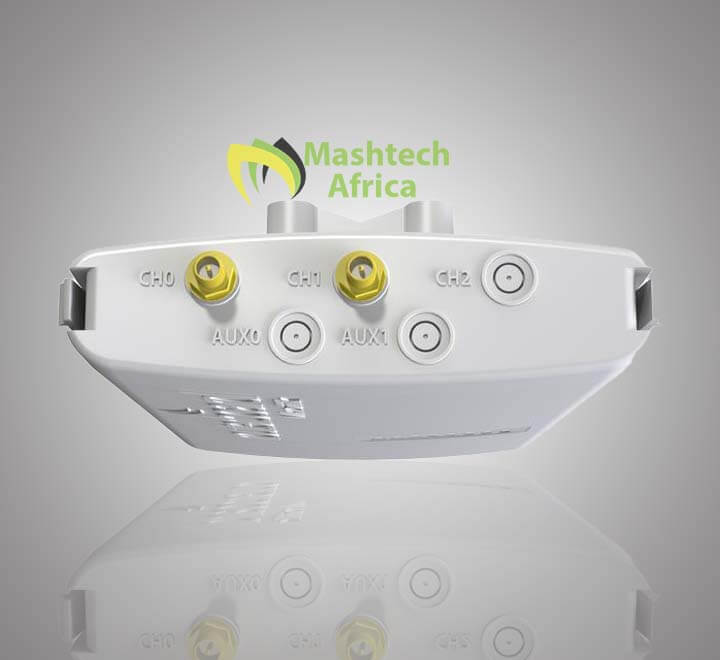

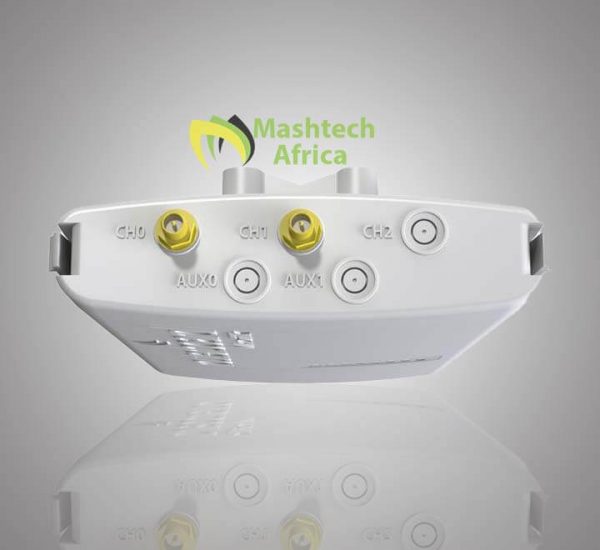

- The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual-band device or a 3G/4G modem.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.

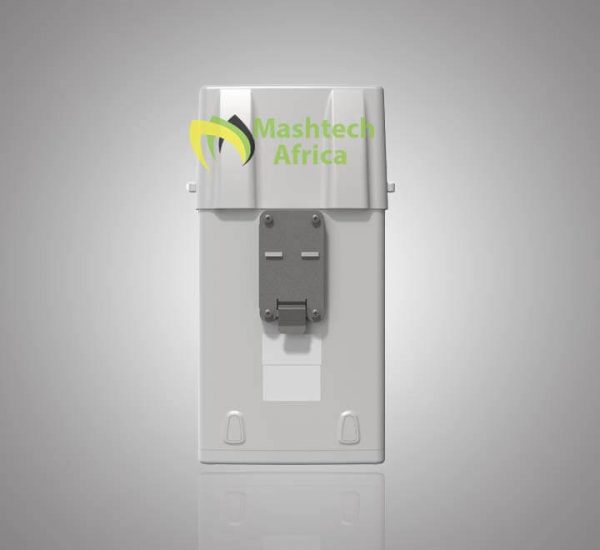

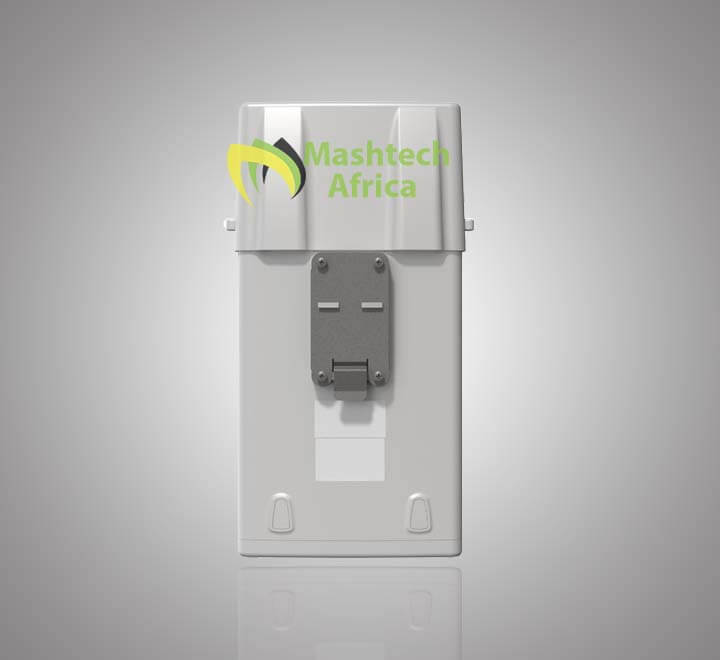

- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
SKU: RB912UAG-2HPnD-OUT
SKU: RB912UAG-2HPnD-OUT -
cAP, Mikrotik Access Points
Mikrotik cAP AC RBcAPGi-5acD2nD
- Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support, and IPsec hardware encryption support
- The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual-band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards and will provide coverage in 360 degrees around it.
- Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. The device supports IPsec hardware acceleration too.- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).- cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz, and 5725-5835MHz frequencies. This lock can not be removed.
SKU: RBcAPGi-5acD2nD
SKU: RBcAPGi-5acD2nD
$58.66 for 3 item(s)
Specifications
| Details | |
|---|---|
| Product code | RB912UAG-5HPnD-OUT |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 246x135x50mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $89.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 12 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Wireless 5 GHz chip model | AR9342 |
| Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 26 | -75 |
Included parts
| Brands | MikroTik Wireless |
|---|
