-8%
cAP, Mikrotik Access Points

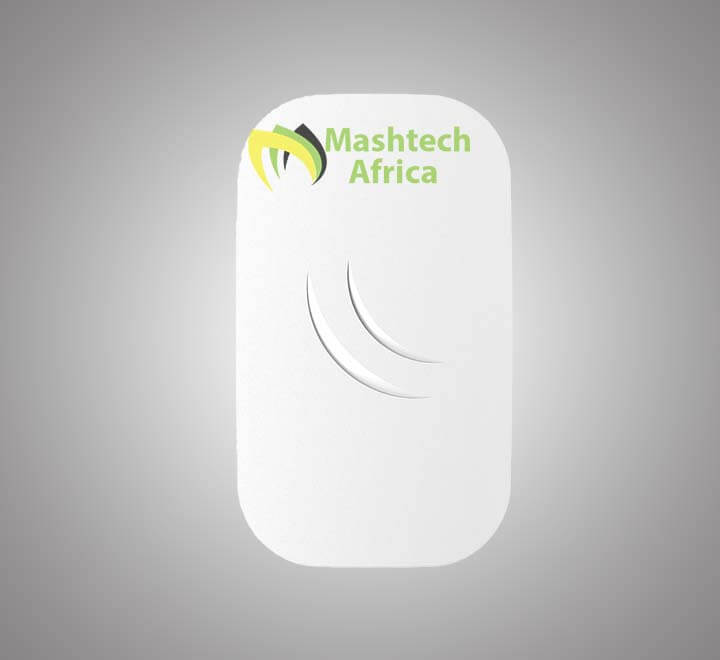

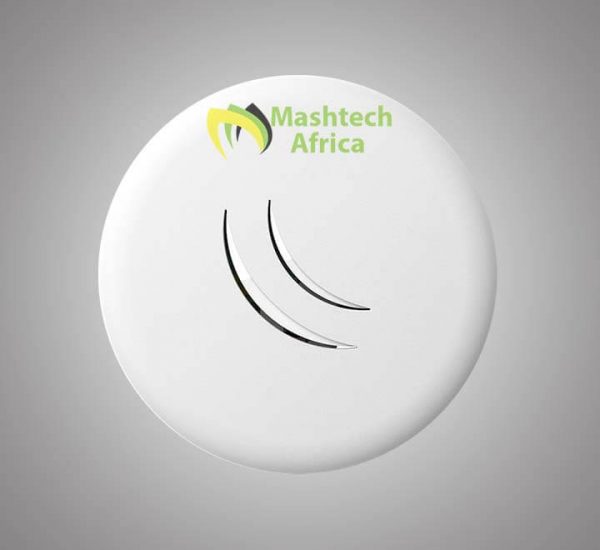

Mikrotik cAP Lite RBcAPL-2nD 2.4Ghz Access Point
Availability:
9 in stock
- Low-cost dual-chain 2.4GHz AP with wall and ceiling enclosure

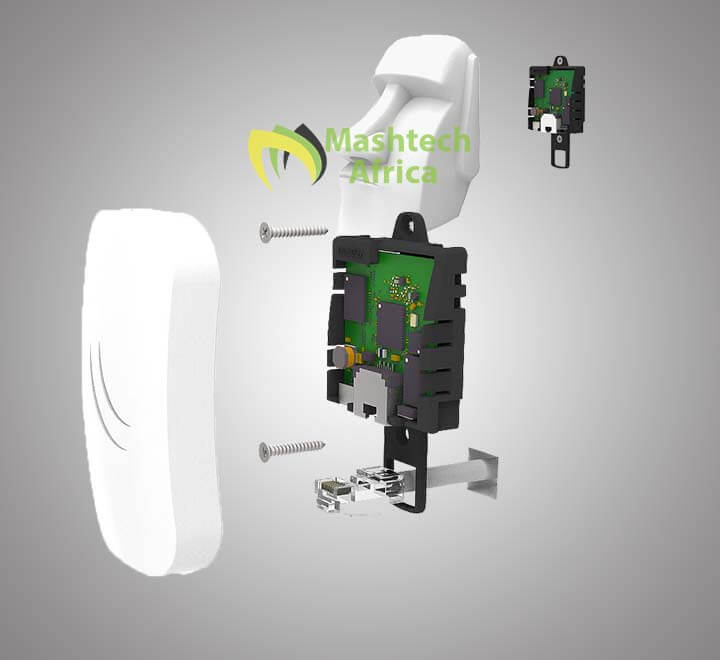

- The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls, etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer-friendly design files.
- The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand-alone access point with the full potential of RouterOS.
SKU: RBcAPL-2nD
$44.86 $48.95
9 in stock
Compare-
cAP, Mikrotik Access Points
Mikrotik cAP Lite RBcAPL-2nD 2.4Ghz Access Point
- Low-cost dual-chain 2.4GHz AP with wall and ceiling enclosure
- The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls, etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer-friendly design files.
- The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand-alone access point with the full potential of RouterOS.
SKU: RBcAPL-2nD
SKU: RBcAPL-2nD -
cAP, Mikrotik Access Points
Mikrotik cAP Ceiling Access Point RBCAP2ND
- Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support
- RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality businesses like hotels, airports, shopping malls, etc.
- cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
- Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter, and even the screws and screw anchors.
SKU: RBCAP2ND
SKU: RBCAP2ND -
hAP, Mikrotik Access Points
Mikrotik hAP Lite Access Points RB941-2nD
- Low-cost home wireless AP with dual chain 2.4GHz wireless, powered by USB
- The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
- It supports button-triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
- Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control, and many others.The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports, and a RouterOS L4 license. The USB power supply is included.
SKU: RB941-2nD
SKU: RB941-2nD
$110.12 for 3 item(s)
Specifications
| Details | |
|---|---|
| Product code | RBcAPL-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $29.00 |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Powering
| Details | |
|---|---|
| MicroUSB input Voltage | 5-5 V |
| Number of DC inputs | 2 (PoE-IN, MicroUSB) |
| Max power consumption | 4 W |
| FAN count | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 10-60 V |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Included parts
| Brands | MikroTik Wireless |
|---|
Based on 0 reviews
Be the first to review “Mikrotik cAP Lite RBcAPL-2nD 2.4Ghz Access Point”
Related products
-
Mikrotik Access Points, MikroTik Wireless Systems for Home/Office
MikroTik RouterBOARD RB951Ui-2HnD Wireless SOHO Access Point
-9%
Mikrotik Access Points, MikroTik Wireless Systems for Home/OfficeMikroTik RouterBOARD RB951Ui-2HnD Wireless SOHO Access Point
- 2.4GHz AP with five Ethernet ports and PoE output on port 5. It has a 600MHz CPU, 128MB RAM and a USB port.
- The Mikrotik RB951UI-2HND Wireless Router is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port, and a high-power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
- It has a 600MHz CPU,128MB of RAM, and PoE output function for port #5 – it can power other PoE-capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.
SKU: RB951UI-2HND
SKU: RB951UI-2HND -
LoRa, wAP

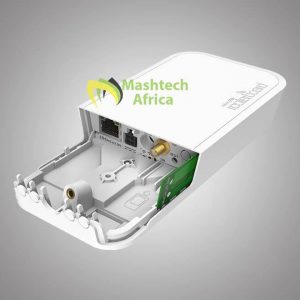

MikroTik LoRa wAP LR8 kit RBwAPR-2nD&R11e-LR8
