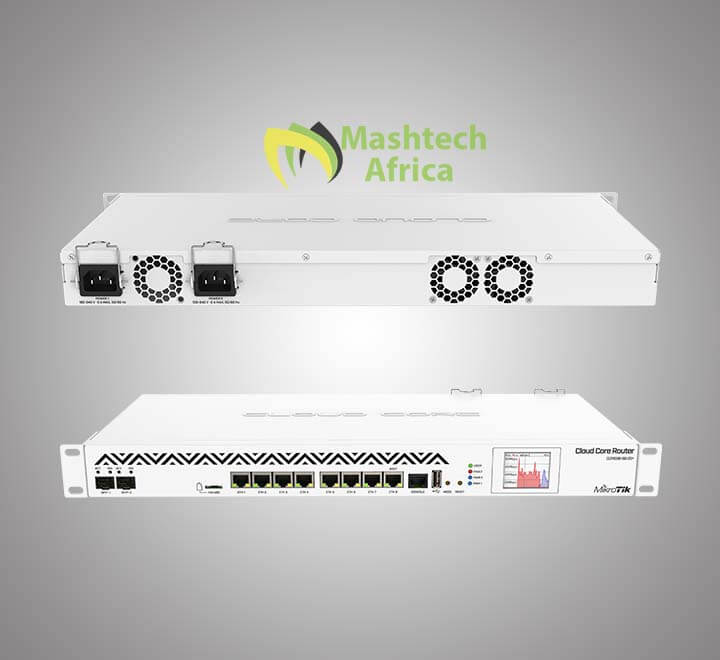

Mikrotik Cloud Core Router CCR1036-8G-2S+
8 in stock
- 1U rackmount case
- 8x Gigabit ports
- 2x SFP+ ports
- Color touchscreen LCD
- Ports directly connected to CPU
- 36 core CPU
- 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- 8 mpps standard forwarding
- 41.5 mpps fastpath forwarding (wire speed for all ports)
- Up to 28Gbit/s throughput
The Mikrotik Cloudcore Router CCR1036-8G-2S+ has now become even better – the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model and delivers the same performance.
The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, and the serial console port.
The new version of CCR1036-8G-2S+ has onboard 4GB of RAM, onboard M.2 PCIe 4x slot, full-size USB slot, and dual PSU for redundancy!
Supports both SFP (1.25G) and SFP+ (10G) module
SKU: CCR1036-8G-2S+
$894.67
8 in stock
Compare-
Cloud Core Router
Mikrotik Cloud Core Router CCR1036-8G-2S+
- 1U rackmount case
- 8x Gigabit ports
- 2x SFP+ ports
- Color touchscreen LCD
- Ports directly connected to CPU
- 36 core CPU
- 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- 8 mpps standard forwarding
- 41.5 mpps fastpath forwarding (wire speed for all ports)
- Up to 28Gbit/s throughput
The Mikrotik Cloudcore Router CCR1036-8G-2S+ has now become even better – the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model and delivers the same performance.
The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, and the serial console port.
The new version of CCR1036-8G-2S+ has onboard 4GB of RAM, onboard M.2 PCIe 4x slot, full-size USB slot, and dual PSU for redundancy!Supports both SFP (1.25G) and SFP+ (10G) module
SKU: CCR1036-8G-2S+
SKU: CCR1036-8G-2S+ -
Cloud Core Router
MikroTik Cloud Core Router CCR1036-8G-2S+EM
- 1U rackmount case
- 8x Gigabit ports
- 2x SFP+ ports
- Color touchscreen LCD
- Ports directly connected to CPU
- 16GB (2x8GB) RAM
- 36 core CPU
- 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- 8 mpps standard forwarding
- 41.5 mpps fastpath forwarding (wire speed for all ports)
- Up to 28Gbit/s throughput
MikroTik Cloudcore Router CCR1036-8G-2S+EM fastest router has now become even better – the new CCR1036-8G-2S+EM now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as Mikrotik other CCR1036 model and delivers the same performance, but now, ten gigabit links are possible.
The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, a serial console cable, and a USB port. The CCR1036-8G-2S+EM has two SODIMM slots, by default it is shipped with 16GB of RAM.
SKU: CCR1036-8G-2S+EM
SKU: CCR1036-8G-2S+EM
Our fastest router has now become even better – the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model and delivers the same performance, but now, ten gigabit links are possible.
The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, a serial console cable and a USB port.
The CCR1036-8G-2S+ has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). Also available now, the EM model with 16GB of RAM!
| Brands | MikroTik Wireless |
|---|
Specifications
| Details | |
|---|---|
| Product code | CCR1036-8G-2S+ |
| Architecture | TILE |
| CPU | TLR4-03680 |
| CPU core count | 36 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 193 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 4 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $1095.00 |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 73 W |
| FAN count | 2 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
