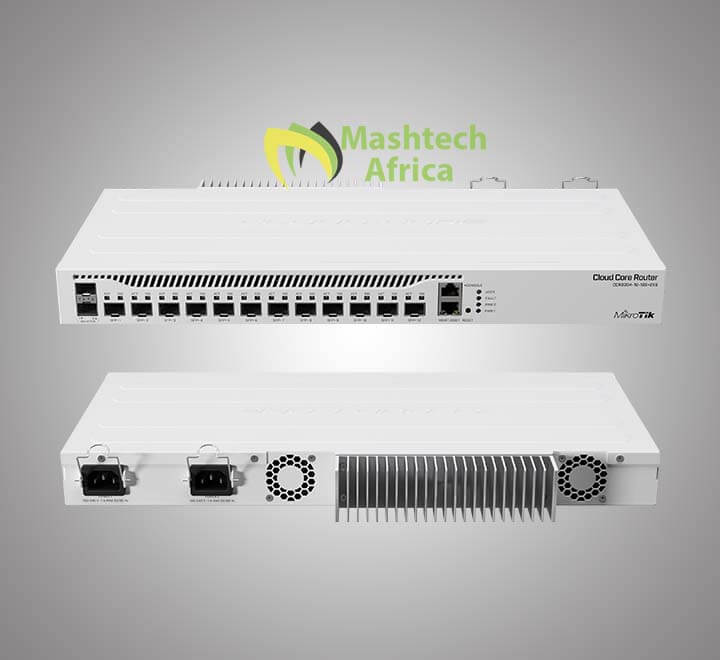

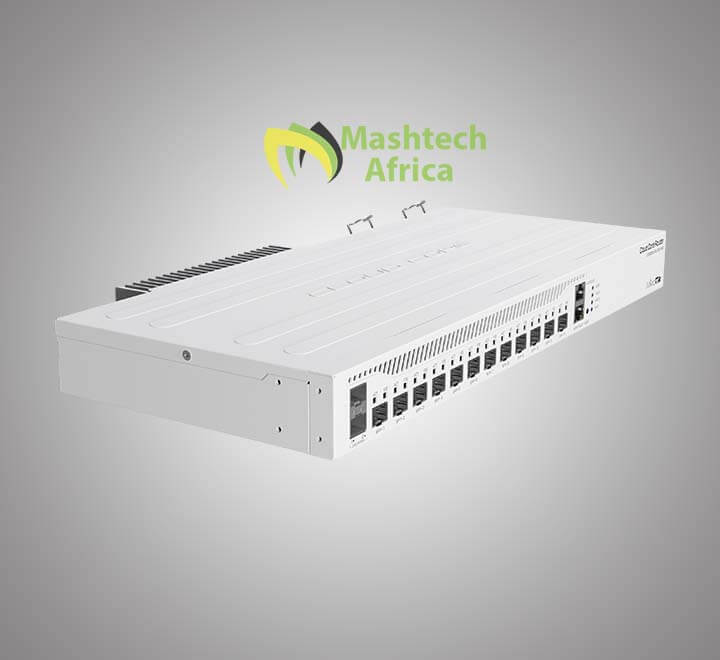

Mikrotik Cloud Core Router CCR2004-1G-12S+2XS
5 in stock
- The Connectivity Router – your best companion when it comes to SFP
- SFP+ and SFP28 management! 1,
- 10 and 25 Gbps ports in a single device to make your life easier.
The Mikrotik Cloudcore Router CCR2004-1G-12S+2XS is the router with the most powerful single-core performance so far. It provides incredible results in the single tunnel (up to 3.4 Gbps) and BGP feed processing.
SKU: CCR2004-1G-12S+2XS
$455.46 $463.60
5 in stock
Compare-
Cloud Core Router
Mikrotik Cloud Core Router CCR2004-1G-12S+2XS
- The Connectivity Router – your best companion when it comes to SFP
- SFP+ and SFP28 management! 1,
- 10 and 25 Gbps ports in a single device to make your life easier.
The Mikrotik Cloudcore Router CCR2004-1G-12S+2XS is the router with the most powerful single-core performance so far. It provides incredible results in the single tunnel (up to 3.4 Gbps) and BGP feed processing.
SKU: CCR2004-1G-12S+2XS
SKU: CCR2004-1G-12S+2XS -
Cloud Core Router
Mikrotik Cloud Core Router CCR1072-1G-8S+
- 1U rackmount
- 1x Gigabit Ethernet
- 8xSFP+ cages
- LCD, 72 cores x 1GHz CPU
- 16GB RAM
- up to 120 million packets per second
- 80Gbps throughput, RouterOS L6
The Mikrotik Cloudcore Router CCR1072-1G-8S+ comes equipped with installed RouterOS L6, 16GB of built-in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, micro USB, regular size USB, microSD, and 2x M.2 slots for additional storage.
Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.
SKU: CCR1072-1G-8S+
SKU: CCR1072-1G-8S+
The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.
CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.
Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
MikroTik’s CCR2004-1G-12S+2XS is a handy Cloud Core router that features 12 x 10G SFP+ and 2 x 25G SFP28 ports. Offering the most powerful single-core performance to date, the CCR2004-1G-12S+ provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.
Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal.
| Brands | MikroTik Wireless |
|---|
Specifications
| Details | |
|---|---|
| Product code | CCR2004-1G-12S+2XS |
| Architecture | ARM 64bit |
| CPU | AL32400 |
| CPU core count | 4 |
| CPU nominal frequency | 1700 MHz |
| Dimensions | 443 x 224 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 4 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $595.00 |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 49 W |
| Max power consumption without attachments | 32 W |
| FAN count | 2 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 12 |
| Number of 25G SFP28 ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
Included parts
