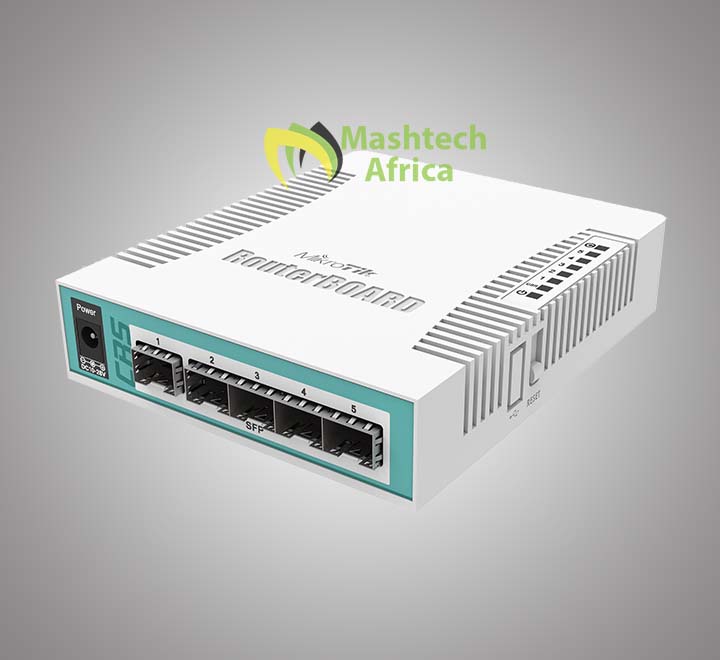

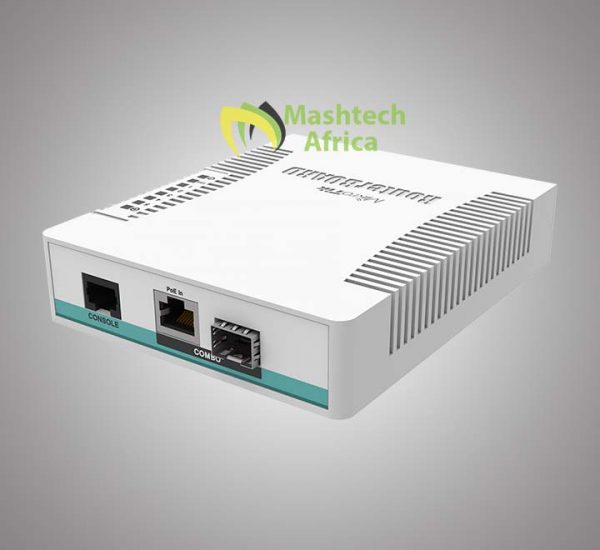

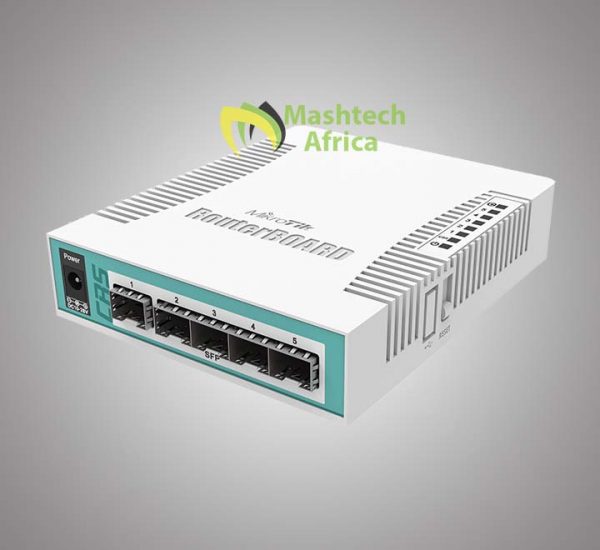

Mikrotik Cloud Router Switch CRS106-1C-5S
3 in stock
The Mikrotik Cloud Router Switch CRS106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.
SKU: CRS106-1C-5S
$69.13 $71.57
3 in stock
Compare-
Cloud Router Switches
Mikrotik Cloud Router Switch CRS106-1C-5S
The Mikrotik Cloud Router Switch CRS106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.
SKU: CRS106-1C-5S
SKU: CRS106-1C-5S -
Cloud Router Switches
Mikrotik Cloud Router Switch CRS309-1G-8S+IN
The Mikrotik Cloud Router Switch CRS309-1G-8S+IN is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit modules in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has a dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
SKU: CRS309-1G-8S+INSKU: CRS309-1G-8S+IN
Specifications
| Details | |
|---|---|
| Product code | CRS106-1C-5S |
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Dimensions | 114 x 137 x 29mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $59.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 11 W |
| FAN count | Passive |
Ethernet
| Details | |
|---|---|
| Ethernet Combo ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 5 |
| Brands | MikroTik Wireless |
|---|
